Diagram 141/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

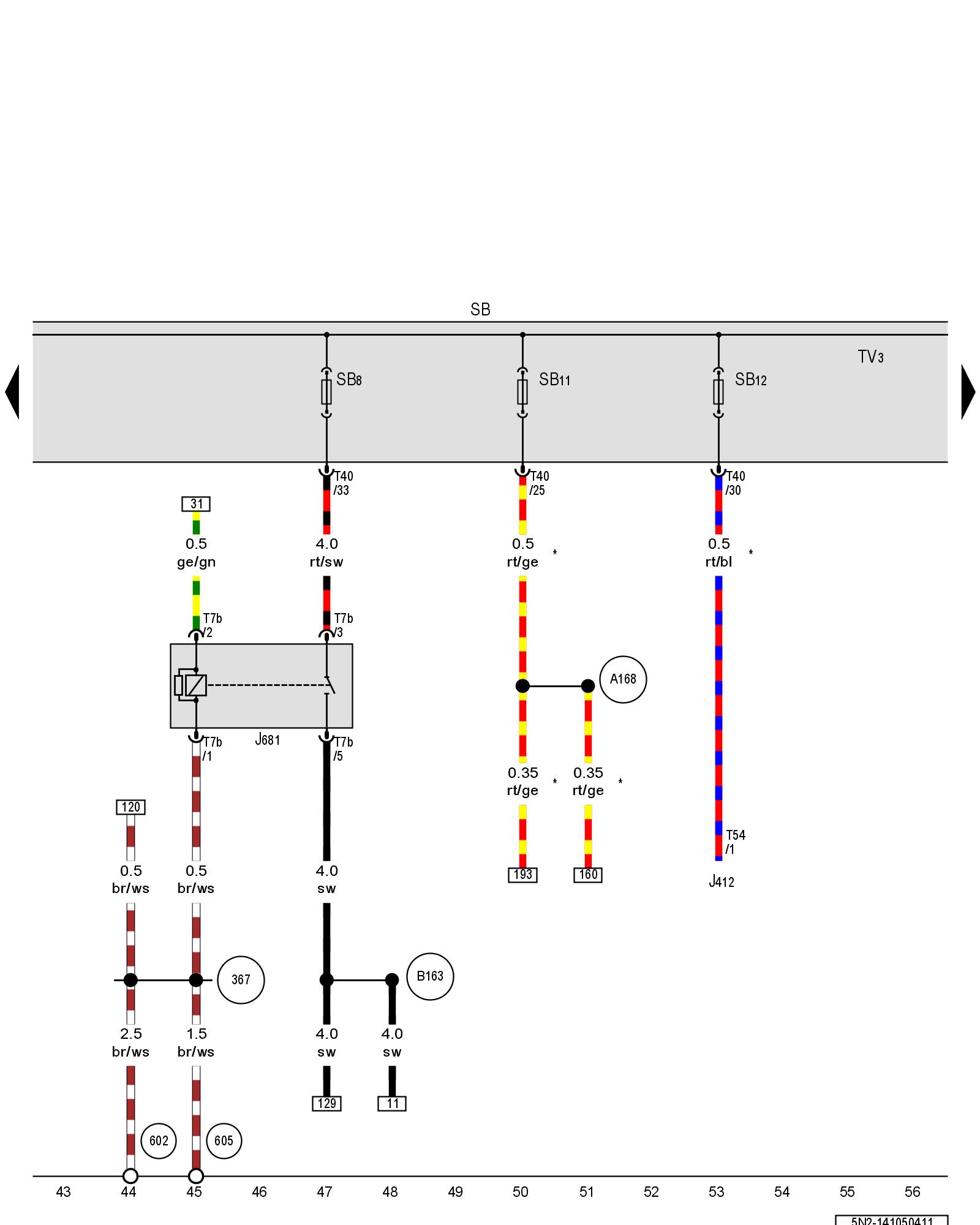

Terminal 15 power supply relay 2, Fuse panel B, Terminal 30a wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Cell phone operating electronics control module Control Modules in Pass Compartment

J681 - Terminal 15 power supply relay 2 Relay Carrier Overview

SB - Fuse panel B Overview Of Fuses

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses

SB11 - Fuse 11 (on fuse panel B) Overview Of Fuses

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses

T7b - 7-pin connector

TV3 - Terminal 30a wire junction

T40 - 40-pin connector

T54 - 54-pin connector

(367) - Ground connection 2 (in main wiring harness)

(602) - Ground connection in left front footwell Overview Of Ground Connections in Rear Seats

(605) - Ground connection on upper steering column Overview Of Ground Connections in Rear Seats

(A168) - Positive connection 4 (30a) (in instrument panel wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

* - Only for vehicles without Start/Stop system
