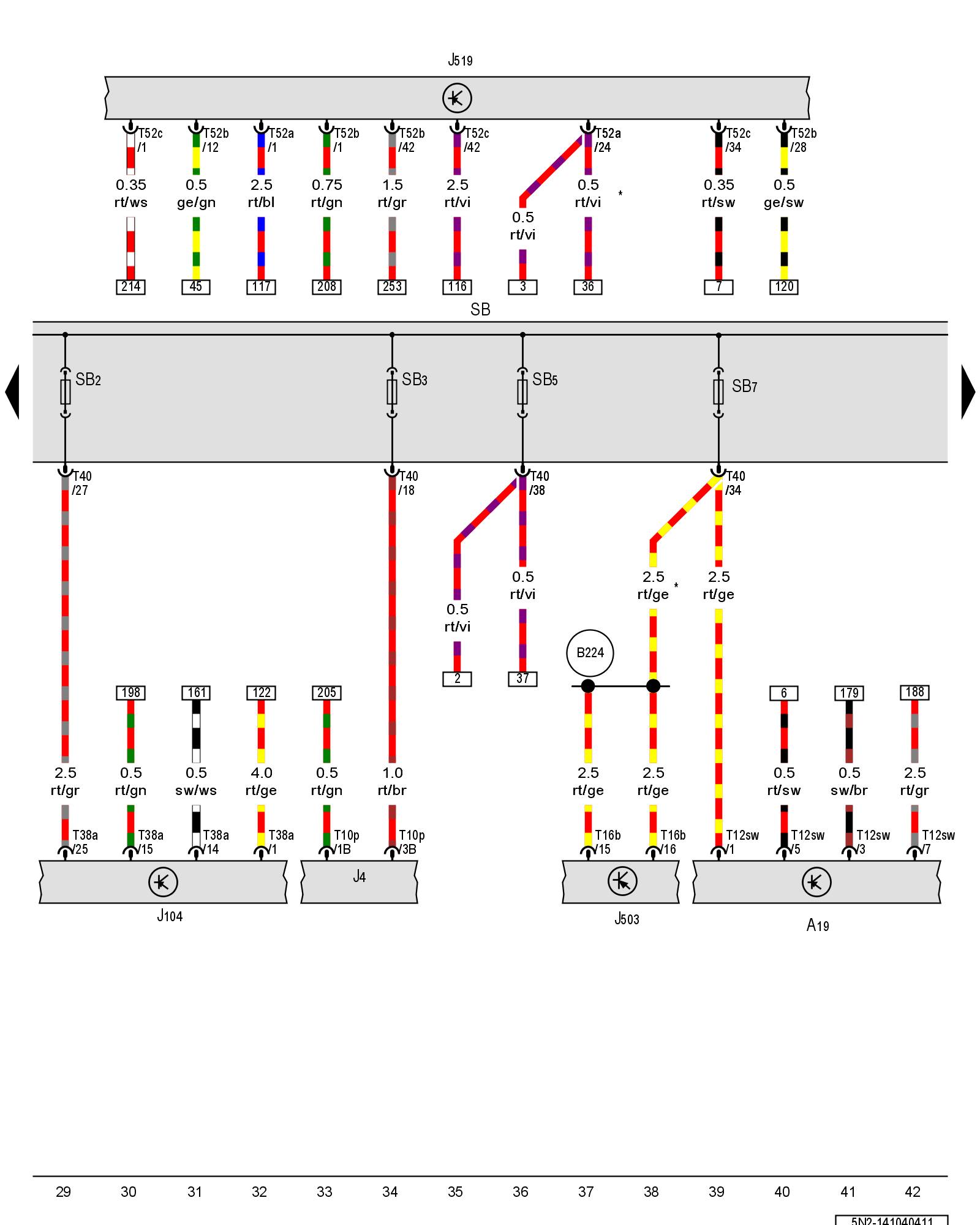

Diagram 141/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Voltage converter, Vehicle electrical system control module, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A19 - Voltage converter Control Modules in Pass Compartment

J4 - Dual tone horn relay

J104 - ABS control module Control Modules in Engine Compartment [1][2]Diagrams

J503 - Radio/navigation display unit control module Control Modules in Pass Compartment Radio Systems Overview

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

SB - Fuse panel B Overview Of Fuses

SB2 - Fuse 2 (on fuse panel B) Overview Of Fuses

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

SB5 - Fuse 5 (on fuse panel B) Overview Of Fuses

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses

T10p - 10-pin connector

T12sw - 12-pin connector

T16b - 16-pin connector

T38a - 38-pin connector

T40 - 40-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(B224) - Radio connection 1 (in interior wiring harness)

* - Only for vehicles without Start/Stop system
