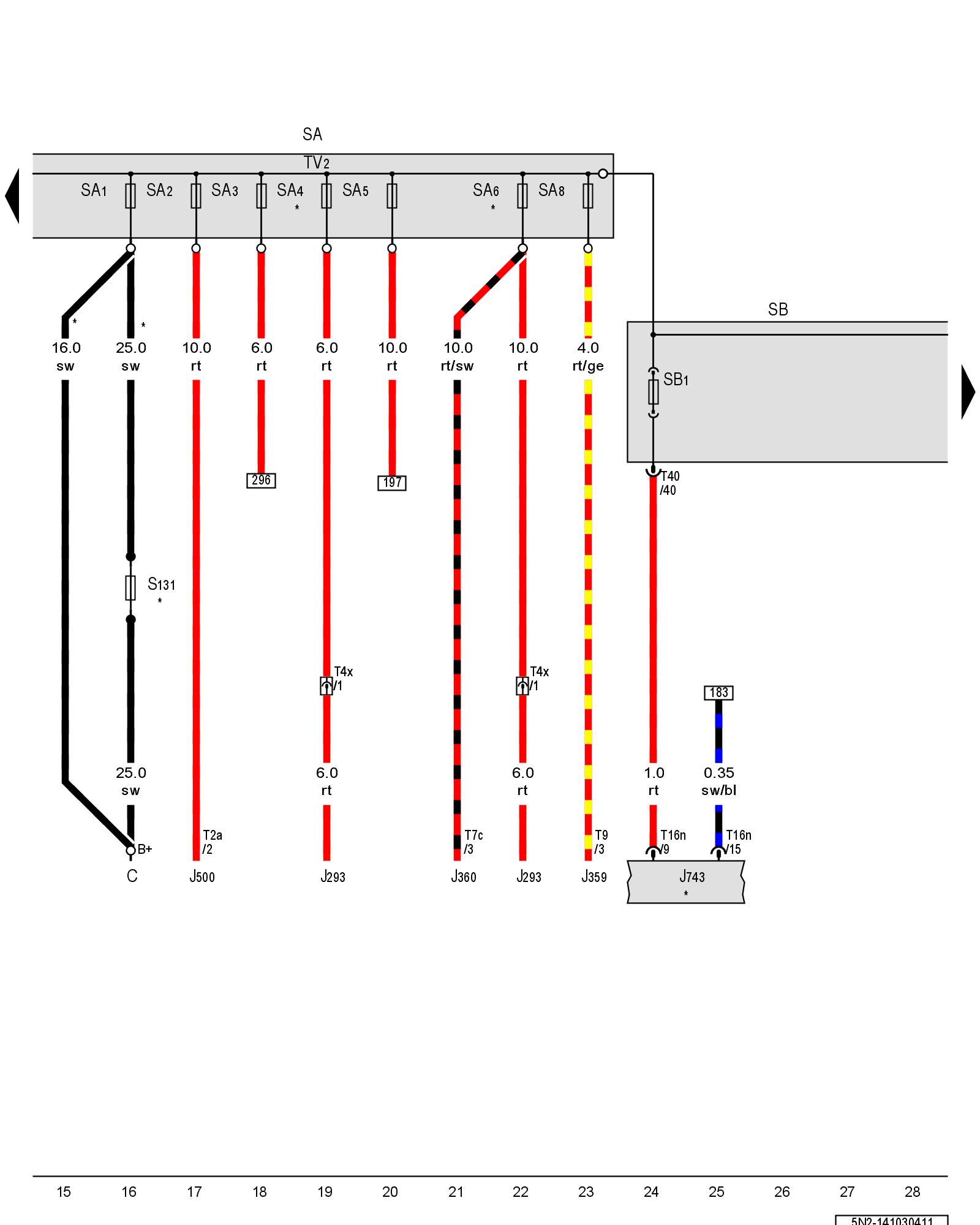

Diagram 141/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel A, Fuse panel B, Terminal 30 wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C - Generator

J293 - Coolant fan control module Control Modules in Engine Compartment

J359 - Low heat output relay Relay Carrier Overview

J360 - High heat output relay Relay Carrier Overview

J500 - Power steering control module Control Modules in Engine Compartment [1][2]Diagrams

J743 - DSG transmission Mechatronic

SA - Fuse panel A Overview Of Fuses

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses

SB1 - Fuse 1 (on fuse panel B) Overview Of Fuses

SA2 - Fuse 2 (on fuse panel A) Overview Of Fuses

SA3 - Fuse 3 (on fuse panel A) Overview Of Fuses

SA4 - Fuse 4 (on fuse panel A) Overview Of Fuses

SA5 - Fuse 5 (on fuse panel A) Overview Of Fuses

SA6 - Fuse 6 (on fuse panel A) Overview Of Fuses

SA8 - Fuse 8 (on fuse panel A) Overview Of Fuses

S131 - Safety fuse 1, in the alternator wire

SB - Fuse panel B Overview Of Fuses

T2a - Double connector

T4x - 4-pin connector Component Locations

T7c - 7-pin connector

T16n - 16-pin connector

TV2 - Terminal 30 wire junction

T9 - 9-pin connector

T40 - 40-pin connector

* - Depending on equipment
