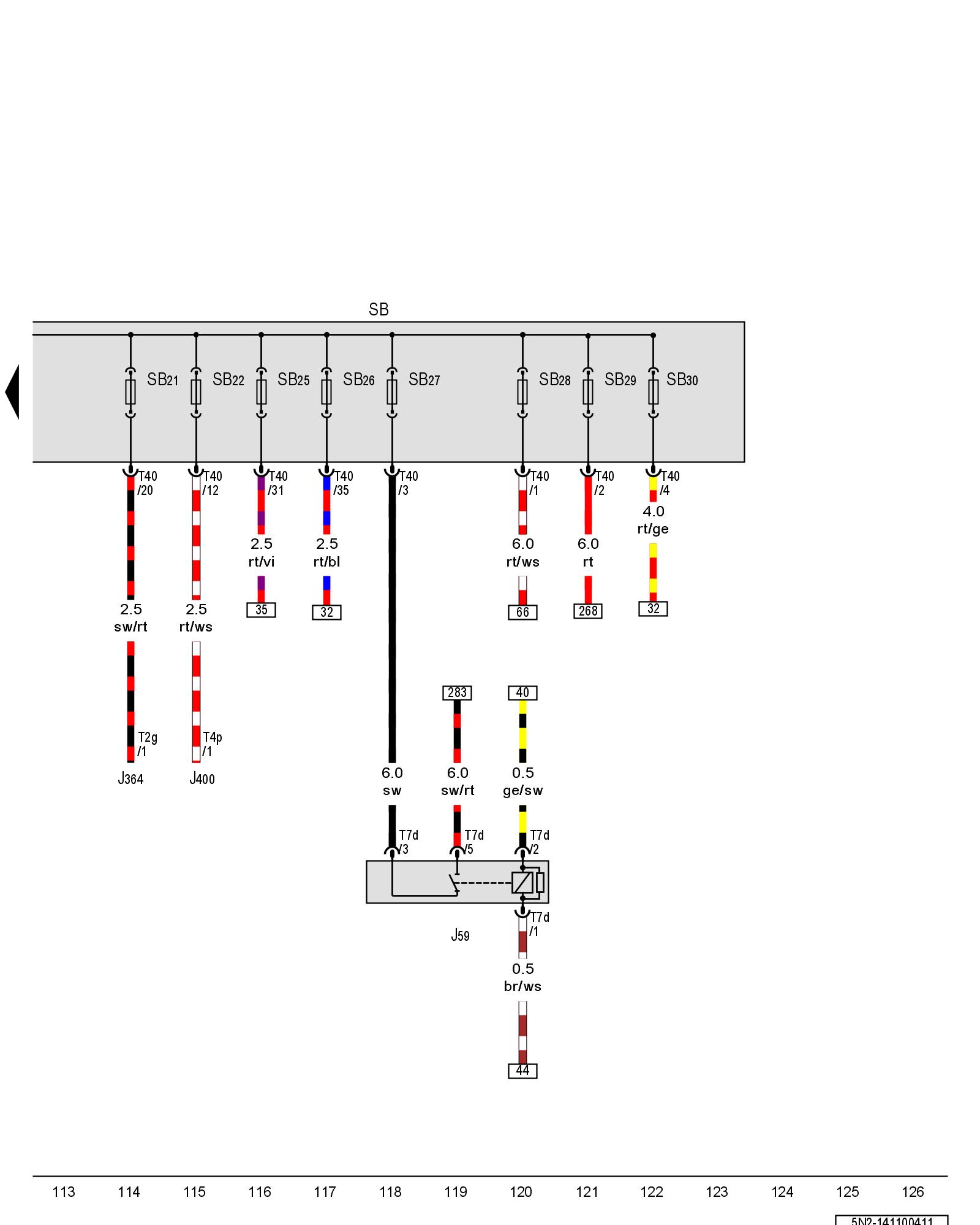

Diagram 141/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Load reduction relay, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J59 - Load reduction relay Relay Carrier Overview

J364 - Auxiliary heater control module Control Modules in Engine Compartment

J400 - Wiper motor control module Control Modules in Engine Compartment

SB - Fuse panel B Overview Of Fuses

SB21 - Fuse 21 (on fuse panel B) Overview Of Fuses

SB22 - Fuse 22 (on fuse panel B) Overview Of Fuses

SB25 - Fuse 25 (on fuse panel B) Overview Of Fuses

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

SB27 - Fuse 27 (on fuse panel B) Overview Of Fuses

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

T2g - Double connector

T4p - 4-pin connector

T7d - 7-pin connector

T40 - 40-pin connector
