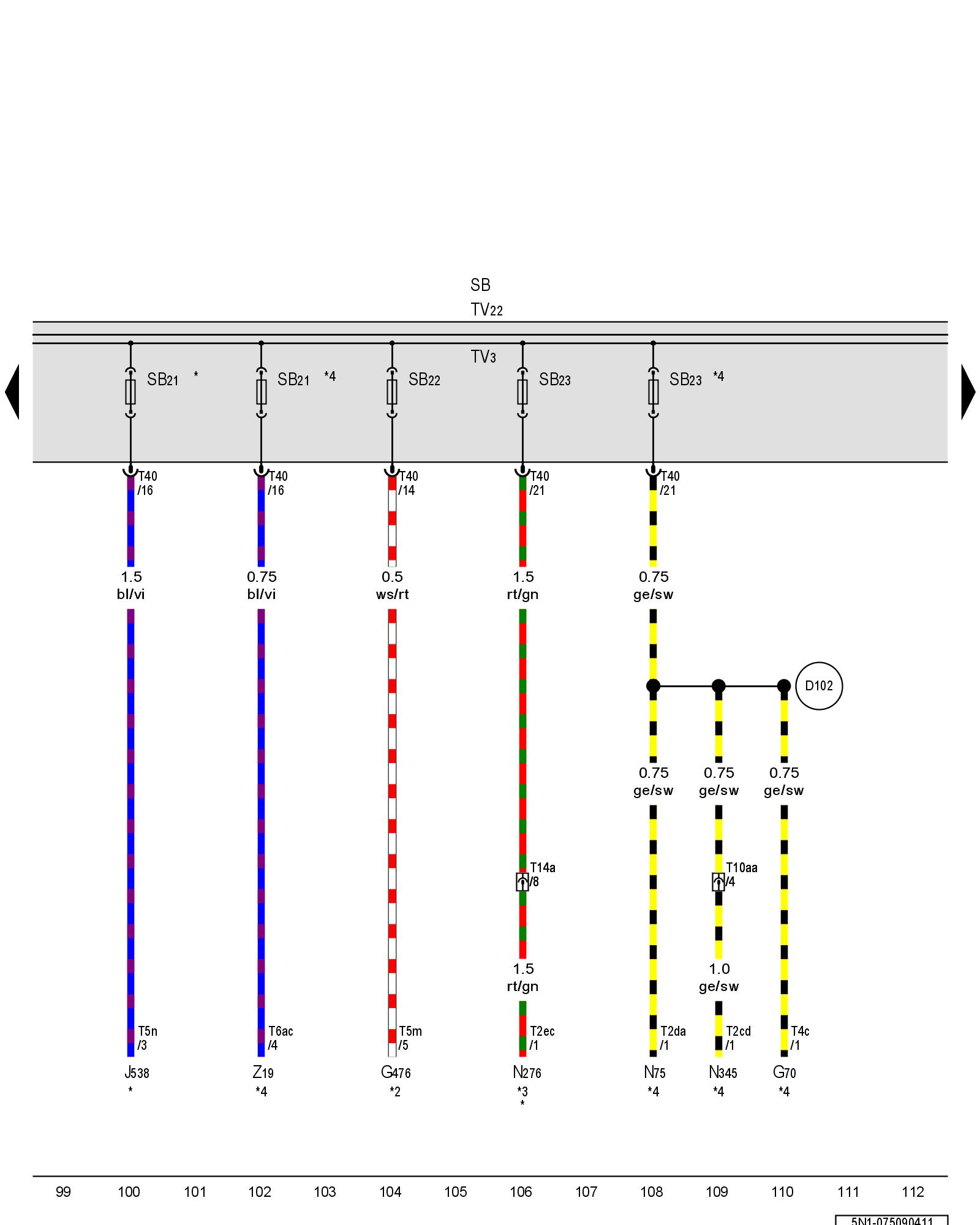

Diagram 75/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel B, Terminal 30a wire junction, Terminal 30 wire junction 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G70 - Mass airflow sensor Engine Management System [1][2]Air Flow Meter/Sensor

G476 - Clutch position sensor Locations [1][2]Clutch Pedal Position Sensor / Switch

J538 - Fuel pump control module Control Modules in Luggage Comp. Fuel Pump Control Module -J538-

N75 - Wastegate bypass regulator valve Engine Management System [1][2]Diagrams

N276 - Fuel pressure regulator valve Engine Management System Diagrams

N345 - EGR cooler switch-over valve

SB - Fuse panel B Overview Of Fuses

SB21 - Fuse 21 (on fuse panel B) Overview Of Fuses

SB22 - Fuse 22 (on fuse panel B) Overview Of Fuses

SB23 - Fuse 23 (on fuse panel B) Overview Of Fuses

T2cd - Double connector

T2da - Double connector

T2ec - Double connector

T4c - 4-pin connector

T5m - 5-pin connector

T5n - 5-pin connector

T6ac - 6-pin connector

T10aa - 10-pin connector Component Locations

T14a - 14-pin connector Component Locations

TV3 - Terminal 30a wire junction

TV22 - Terminal 30 wire junction 2

T40 - 40-pin connector

Z19 - Oxygen sensor heater Locations Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

(D102) - Connection (2) (in engine compartment wiring harness)

* - Only for vehicles with gasoline engine

*2 - Only for vehicles with a manual transmission

*3 - Depending on equipment

*4 - Only for vehicles with diesel engines

Previous Diagram 75/8 (Tracks 85-98)

Next Diagram 75/10 (Tracks 113-126)
