Diagram 118/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

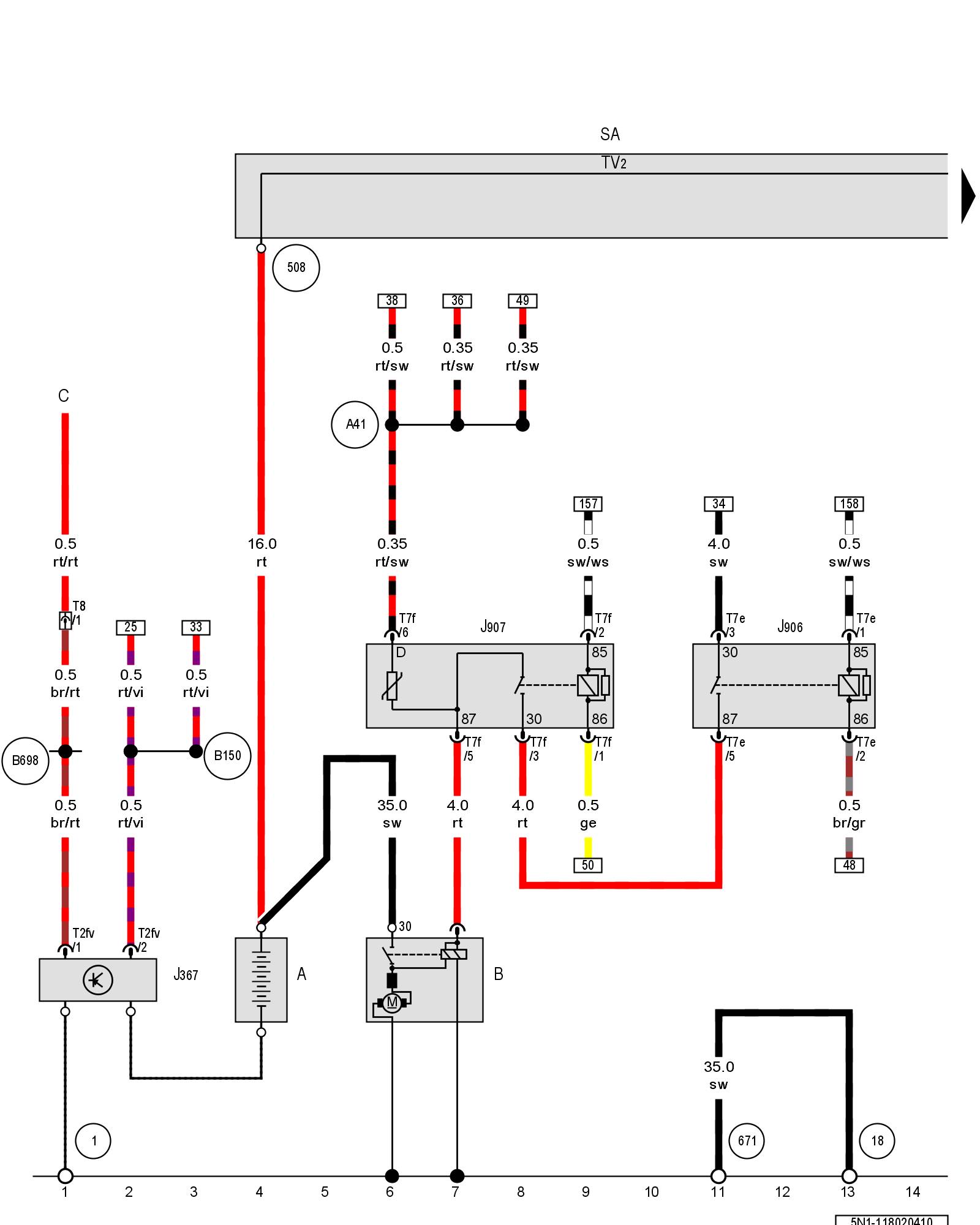

Battery, Starter, Battery monitoring control module, Starter relay 1, Starter relay 2, Fuse panel A, Terminal 30 wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

J367 - Battery monitoring control module

J906 - Starter relay 1 Relay Carrier Overview

J907 - Starter relay 2 Relay Carrier Overview

SA - Fuse panel A Overview Of Fuses

T2fv - Double connector

T7e - 7-pin connector

T7f - 7-pin connector

TV2 - Terminal 30 wire junction

T8 - 8-pin connector Component Locations

(1) - Ground strap, battery to body Overview Of Ground Connections in Engine Compartment

(18) - Ground connection on engine block Overview Of Ground Connections in Engine Compartment

(508) - Terminal 30 threaded connection (on E-box)

(671) - Ground connection 1 on left front longitudinal member Overview Of Ground Connections in Engine Compartment

(A41) - Positive connection (50) (in instrument panel wiring harness)

(B150) - Positive connection 2 (30a) (in interior wiring harness)

(B698) - LIN bus connection 3 (in main wiring harness)

Next Diagram 118/3 (Tracks 15-28)
