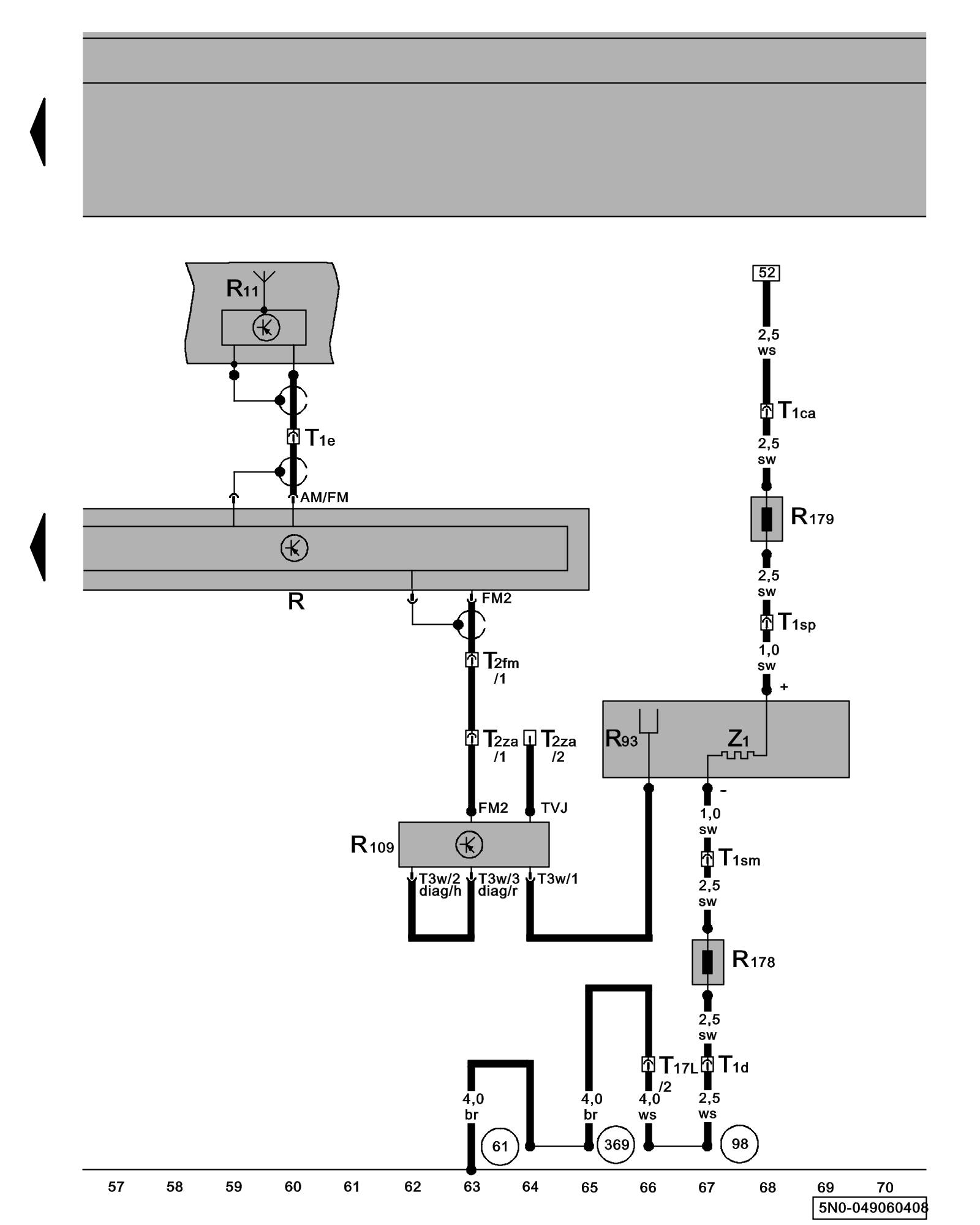

Diagram 49/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Antennas, Antenna Module, Heated Rear Window, FM Frequency Filter, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Control Modules in Pass Compartment

R11 - Antenna Radio Systems Overview

R93 - Radio Antenna 2 Radio Systems Overview

R109 - Right Antenna Module (impedance transformer)

R178 - FM Frequency Filter (in negative wire) Radio Systems Overview

R179 - FM Frequency Filter (in positive wire) Radio Systems Overview

T1ca - Single Connector

T1d - Single Connector

T1e - Single Connector Component Locations

T1sm - Single Connector

T1sp - Single Connector

T2fm - Double Connector Component Locations

T2za - Double Connector

T3w - 3-Pin Connector

T17L - 17-Pin Connector, black Component Locations

Z1 - Heated Rear Window

(61) - Ground Connection (on left C-pillar) Overview Of Ground Connections in Luggage Comp.

(98) - Ground Connection (in rear lid wiring harness)

(369) - Ground Connection 4 (in main wiring harness)
