Door Sill Side Trim

Door Sill Side Trim

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Remove the backrest adjustment wheel. Refer to => [ Backrest Adjusting Wheel ] Backrest Adjusting Wheel

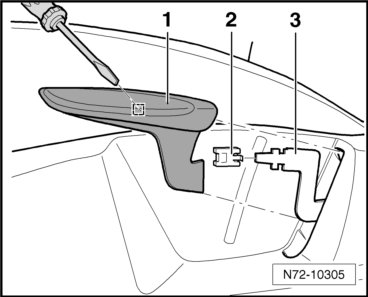

- Pull the height adjustment handle - 1 - upward.






- Using a small screwdriver, push the metal tab on the mounting clamp - 2 - located on the inside of the height adjustment handle, toward the door sill and pull the handle off the adjustment lever - 3 -.

• For the sake of illustration, securing clip is depicted as removed in the illustration.

- Remove the securing clip - 1 - from the adjusting lever - 3 -.

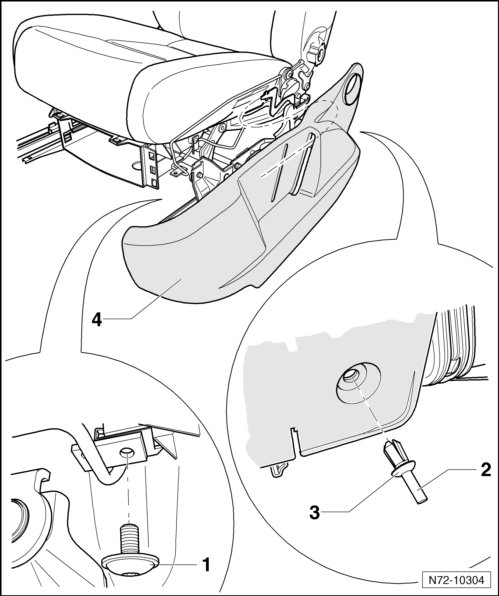

- Remove bolt - 1 - (2 Nm).

- Press the clamping pin - 2 - inward and remove it from the expanding clip - 3 -.

- Remove the spreader clip.

- Remove trim - 4 - in direction of travel out of mounts in seat frame.






Installation

- Install in reverse order of removal.
