Rear Motor Support and Sun Shade Cable

Rear Motor Support and Sun Shade Cable

Removing






- Remove the headliner.

- Remove the sun shade motor. Refer to => [ Sun Shade Motor ] Sun Shade Motor.

- Remove the sun shade. Refer to => [ Sun Shade ] Sun Shade.

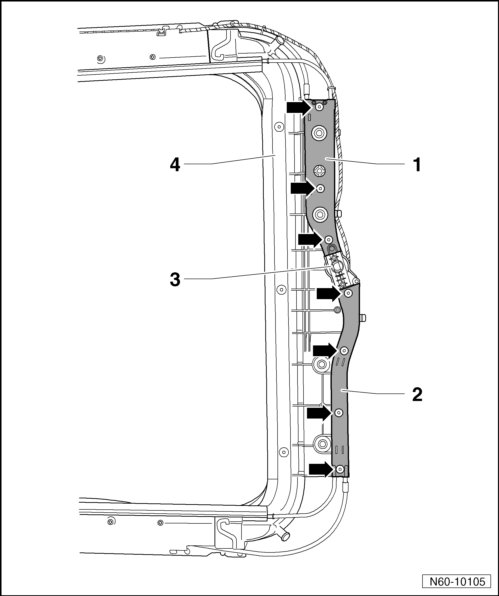

- Remove the screws - arrows - for the cable covers - 1 - and - 2 - (2 Nm).

- Remove the cable covers - 1 - and - 2 - from the rear part - 4 -.

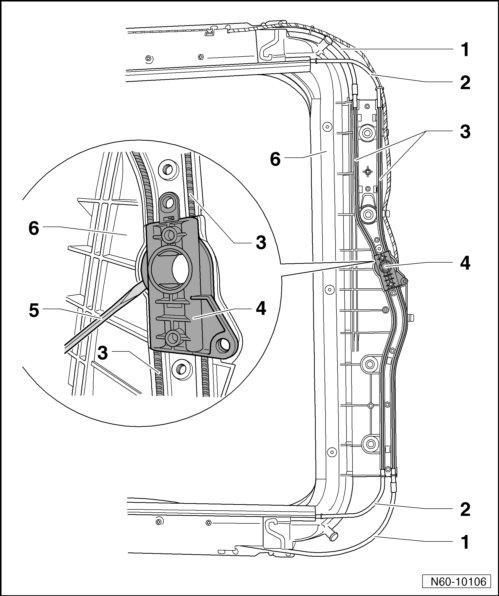

- Disconnect the sun shade cables - 3 - from the guide tubes - 1 - and the motor support - 4 -.

- Pry the motor support - 4 - out using a suitable screwdriver - 5 - from the rear part - 6 -.

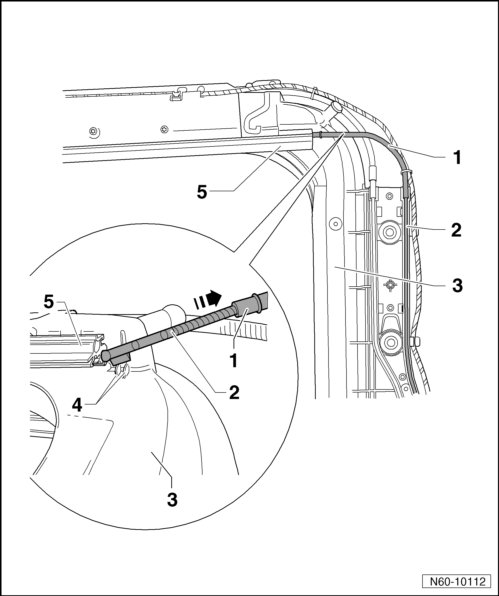

- Remove the guide tube - 1 - from the mounting bracket - 4 - in the rear part - 3 -.

- Remove the cable - 2 - from sun shade rail - 5 -.

Installation

To install, perform the steps used for removal in reverse order.

• Do not lubricate the sun shade slide cables and motor support.

- Install the sun shade.

- Install the sun shade motor.

- Install headliner.

- After completing all the work, perform a panorama sun roof adaptation. Refer to => [ Adaptation Panorama Sunroof ] Adaptation Panorama Sunroof.
