Rear Lid, Rear Lid Gasket

Rear Lid Gasket

Removing

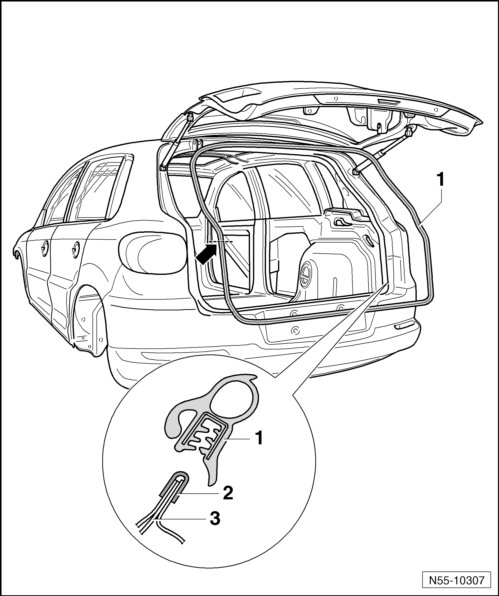

- Remove rear lid gasket - 1 - from body flange - 3 -.

Installation






Body flange - 3 - is taped in lower area with commercially available fabric adhesive tape - 2 -.

- Align rear lid seal - 1 - with vulcanized point - arrow - to center of left tail lamp.
