Operating Lever

Operating Lever

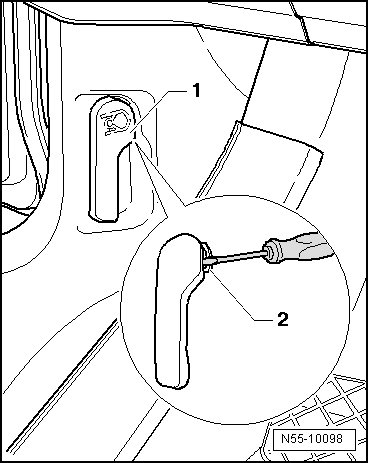

Removing

- Pull the operating lever - 1 - and unlock the hood.





- Insert a small screwdriver into the gap between the operating lever - 1 - and the clip - 2 -.

- Remove clip - 3 - from operating lever - 1 - and pull operating lever off.

Installation

- Slide clip - 2 - completely into operating lever - 1 -.





- Then push operating lever - 1 - onto mount in mounting bracket and lock the operating lever.

• Before closing the hood, check the operating lever and release function.
