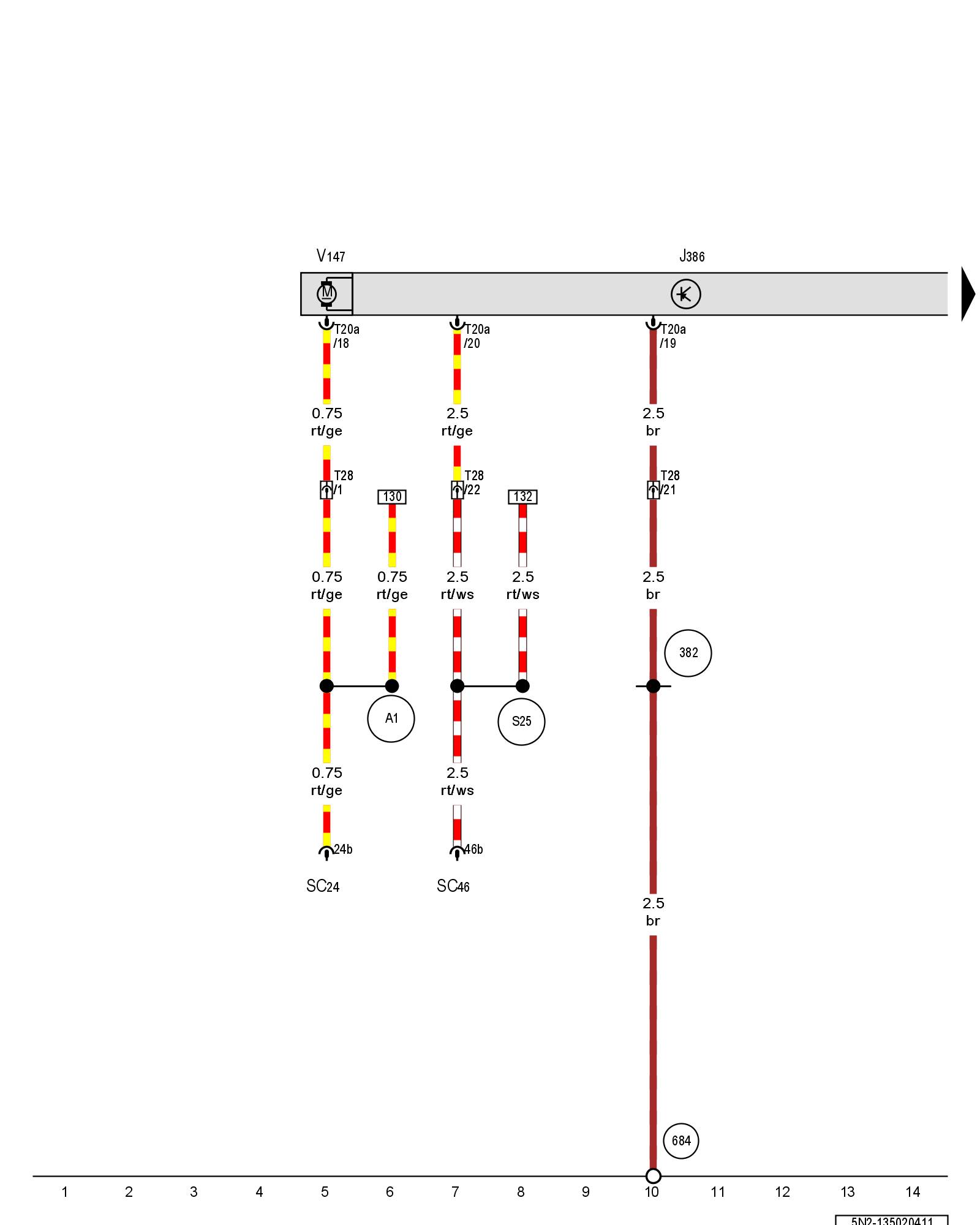

Diagram 135/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J386 - Driver door control module Control Modules in Pass Compartment

SC24 - Fuse 24 (on fuse panel C) Overview Of Fuses

SC46 - Fuse 46 (on fuse panel C) Overview Of Fuses

T20a - 20-pin connector

T28 - 28-pin connector Component Locations

V147 - Driver window regulator motor Locations

(382) - Ground connection 17 (in main wiring harness)

(684) - Ground connection on left front side member Overview Of Ground Connections in Rear Seats

(A1) - Positive connection (30a) (in instrument panel wiring harness)

(S25) - Positive connection (30a) (in central locking system wiring harness)
