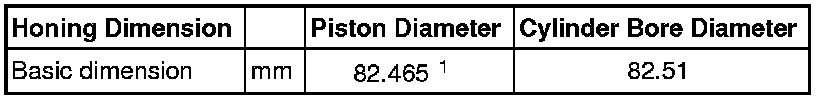

Piston and Cylinder Dimensions






Piston and Cylinder Dimensions






• 1 Measurement does not include the graphite coating (thickness = 0.02 mm). The coating wears off.
