Accelerator Pedal Module Connector, Disconnecting and Connecting

Accelerator Pedal Module Connector, Disconnecting and Connecting

• The accelerator pedal modules have connectors, which are disconnected and connected differently.

Disconnecting Connector 1K0 973 706

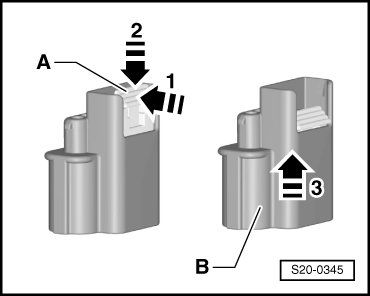

- Push the slider - A - (gray) in the - direction of arrow 1 - and then all the way down in the - direction of arrow 2 -.

- Hold the slider in this position and remove the connector housing - B - in the - direction of arrow 3 -.

The slider - A - stays in the lower position.

Connecting Connector 1K0 973 706

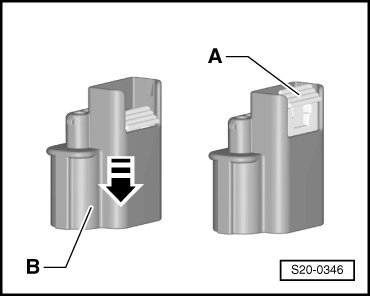

- Push the connector housing - B - in the - direction of the arrow - until the housing clicks into place.

The slider - A - automatically moves upward.

- Pull on the connector to make sure it is secure.

Disconnecting Connector 8K0 973 706

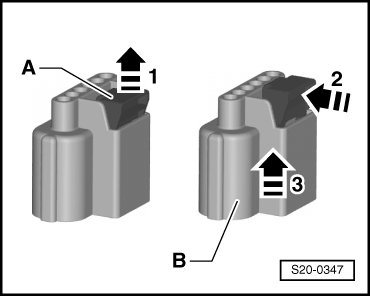

- Pull the slider - A - (red) all the upward in the - direction of arrow 1 -.

- Push the slider in the - direction of arrow 2 - and remove the connector housing - B - upward in the - direction of arrow 3 -.

The slider - A - stays in the upper position.

Connecting Connector 8K0 973 706

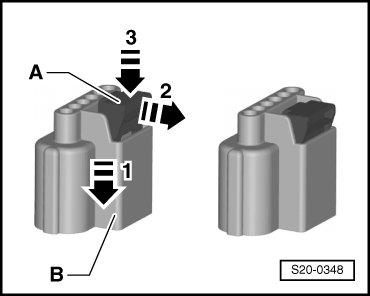

- Push the connector housing - B - all the way down in the - direction of arrow 1 -.

- Push the slider in the - direction of arrow 2 - and downward in the - direction of arrow 3 -.

The slider - A - can be pushed down only if the connector housing was pushed all the way down.

- Pull on the connector to make sure it is secure.
