Steering Wheel (Airbag)

Airbags

Steering Wheel

Removing

- Disconnect vehicle battery.

- Remove driver side airbag unit.

- Turn steering wheel into center position (wheels in straight ahead position).

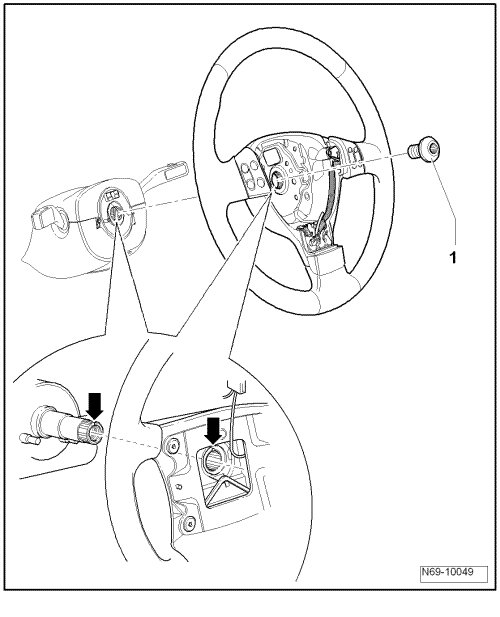

- Remove bolt - 1 - and pull steering wheel off steering column.





Installing

- Place steering wheel onto steering column.

- Center markings for steering wheel and steering column - arrows - must align.

- The coil spring connector socket and pin must be positioned in the openings provided at the base of the steering wheel.

- Fasten steering wheel with bolt - 1 -; torque is 50 Nm.
