Multifunction Steering Wheel Buttons

Multifunction Steering Wheel Buttons

Removing

• Removal of left and right buttons is the same

CAUTION!
• Special safety precautions apply to vehicles equipped with airbags General Information.

• Electrostatically discharge yourself before working on the airbag unit. This can be accomplished by touching an grounded metal object such as a water pipe, heater pipe or metal support.

CAUTION!
Before beginning repairs on electrical system

• Switch off all electrical consumers.

• Switch ignition off and remove ignition key.

• Disconnect negative ( - ) battery terminal.

- Remove driver's airbag.

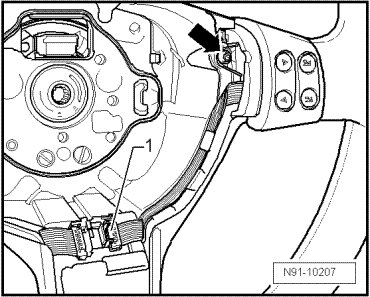

- Disconnect electrical connection - 1 -.





- Remove screw - arrow -.





- Remove button block.

Installing

Install in reverse order of removal.
