Diagram 5/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

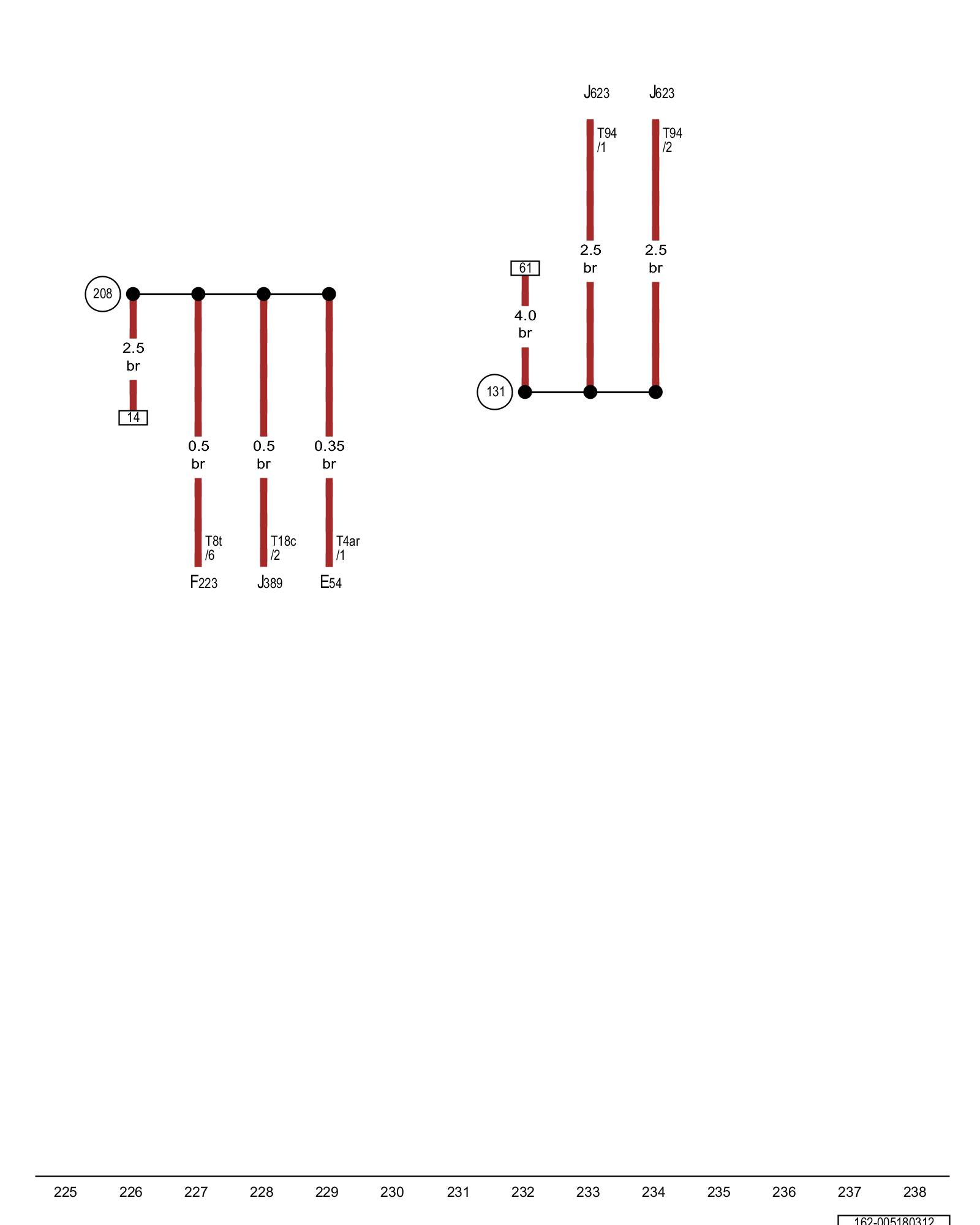

Ground connection 2 (in engine compartment wiring harness), Ground connection (in right rear door wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E54 - Right rear window switch in right rear door Rear Door Power window Button -E52- / -E54-

F223 - Right rear central locking lock unit RR Door Lock Unit -F11- / -F223- / -V215-

J389 - Right rear door control module Overview Of Control Modules Locations Rear Door Control Module -J388- / -J389-

J623 - Engine control module Overview Of Control Modules

T4ar - 4-pin connector

T8t - 8-pin connector

T18c - 18-pin connector

T94 - 94-pin connector

(131) - Ground connection 2 (in engine compartment wiring harness)

(208) - Ground connection (in right rear door wiring harness)

Previous Diagram 5/17 (Tracks 211-224)
