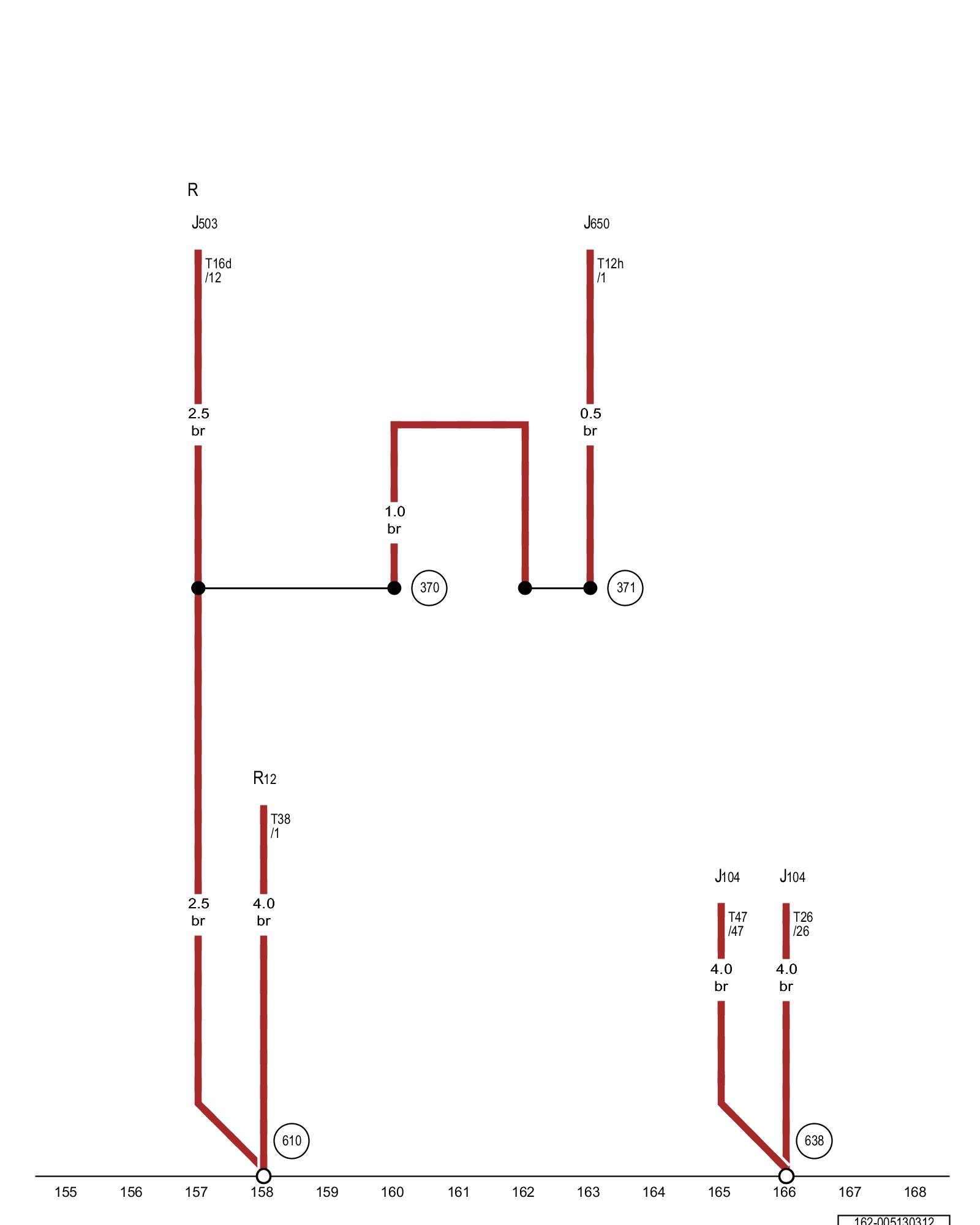

Diagram 5/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Audio ground connection under front center console, Ground connection on right A-pillar





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Overview Of Control Modules [1][2]Diagrams

J503 - Radio/navigation display unit control module Overview Of Control Modules Locations

J650 - Multimedia system control module Overview Of Control Modules Locations

R - Radio Overview Of Control Modules Component Locations Component Locations Locations

R12 - Amplifier Overview Of Control Modules Locations Component Locations Component Locations Locations

T12h - 12-pin connector

T16d - 16-pin connector

T26 - 26-pin connector

T38 - 38-pin connector

T47 - 47-pin connector

(370) - Ground connection 5 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)

(610) - Audio ground connection under front center console Locations

(638) - Ground connection on right A-pillar Locations
