Diagram 35/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

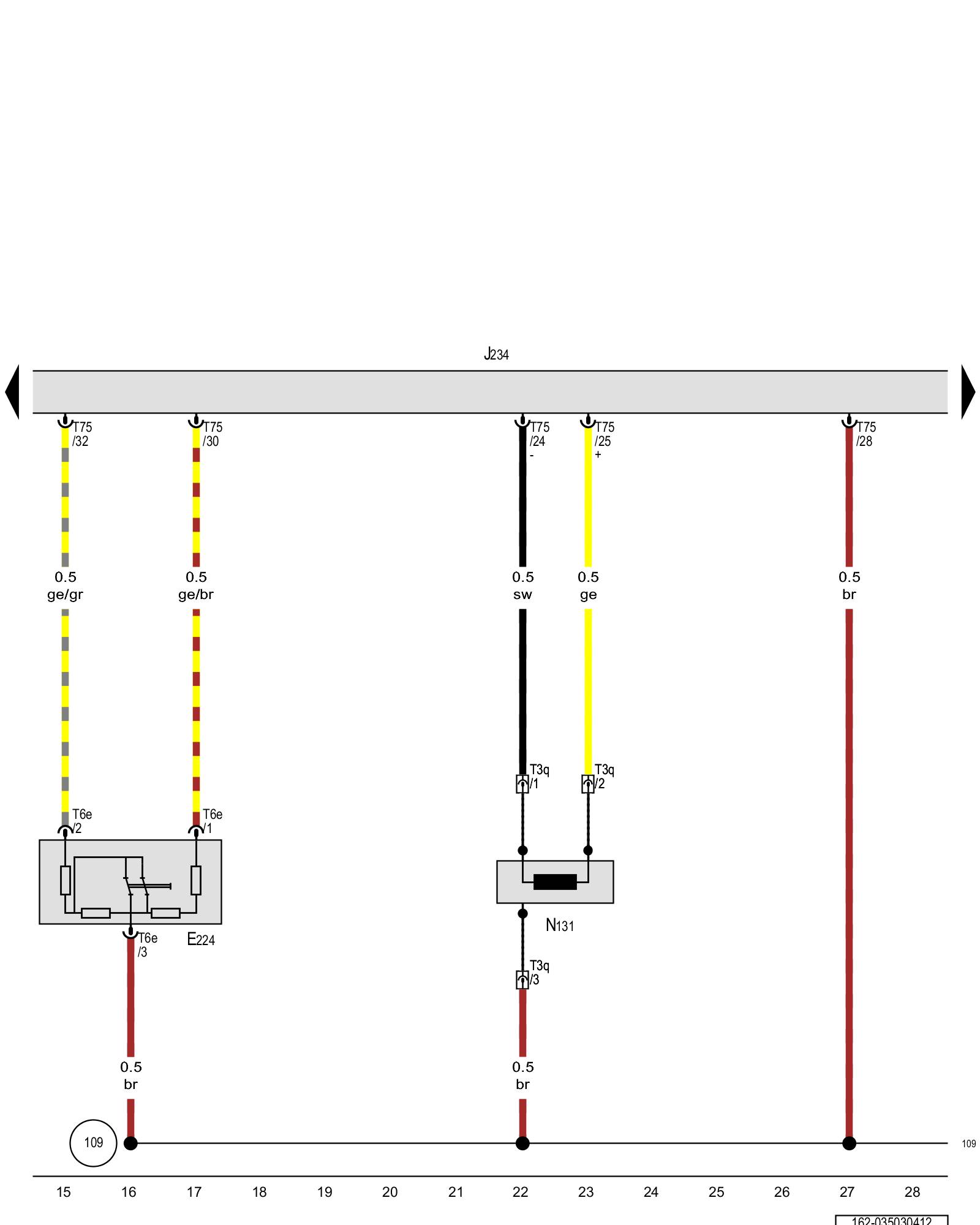

Front passenger airbag deactivation key switch, Airbag control module, Front passenger airbag igniter 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E224 - Front passenger airbag deactivation key switch

J234 - Airbag control module Overview Of Control Modules

N131 - Front passenger airbag igniter 1 Airbag System Overview Front Pass Airbag Igniter 1 -N131- and Front Pass Airbag Igniter 2 -N132-

T3q - 3-pin connector

T6e - 6-pin connector

T75 - 75-pin connector

(109) - Ground connection (in airbag wiring harness)

Previous Diagram 35/2 (Tracks 1-14)

Next Diagram 35/4 (Tracks 29-42)
