Right Antenna Module (R109)

Right Antenna Module (R109)

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the roof end strip..

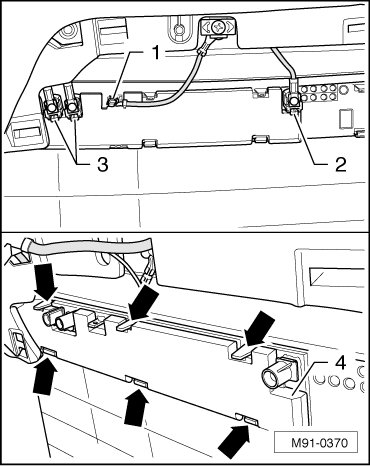

- Unlock and disconnect the connectors - 1 -, - 2 - and - 3 -.






- Loosen the front clips - arrows - and move the right antenna module downward.

- Loosen the rear clips - arrows - and carefully remove the right antenna module - 4 -.

Installing

- Insert the right antenna module - 4 - into the rear clips - arrows -.






- Move the right antenna module - 4 - upward and lock it into the front clips - arrows -.

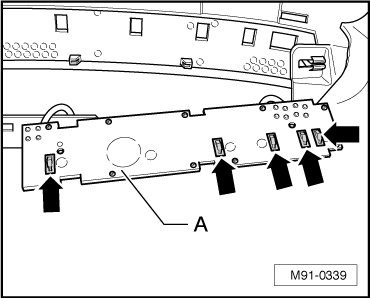

• The contacts on the right antenna module - arrows - must not get bent and must clean to prevent any reception problems.






Further installation is in the reverse sequence to removal.
