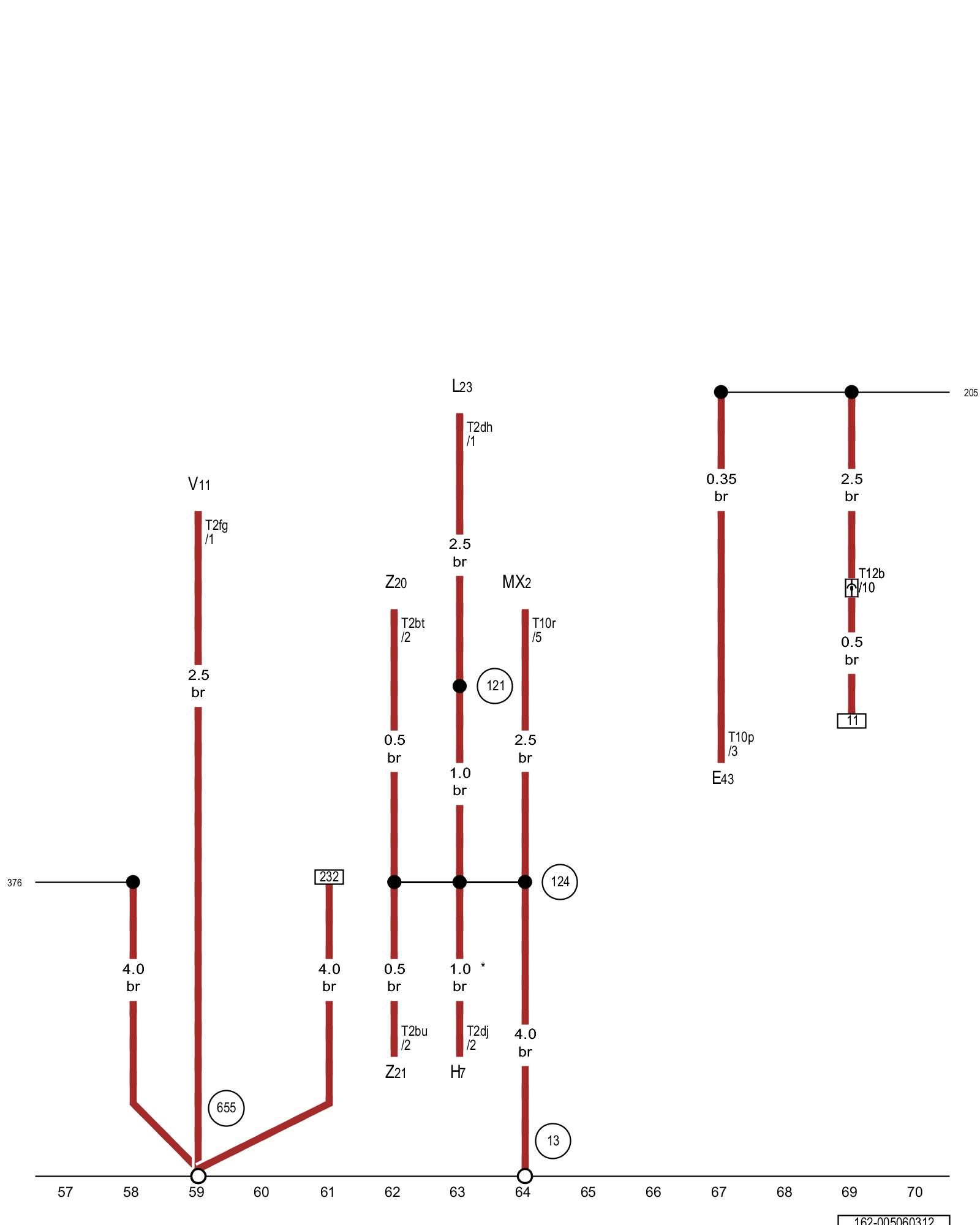

Diagram 5/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection in engine compartment, right, Ground connection on left headlamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E43 - Mirror adjusting switch [1][2]Diagrams

H7 - Low tone horn

L23 - Right front fog lamp bulb

MX2 - Right front headlamp

T2bt - Double connector

T2bu - Double connector

T2dh - Double connector

T2dj - Double connector

T2fg - Double connector

T10p - 10-pin connector

T10r - 10-pin connector

T12b - 12-pin connector

V11 - Headlamp washer pump

Z20 - Left washer nozzle heater

Z21 - Right washer nozzle heater

(13) - Ground connection in engine compartment, right Locations

(121) - Ground connection 2 (in right front wiring harness)

(124) - Ground connection (in right engine compartment wiring harness)

(205) - Ground connection (in driver door wiring harness)

(376) - Ground connection 11 (in main wiring harness)

(655) - Ground connection on left headlamp Locations

* - Only for vehicles with dual tone horn
