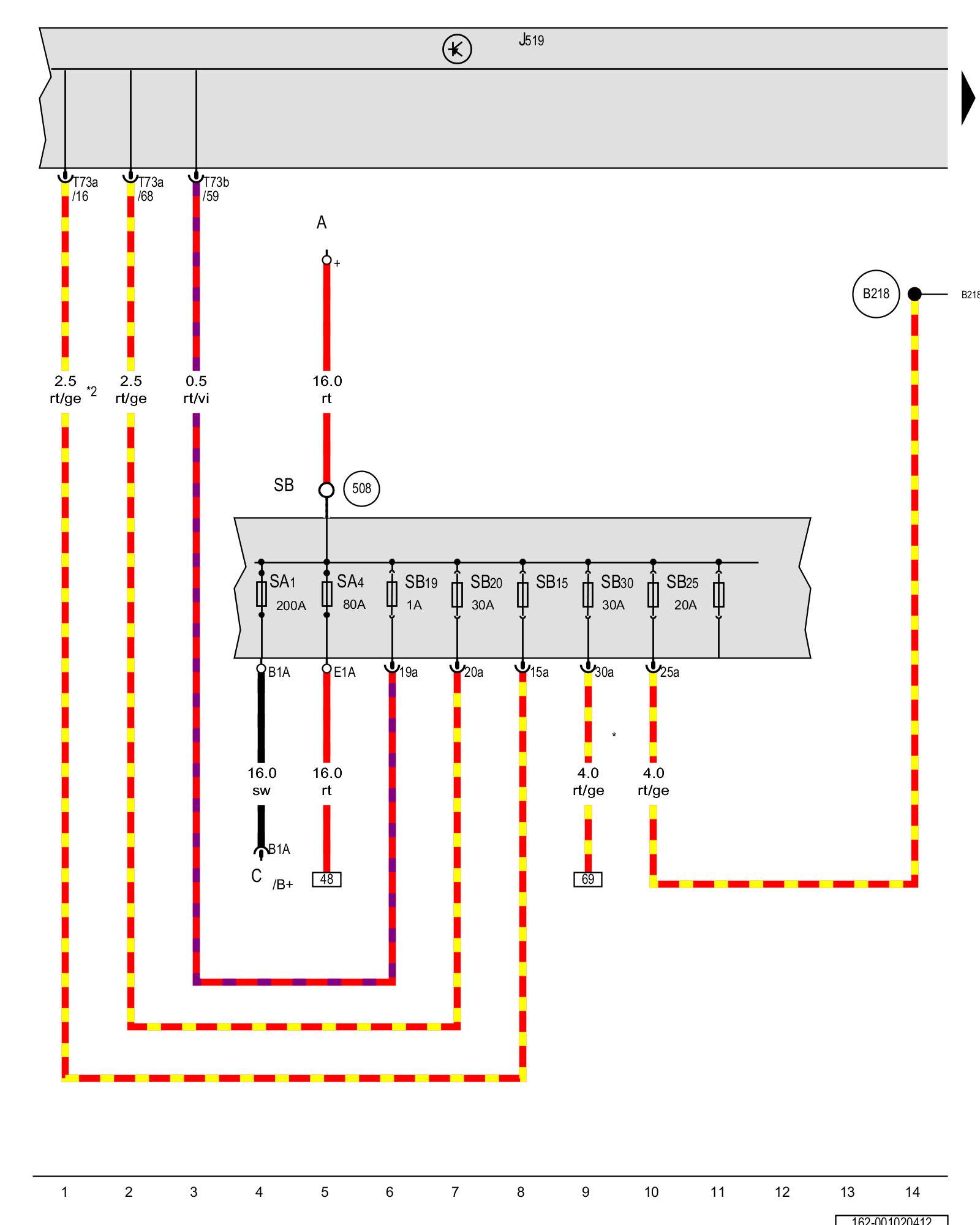

Diagram 1/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Fuse 1 (on fuse panel A), Fuse 4 (on fuse panel A), Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

C - Generator

J519 - Vehicle electrical system control module Overview Of Control Modules

SA1 - Fuse 1 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview of Fuses (SA), (SB), (SC)

SB - Fuse panel B Overview of Fuses (SA), (SB), (SC)

SB15 - Fuse 15 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB19 - Fuse 19 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB20 - Fuse 20 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB25 - Fuse 25 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

SB30 - Fuse 30 (on fuse panel B) Overview of Fuses (SA), (SB), (SC)

T73a - 73-pin connector Overview Of Control Modules

T73b - 73-pin connector Overview Of Control Modules

(508) - Terminal 30 threaded connection (on E-box)

(B218) - Positive connection 6 (30) (in interior wiring harness)

* - Running change

*2 - Omitted as a running change

Next Diagram 1/3 (Tracks 15-28)
