Diagram 1/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

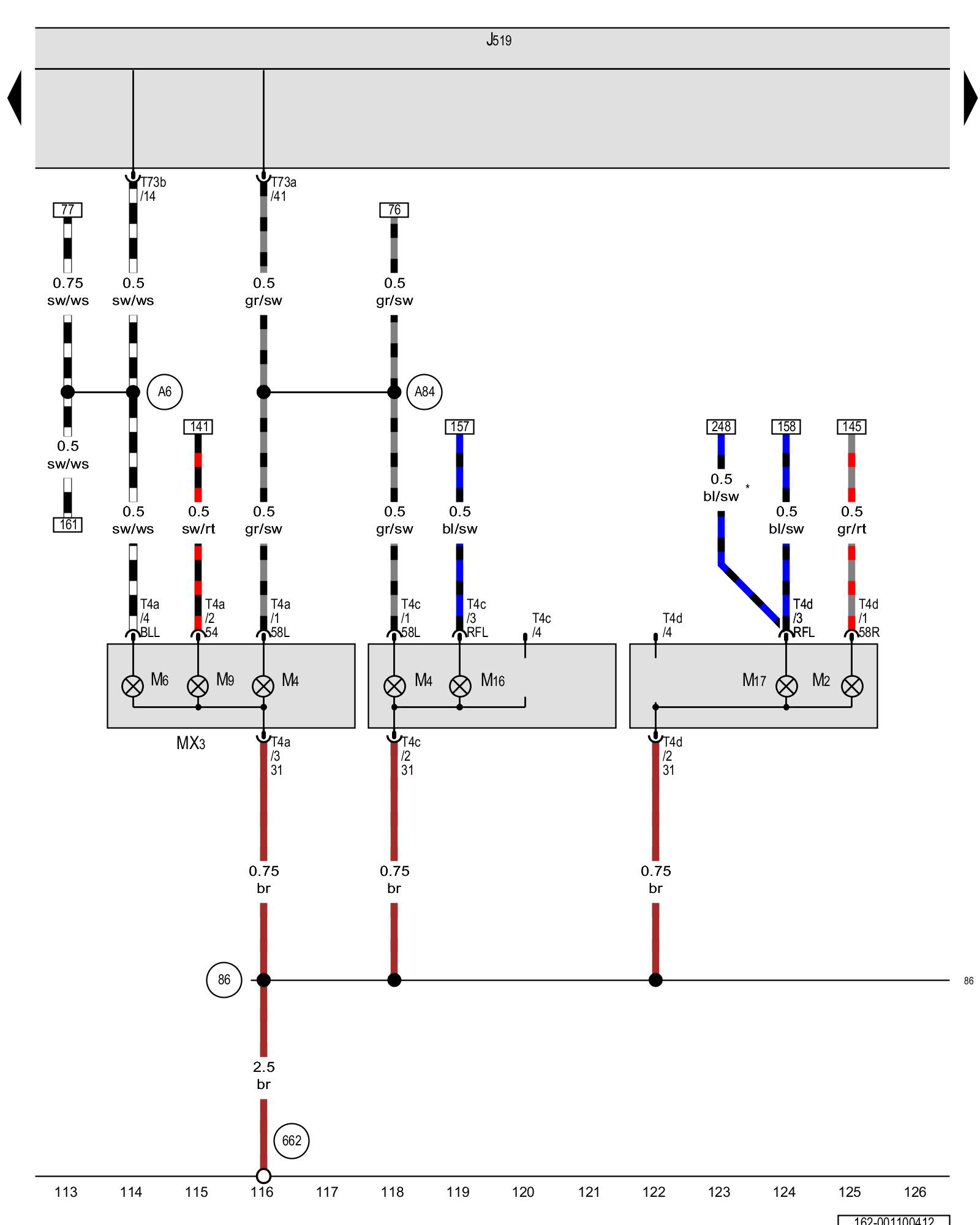

Vehicle electrical system control module, Left tail lamp, Left rear turn signal bulb, Left brake lamp bulb, Left back-up lamp bulb, Right back-up lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Overview Of Control Modules

M2 - Right tail lamp bulb

MX3 - Left tail lamp

M4 - Left tail lamp bulb

M6 - Left rear turn signal bulb

M9 - Left brake lamp bulb

M16 - Left back-up lamp bulb

M17 - Right back-up lamp bulb

T4a - 4-pin connector

T4c - 4-pin connector

T4d - 4-pin connector

T73a - 73-pin connector Overview Of Control Modules

T73b - 73-pin connector Overview Of Control Modules

(86) - Ground connection 1 (in rear wiring harness)

(662) - Ground connection in left rear side panel Locations

(A6) - Left turn signal positive connection (in instrument panel wiring harness)

(A84) - Connection 58L (in instrument panel wiring harness)

* - Only for vehicles with automatic dimming interior rearview mirror
