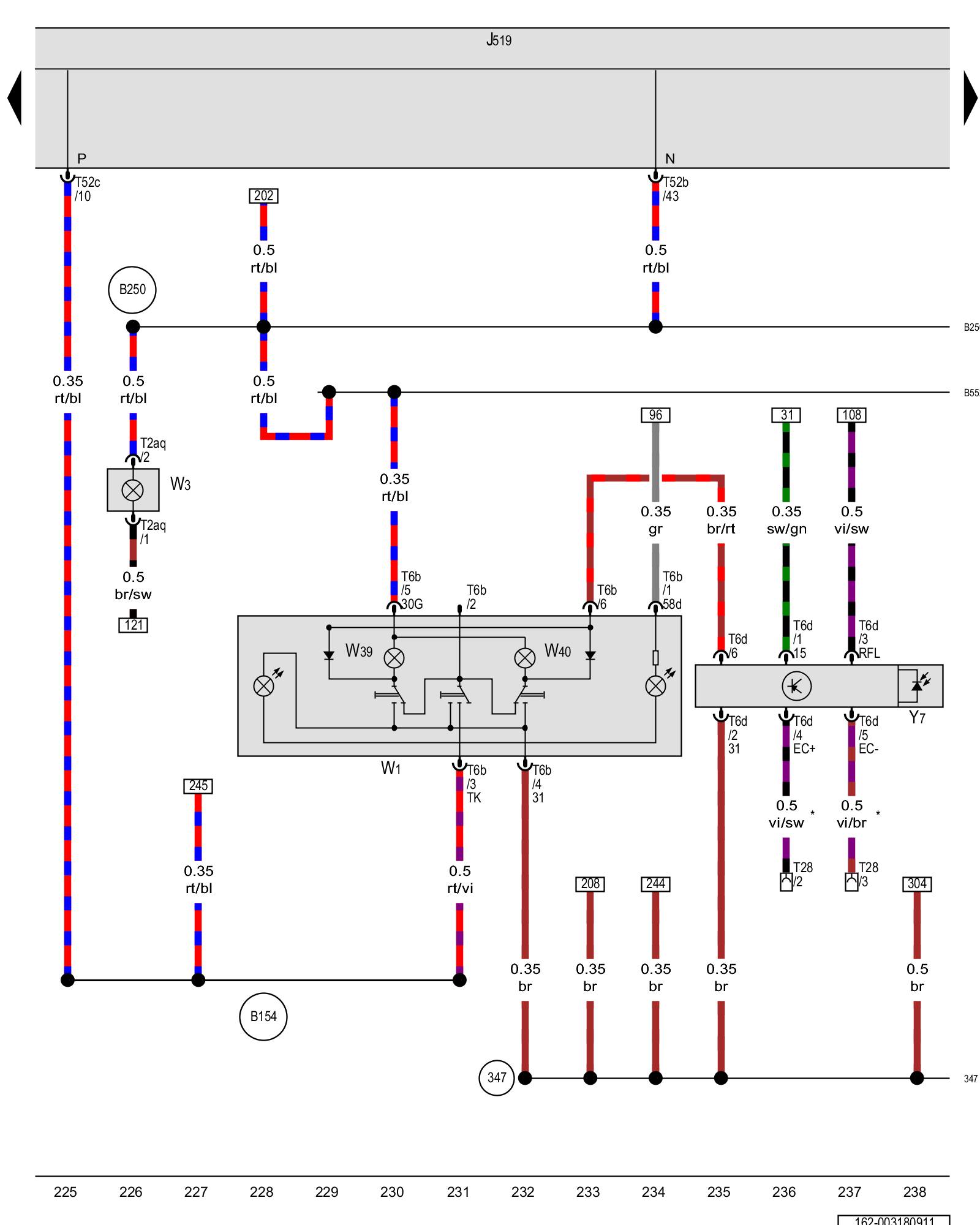

Diagram 3/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Front interior lamp, Luggage compartment lamp, Right center reading lamp, Automatic dimming interior rearview mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Overview Of Control Modules

T2aq - Double connector

T6b - 6-pin connector

T6d - 6-pin connector

T28 - 28-pin connector, Left A-pillar, bottom Overview Of Connector Stations and Connectors

T52b - 52-pin connector Overview Of Control Modules

T52c - 52-pin connector Overview Of Control Modules

W1 - Front interior lamp

W3 - Luggage compartment lamp

W39 - Left center reading lamp

W40 - Right center reading lamp

Y7 - Automatic dimming interior rearview mirror [1][2]Connector Views

(347) - Ground connection (in roof wiring harness)

(B154) - Connection 1 (TK) (in interior wiring harness)

(B250) - Positive connection (in roof wiring harness)

(B552) - Positive connection 2 (in roof wiring harness)

* - Only for vehicles with automatic dimming exterior rearview mirror
