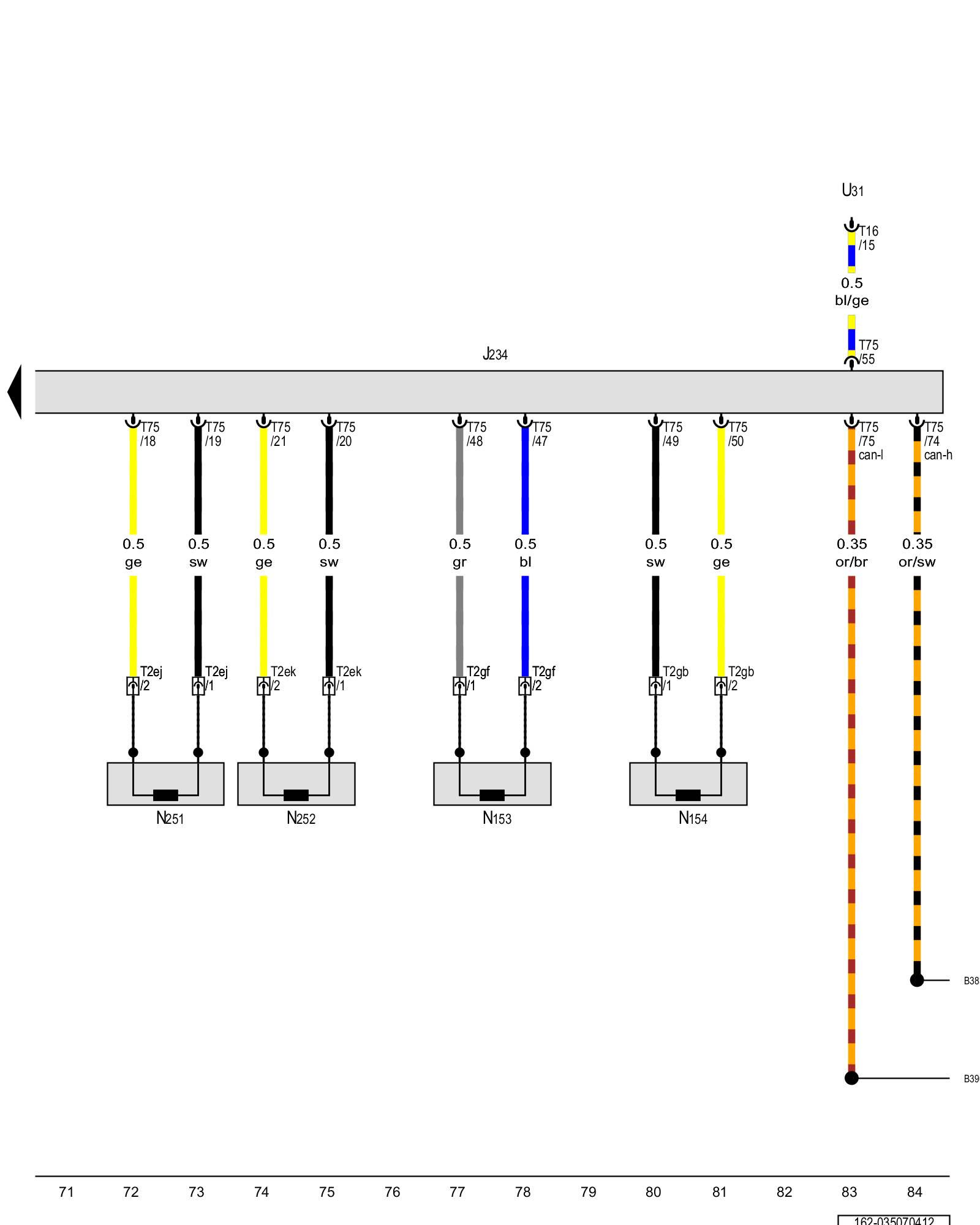

Diagram 35/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag control module, Driver head curtain airbag igniter, Front passenger head curtain airbag igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Overview Of Control Modules

N153 - Driver seat belt tensioner igniter 1 Locations Driver Seat Belt Tensioner Igniter

N154 - Front passenger seat belt tensioner igniter 1 Locations Front Pass Seat Belt Tensioner Igniter 1 -N154-

N251 - Driver head curtain airbag igniter Airbag System Overview Driver Head Curtain Airbag Igniter -N251- and Front Pass Head Curtain Airbag Igniter -N252-

N252 - Front passenger head curtain airbag igniter Airbag System Overview Driver Head Curtain Airbag Igniter -N251- and Front Pass Head Curtain Airbag Igniter -N252-

T2ej - Double connector

T2ek - Double connector

T2gb - Double connector

T2gf - Double connector

T16 - 16-pin connector Overview Of Connector Stations and Connectors

T75 - 75-pin connector

U31 - Diagnostic connection Overview Of Connector Stations and Connectors

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)
