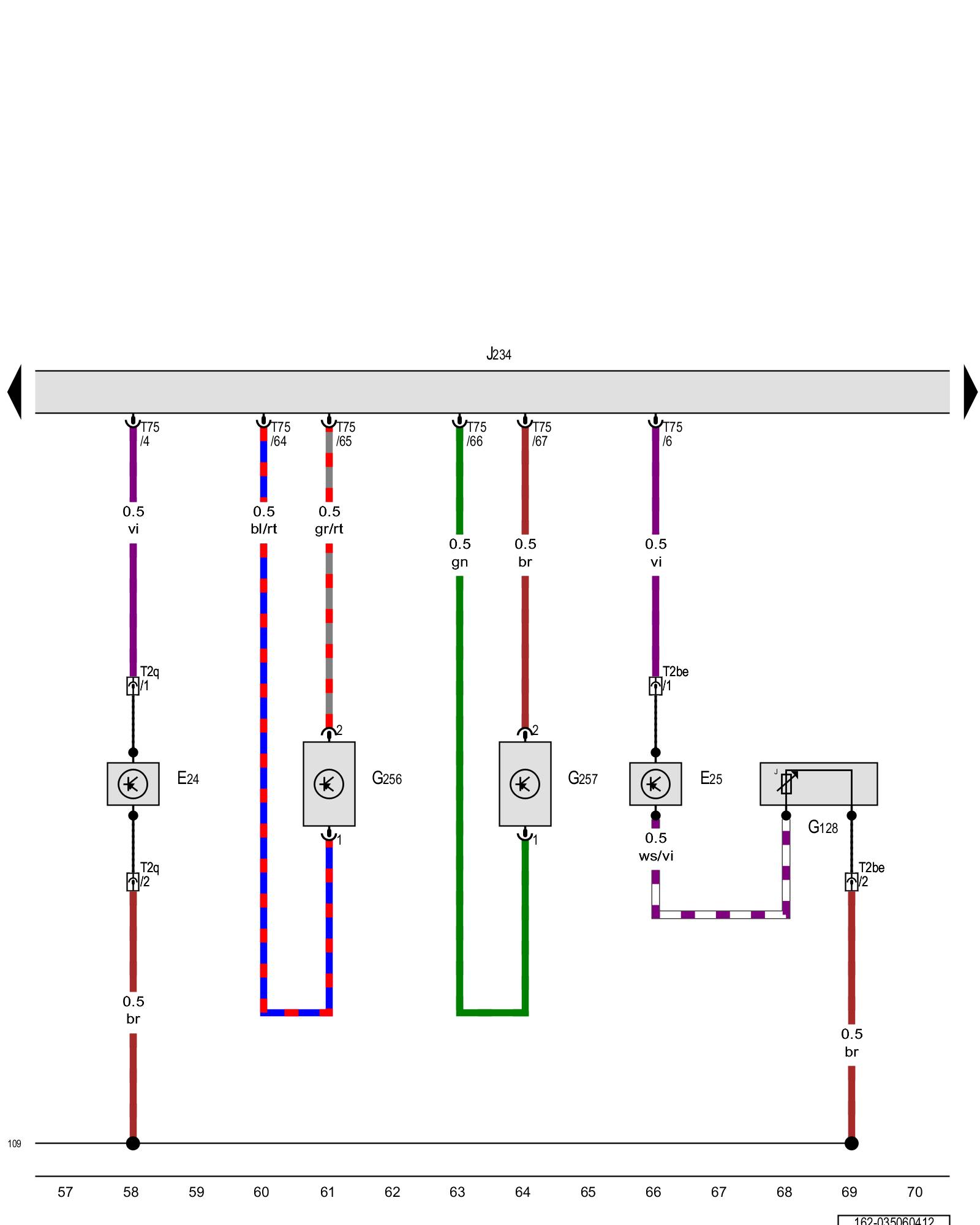

Diagram 35/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver seat belt switch, Front passenger seat belt switch, Driver side rear side airbag crash sensor, Passenger side rear side airbag crash sensor, Airbag control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E24 - Driver seat belt switch Driver Seat Belt Switch -E24-

E25 - Front passenger seat belt switch Front Pass Seat Belt Switch -E25-

G128 - Front passenger seat occupant sensor Passive Occupant Detection System

G256 - Driver side rear side airbag crash sensor Locations LR Thorax Airbag Crash Sensor -G256- and RR Thorax Airbag Crash Sensor -G257-

G257 - Passenger side rear side airbag crash sensor Locations LR Thorax Airbag Crash Sensor -G256- and RR Thorax Airbag Crash Sensor -G257-

J234 - Airbag control module Overview Of Control Modules

T2be - Double connector, under the front passenger seat Overview Of Connector Stations and Connectors

T2q - Double connector, under the driver seat Overview Of Connector Stations and Connectors

T75 - 75-pin connector

(109) - Ground connection (in airbag wiring harness)
