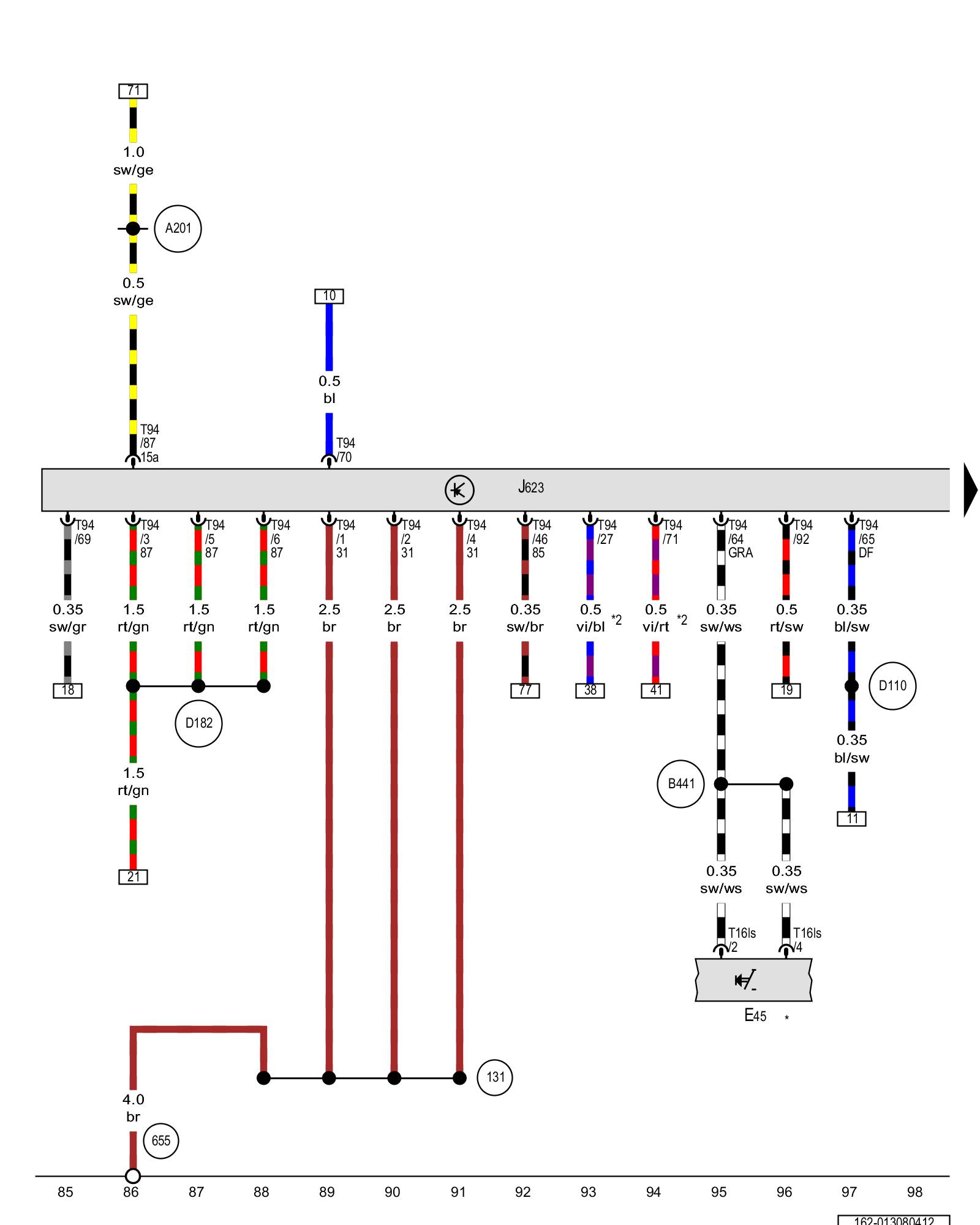

Diagram 13/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E45 - Cruise control switch

J623 - Engine control module Overview Of Control Modules

T16ls - 16-pin connector

T94 - 94-pin connector

(131) - Ground connection 2 (in engine compartment wiring harness)

(655) - Ground connection on left headlamp Locations

(A201) - Positive connection 6 (15a) (in instrument panel wiring harness)

(B441) - Cruise control connection (in main wiring harness)

(D110) - Connection 8 (in engine compartment wiring harness)

(D182) - Connection 87a (in engine compartment wiring harness) 3

* - Only for vehicles with cruise control

*2 - only for vehicles with auxiliary heater
