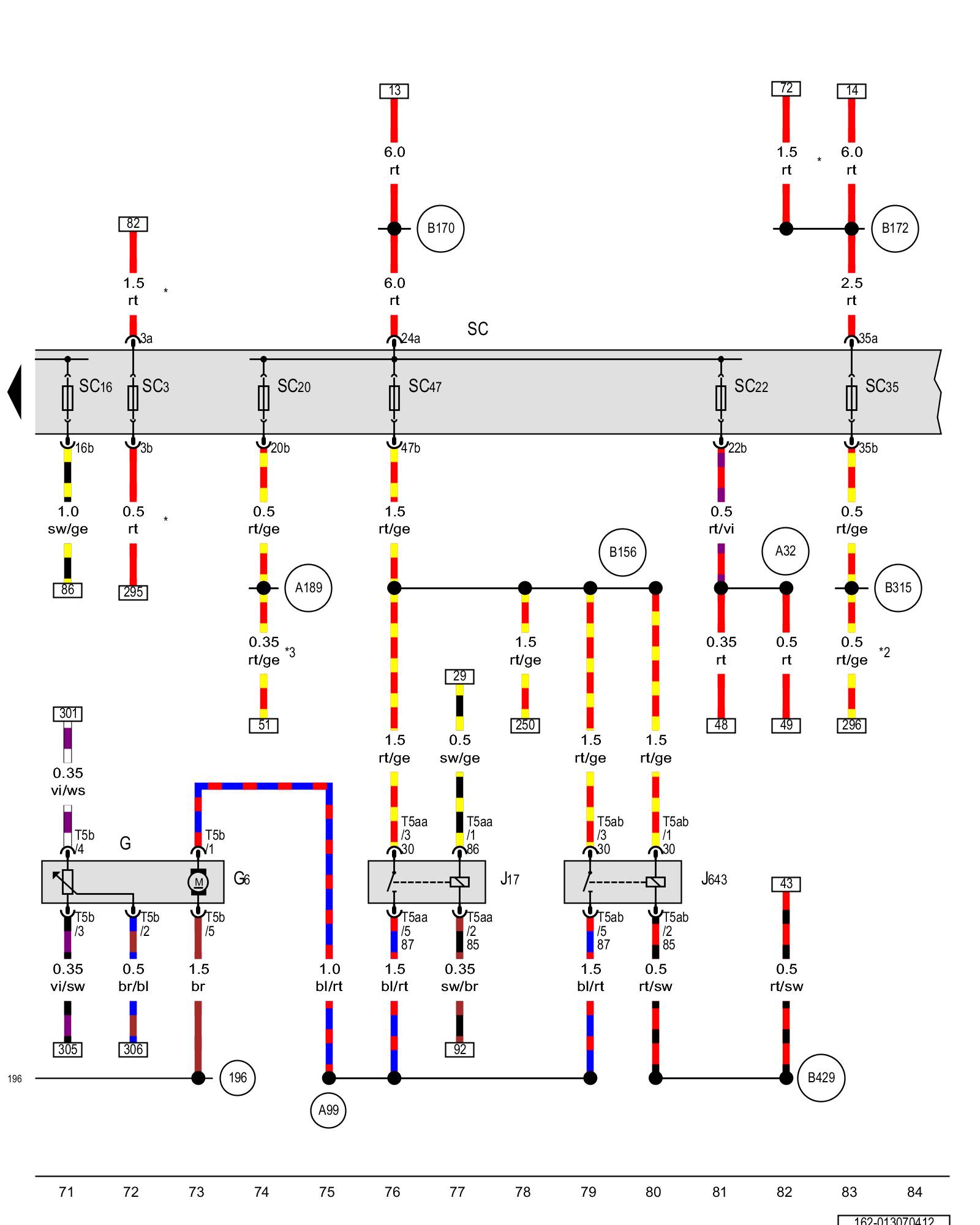

Diagram 13/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel level sensor, Transfer fuel pump, Fuel pump relay, Fuel primer relay, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel level sensor Locations

G6 - Transfer fuel pump Locations Transfer Fuel Pump -G6-

J17 - Fuel pump relay Overview Of Relay Carrier

J643 - Fuel primer relay Overview Of Relay Carrier

SC - Fuse panel C Overview of Fuses (SA), (SB), (SC)

SC3 - Fuse 3 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC16 - Fuse 16 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC20 - Fuse 20 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC22 - Fuse 22 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC35 - Fuse 35 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

SC47 - Fuse 47 (on fuse panel C) Overview of Fuses (SA), (SB), (SC)

T5aa - 5-pin connector

T5ab - 5-pin connector

T5b - 5-pin connector

(196) - Ground connection 3 (in rear wiring harness)

(A32) - Positive connection (30) (in instrument panel wiring harness)

(A99) - Connection 87 (in instrument panel wiring harness) 1

(A189) - Positive connection 5 (30a) (in instrument panel wiring harness)

(B156) - Positive connection (30a) (in interior wiring harness)

(B170) - Positive connection 2 (30) (in interior wiring harness)

(B172) - Positive connection 4 (30) (in interior wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

(B429) - Fuel pump relay connection (in main wiring harness)

* - Running change

*2 - Omitted as a running change

*3 - Only for vehicles with automatic transmission
