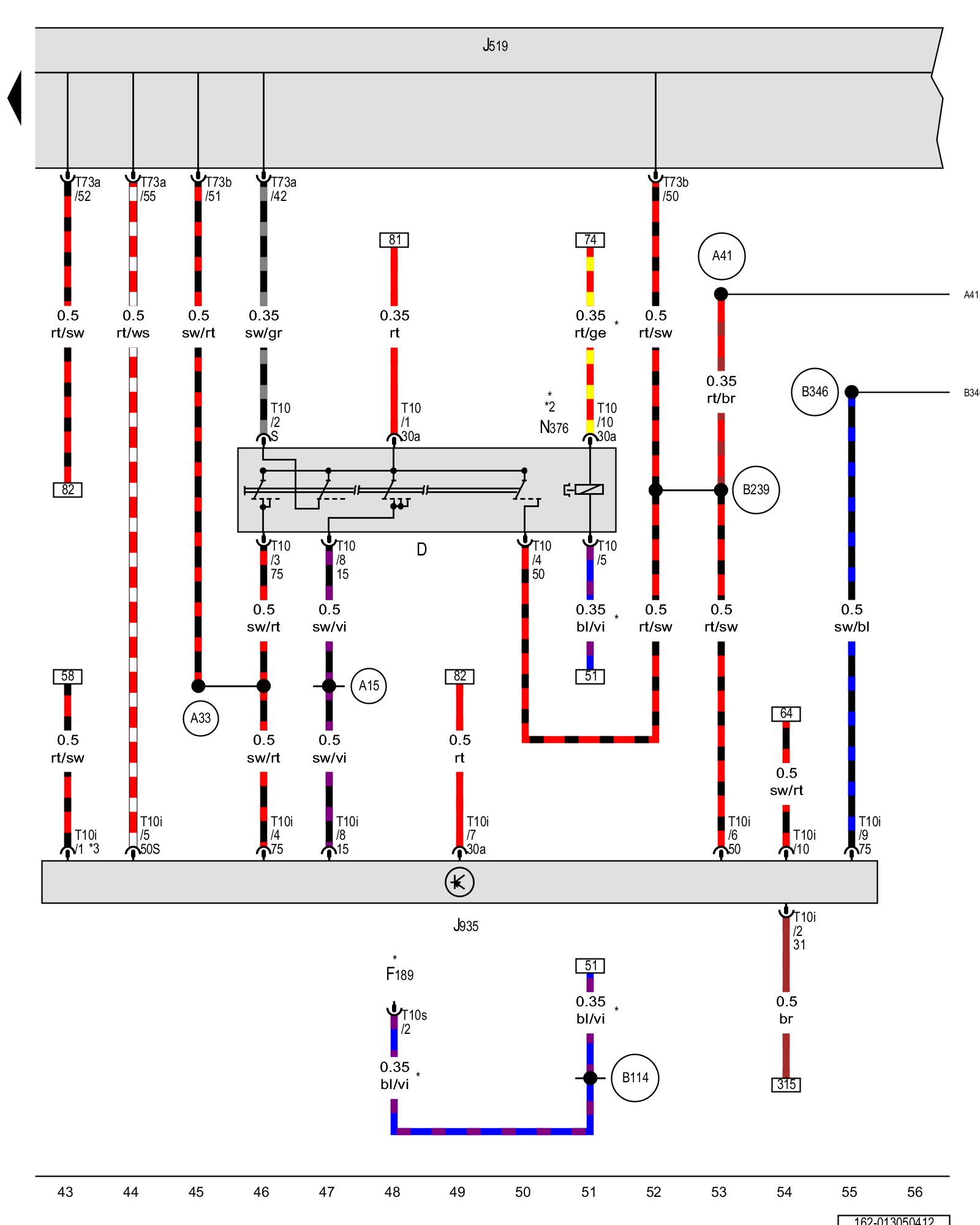

Diagram 13/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ignition/starter switch, Vehicle electrical system control module, Converter box





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/starter switch

F189 - tiptronic switch Selector Mechanism Assembly Overview Tiptronic Switch -F189- /Selector Lever -E313- and Selector Lever Park Position Lock Switch -F319-

J519 - Vehicle electrical system control module Overview Of Control Modules

J935 - Converter box Overview Of Relay Carrier

N376 - Ignition switch key lock solenoid

T10 - 10-pin connector

T10i - 10-pin connector

T10s - 10-pin connector

T73a - 73-pin connector Overview Of Control Modules

T73b - 73-pin connector Overview Of Control Modules

(A15) - Plus connection (15) (in instrument cluster wiring harness)

(A33) - Connection 75 (in instrument panel wiring harness)

(A41) - Positive connection (50) (in instrument panel wiring harness)

(B114) - Lock switch connection (in interior wiring harness)

(B239) - Positive connection 1 (50) (in interior wiring harness)

(B346) - Connection 75 (in main wiring harness) 1

* - Only for vehicles with automatic transmission

*2 - Only for vehicles with DSG transmission

*3 - Running change
