Diagram 13/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


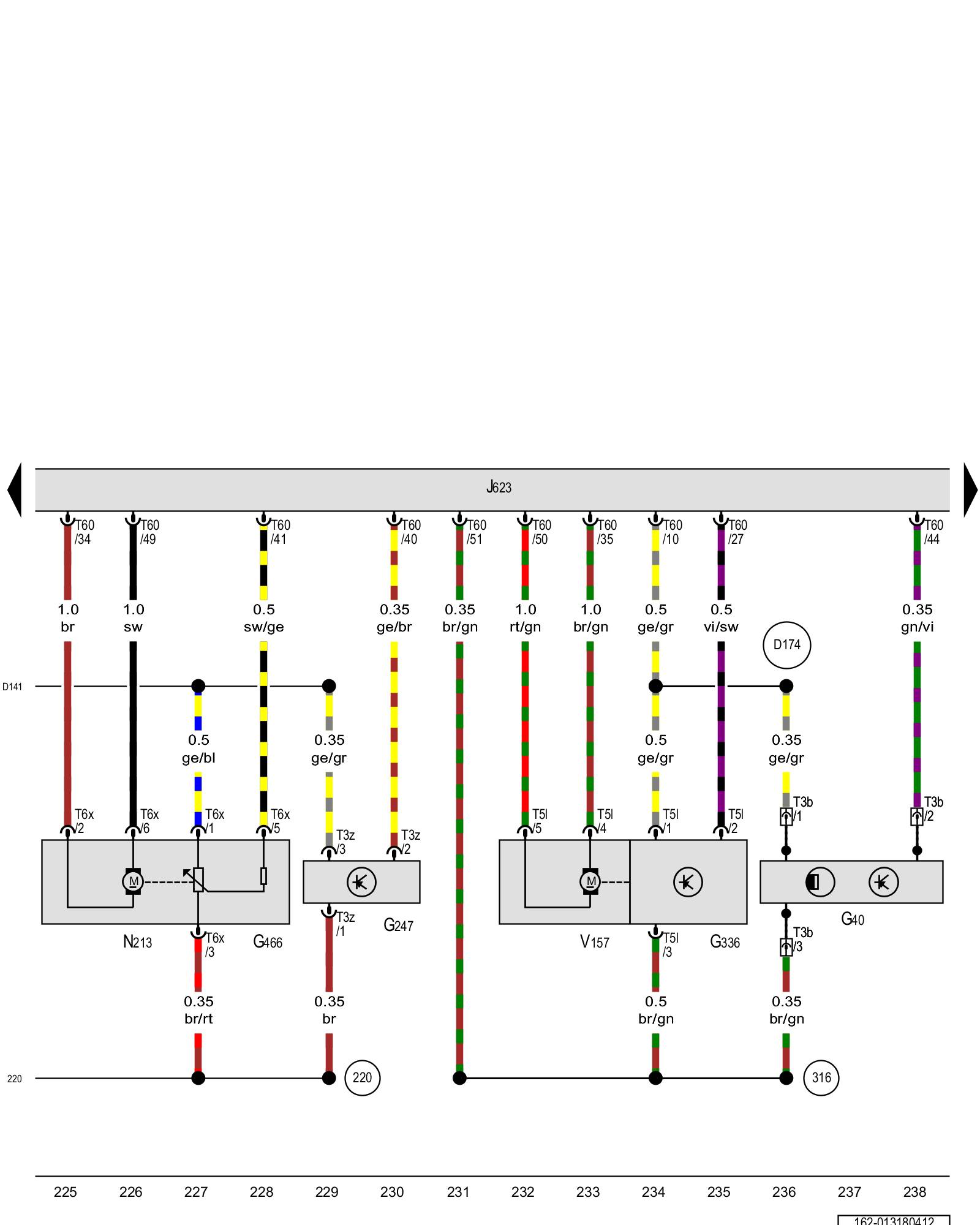

Camshaft position sensor, Fuel pressure sensor, Intake manifold runner position sensor, Exhaust gas recirculation position sensor 2, Engine control module, Valve 2 for EGR, Intake flap motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft position sensor Locations [1][2]Camshaft Position Sensor

G247 - Fuel pressure sensor Locations [1][2]Diagrams

G336 - Intake manifold runner position sensor 2.0L BPY, CCTA and CBFA Overview [1][2]Diagrams

G466 - Exhaust gas recirculation position sensor 2 EGR Motor 2 -V339- and Exhaust Gas Recirculation Position Sensor 2 -G466-

J623 - Engine control module Overview Of Control Modules

N213 - Valve 2 for EGR Locations

T3b - 3-pin connector

T3z - 3-pin connector

T5l - 5-pin connector

T6x - 6-pin connector

T60 - 60-pin connector

V157 - Intake flap motor Locations [1][2]Diagrams

(220) - Sensor ground connection (in engine compartment wiring harness)

(316) - Sensor ground connection 2 (in engine wiring harness)

(D141) - Connection 5V (in engine wiring harness)

(D174) - Connection 5V (in engine wiring harness) 2
