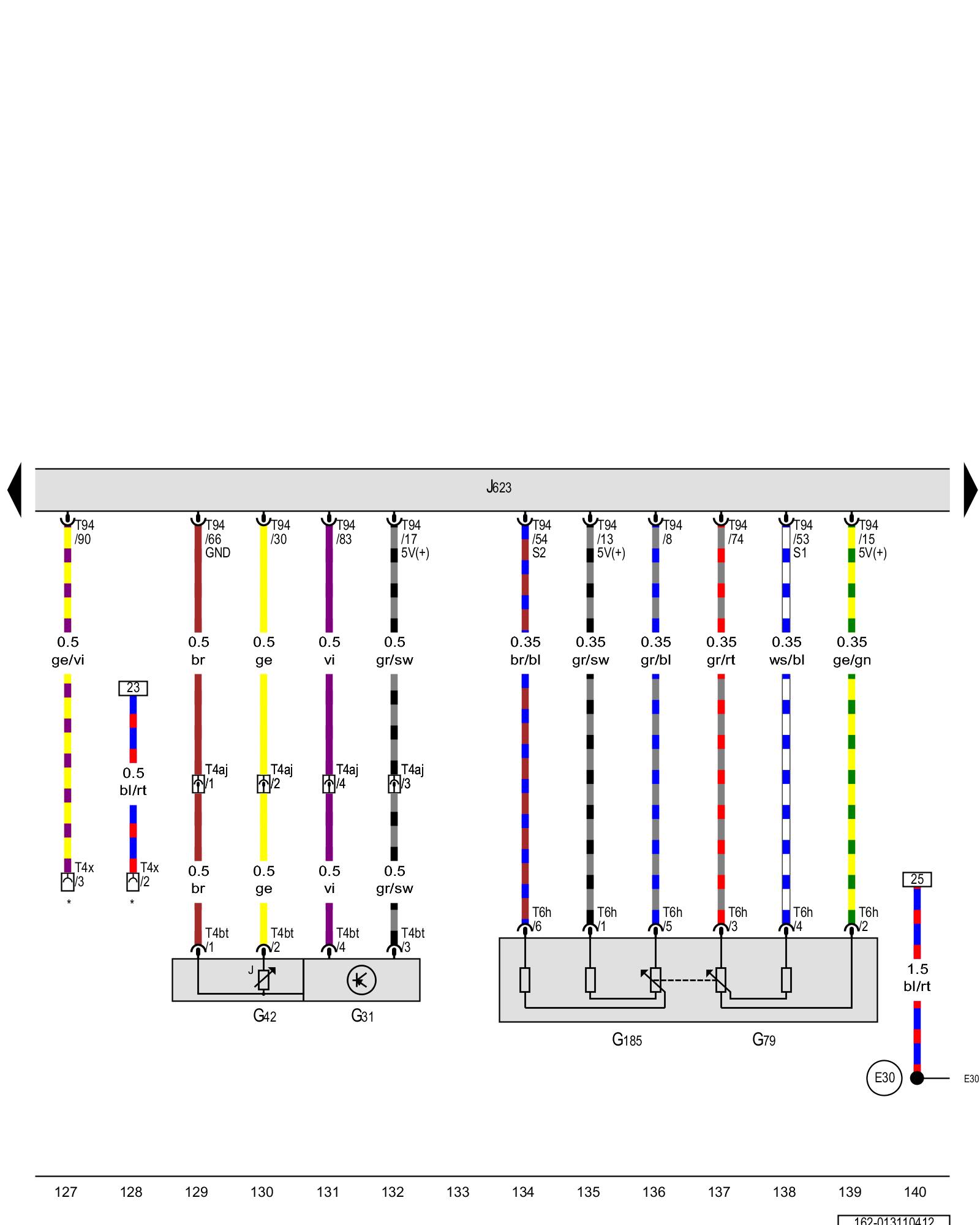

Diagram 13/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Charge air pressure sensor, Intake air temperature sensor, Accelerator pedal position sensor, Accelerator pedal position sensor 2, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge air pressure sensor Locations Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-

G42 - Intake air temperature sensor Locations Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-

G79 - Accelerator pedal position sensor Locations [1][2]Accelerator Pedal Position Sensor

G185 - Accelerator pedal position sensor 2 Locations [1][2]Accelerator Pedal Position Sensor

J623 - Engine control module Overview Of Control Modules

T4aj - 4-pin connector

T4bt - 4-pin connector

T4x - 4-pin connector Overview Of Connector Stations and Connectors

T6h - 6-pin connector

T94 - 94-pin connector

(E30) - Connection 87a (in engine wiring harness)

* - Coolant fan connection
