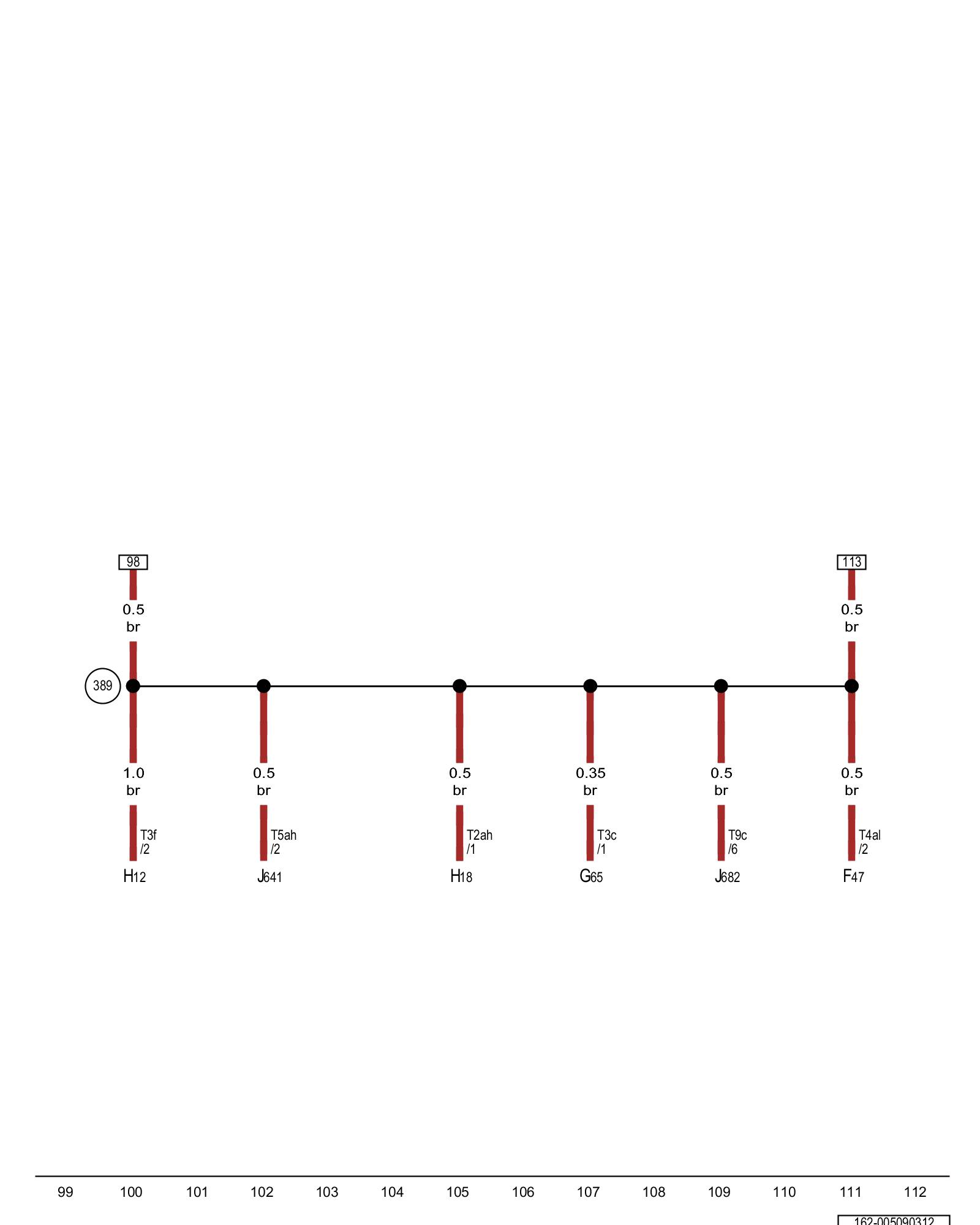

Diagram 5/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection 24 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F47 - Brake pedal switch Locations Locations

G65 - High pressure sensor Locations Diagrams

H12 - Alarm horn Locations

H18 - Alarm system horn

J641 - Alarm horn relay

J682 - Terminal 50 power supply relay

T2ah - Double connector

T3c - 3-pin connector

T3f - 3-pin connector

T4al - 4-pin connector

T5ah - 5-pin connector

T9c - 9-pin connector

(389) - Ground connection 24 (in main wiring harness)

Previous Diagram 5/8 (Tracks 85-98)

Next Diagram 5/10 (Tracks 113-126)
