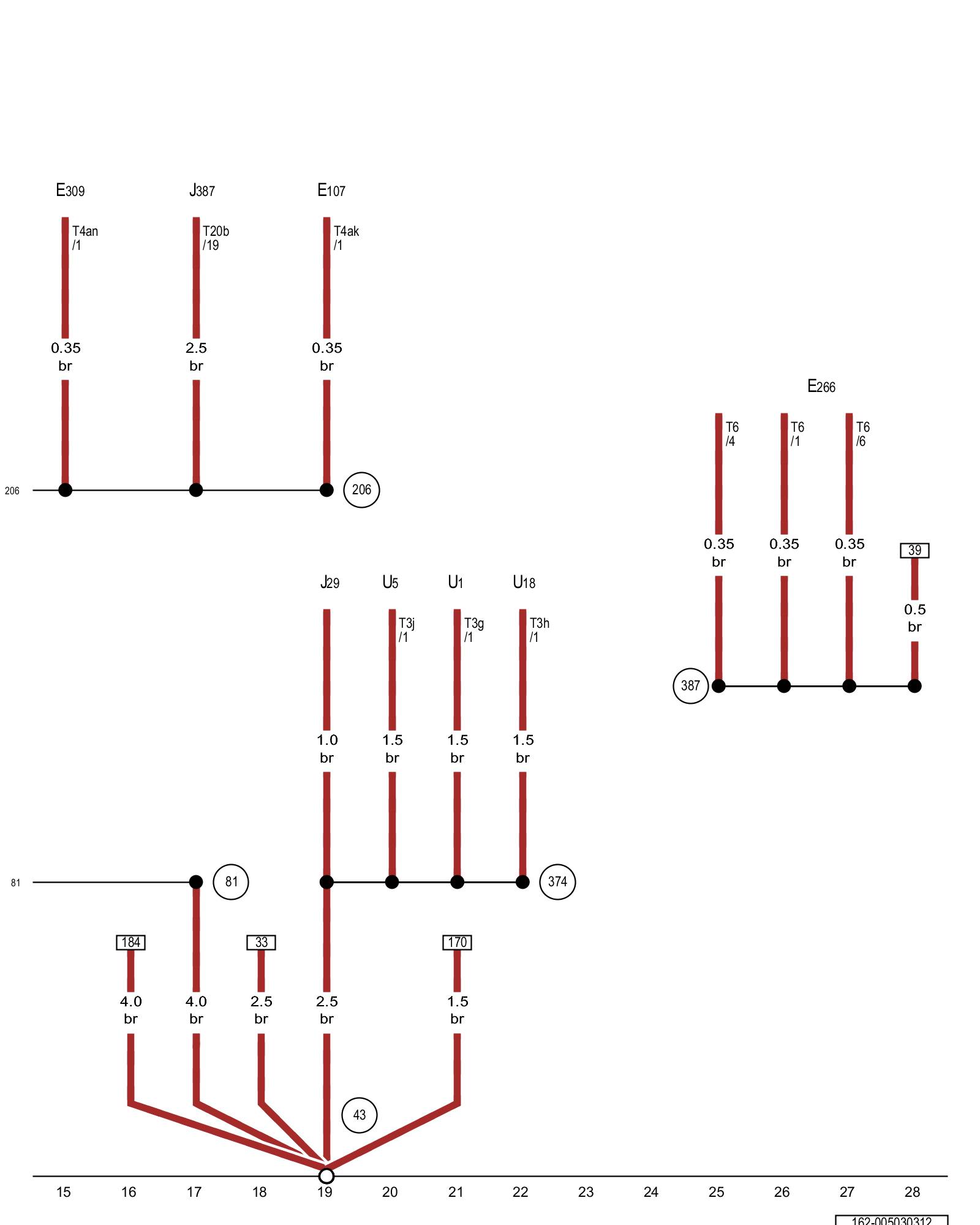

Diagram 5/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection on A-pillar, lower right





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front passenger door window regulator switch Front Pass Door window Regulator Switch -E107-

E266 - Parking aid button Diagrams

E309 - Front passenger interior locking button Interior Locking Button -E308- / -E309-

J29 - Blocking diode

J387 - Front passenger door control module Overview Of Control Modules Locations Driver/Front Pass Door Control Module -J386- / -J387-

T3g - 3-pin connector

T3h - 3-pin connector

T3j - 3-pin connector

T4ak - 4-pin connector

T4an - 4-pin connector

T6 - 6-pin connector

T20b - 20-pin connector

U1 - Cigarette lighter

U5 - 12 V socket

U18 - 12 V socket 2

(43) - Ground connection on A-pillar, lower right Locations

(81) - Ground connection 1 (in instrument panel wiring harness)

(206) - Ground connection (in front passenger door wiring harness)

(374) - Ground connection 9 (in main wiring harness)

(387) - Ground connection 22 (in main wiring harness)
