Diagram 5/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection in left rear side panel





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

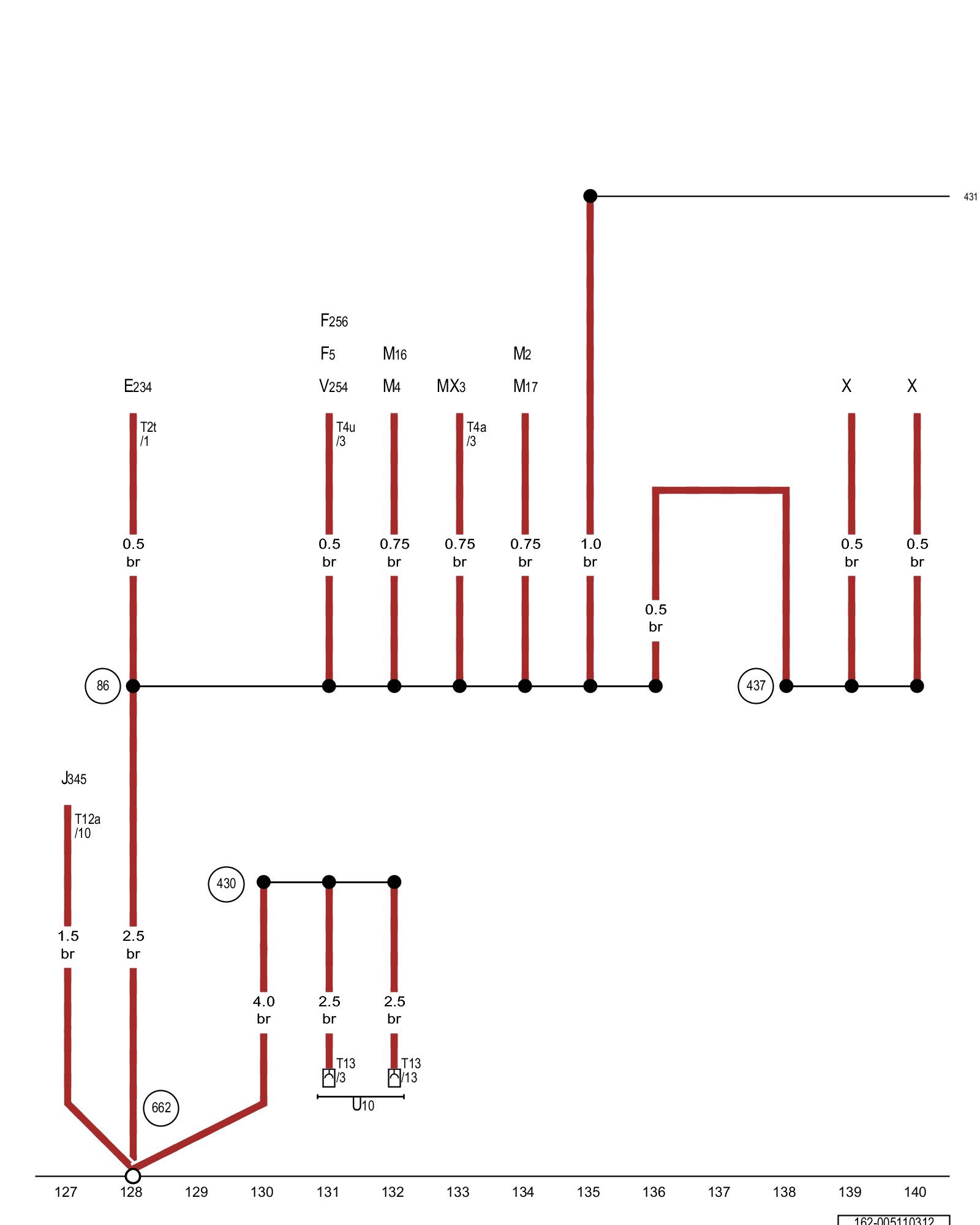

E234 - Release button in rear lid handle

F5 - Luggage compartment lamp switch

F256 - Rear lid lock unit Locations

J345 - Towing recognition control module Overview Of Control Modules

M2 - Right tail lamp bulb

MX3 - Left tail lamp

M4 - Left tail lamp bulb

M16 - Left back-up lamp bulb

M17 - Right back-up lamp bulb

T2t - Double connector

T4a - 4-pin connector

T4u - 4-pin connector

T12a - 12-pin connector

T13 - 13-pin connector

U10 - Trailer socket

V254 - Rear lid opening motor

X - License plate lamp

(86) - Ground connection 1 (in rear wiring harness)

(430) - Ground connection in trailer hitch wiring harness

(431) - Ground connection 2 (in roof wiring harness)

(437) - Ground connection (in license plate lamp wiring harness)

(662) - Ground connection in left rear side panel Locations
