Diagram 2/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

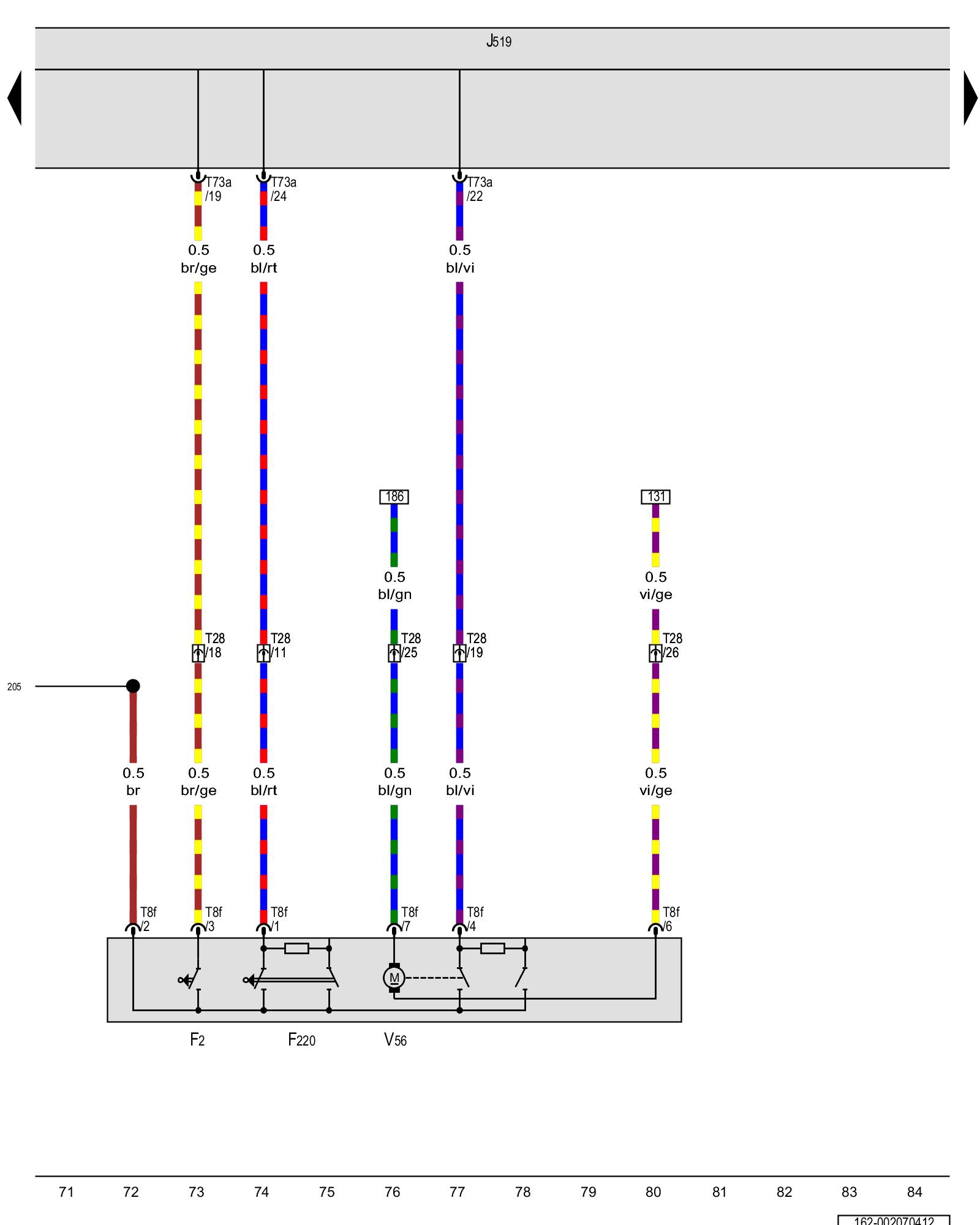

Driver door contact switch, Driver central locking lock unit, Vehicle electrical system control module, Driver door central locking system motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F2 - Driver door contact switch Locations Driver Door Lock Unit -F2- / -F220- / -V56-

F220 - Driver central locking lock unit Locations Driver Door Lock Unit -F2- / -F220- / -V56-

J519 - Vehicle electrical system control module Overview Of Control Modules

T8f - 8-pin connector

T28 - 28-pin connector, Left A-pillar, bottom Overview Of Connector Stations and Connectors

T73a - 73-pin connector Overview Of Control Modules

V56 - Driver door central locking system motor Driver Door Lock Unit -F2- / -F220- / -V56-

(205) - Ground connection (in driver door wiring harness)

Previous Diagram 2/6 (Tracks 57-70)

Next Diagram 2/8 (Tracks 85-98)
