Door Components, Inner Door Seal

Inner Door Seal

The inner door seals are equipped at the factory with sealant, applied to the door flange and then rolled on.

• The sealing compound will be distributed on the inside of the seal and the flanks will be slightly bent when the seal is removed. If the seal is installed again, it may not fit securely and it make leak.

• For this reason, every seal, that has been removed completely, must be replaced with a "hammer-stroke seal".

• With partially removed seals, press the edges of the seal together before installing.

• The following describes removing and installing the right inner door seal only. Removing and installing the left inner door seal is identical.

Removing






Perform the following:

- It is necessary to remove the pillar trim in order to remove the inner door seal.

- Remove the sill panel strip.

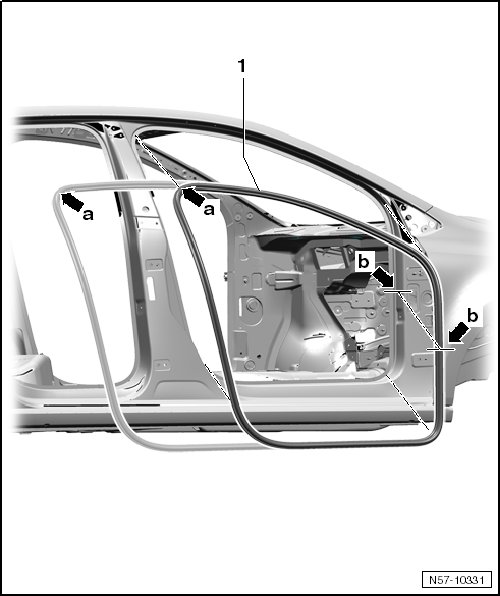

- Remove the inner door seal - 1 - from the flange on the body.

Installation






Perform the following:

- Line up the inner door seal - 1 - with the vulcanized point - arrow b - with the upper hinge - arrow b -.

- Start installing the inner door seal at the top of the opening for the door - arrow a -.

- Install the sill panel strip.

- Install the pillar trim.
