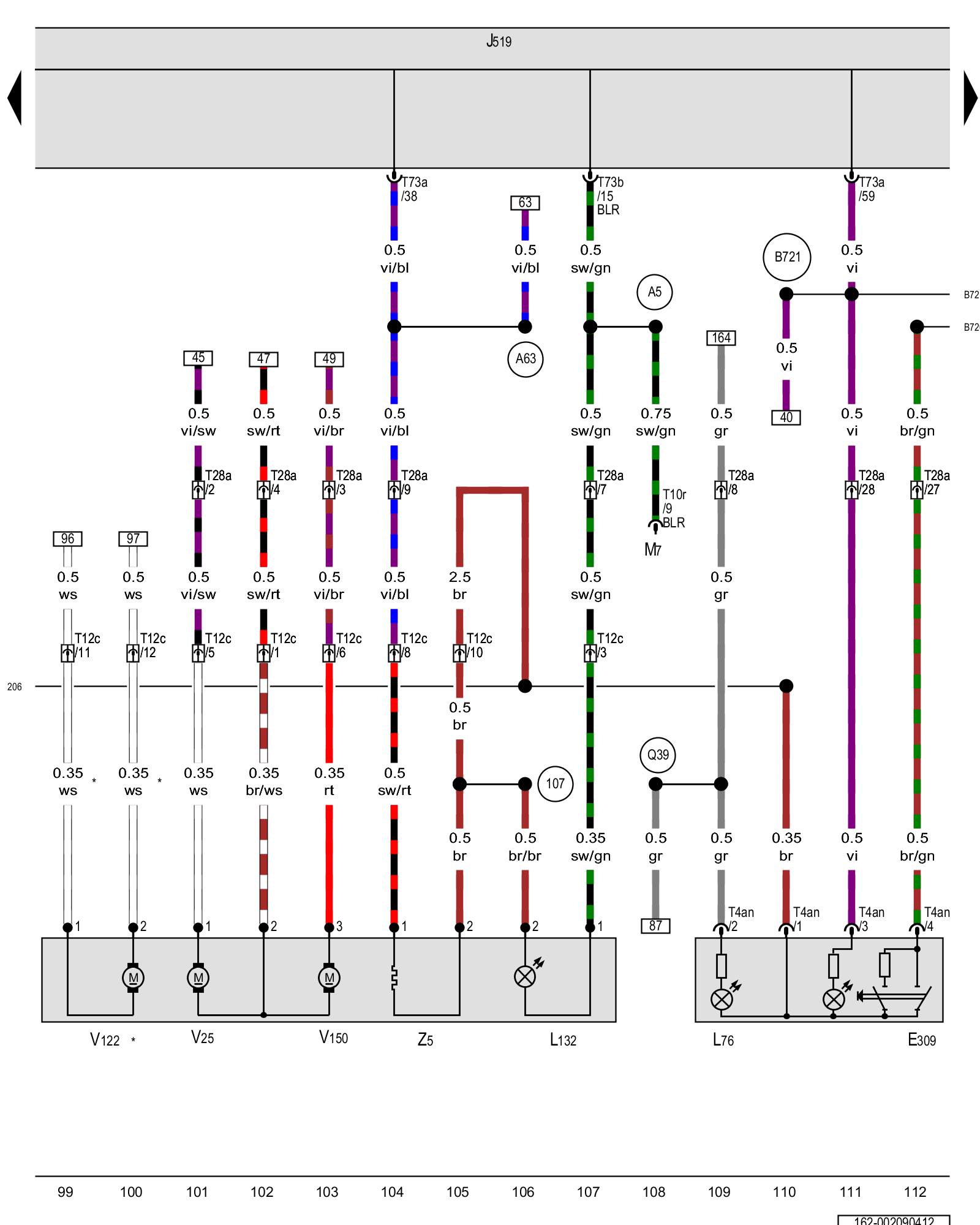

Diagram 2/9 (Tracks 99-112)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Front passenger interior locking button, Vehicle electrical system control module, Front passenger exterior rearview mirror turn signal bulb, Front passenger mirror adjustment motor, Front passenger exterior rearview mirror folding motor, Front passenger mirror adjustment motor
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
E309 - Front passenger interior locking button Interior Locking Button -E308- / -E309-
J519 - Vehicle electrical system control module Overview Of Control Modules
L76 - Push button illumination bulb
L132 - Front passenger exterior rearview mirror turn signal bulb
M7 - Right front turn signal bulb
T4an - 4-pin connector
T10r - 10-pin connector
T12c - 12-pin connector, in the front passenger door
T28a - 28-pin connector, Right A-pillar, bottom Overview Of Connector Stations and Connectors
T73a - 73-pin connector Overview Of Control Modules
T73b - 73-pin connector Overview Of Control Modules
V25 - Front passenger mirror adjustment motor
V122 - Front passenger exterior rearview mirror folding motor
V150 - Front passenger mirror adjustment motor
Z5 - Heated front passenger exterior rearview mirror
(107) - Ground connection (in exterior mirror wiring harness)
(206) - Ground connection (in front passenger door wiring harness)
(A5) - Right turn signal positive connection (in instrument panel wiring harness)
(A63) - Mirror adjustment/heating connection (in instrument panel wiring harness)
(B720) - Central locking connection 1 (in main wiring harness)
(B721) - Central locking connection 2 (in main wiring harness)
(Q39) - Positive connection 2 (publication) (in power window wiring harness)
* - Omitted as a running change
Previous Diagram 2/8 (Tracks 85-98)
Next Diagram 2/10 (Tracks 113-126)
