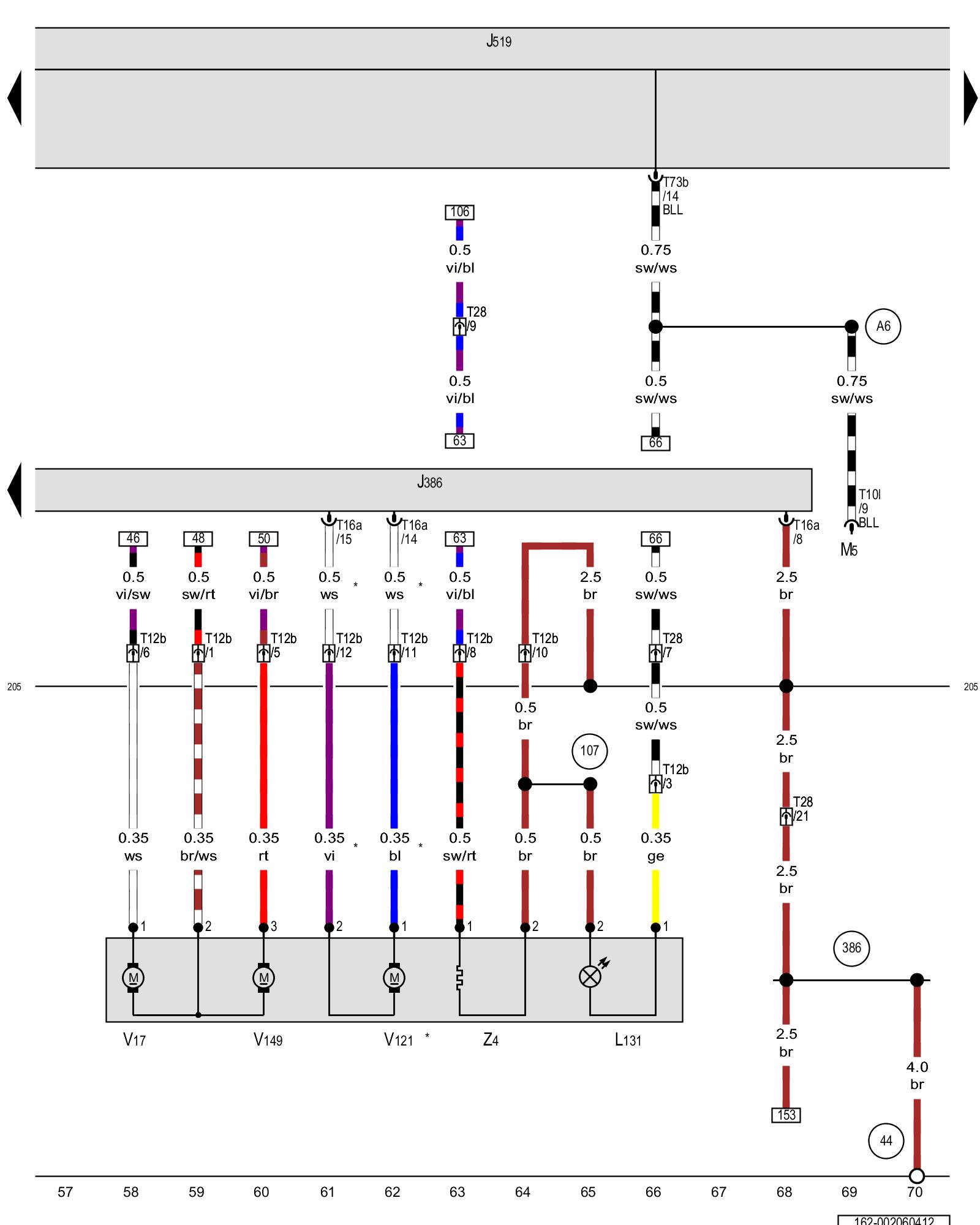

Diagram 2/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver door control module, Vehicle electrical system control module, Driver mirror adjustment motor, Driver exterior rearview mirror folding motor, Driver mirror adjustment motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J386 - Driver door control module Overview Of Control Modules Locations Driver/Front Pass Door Control Module -J386- / -J387-

J519 - Vehicle electrical system control module Overview Of Control Modules

L131 - Driver exterior rearview mirror turn signal bulb

M5 - Left front turn signal bulb

T10l - 10-pin connector

T12b - 12-pin connector, in the driver door wiring harness

T16a - 16-pin connector

T28 - 28-pin connector, Left A-pillar, bottom Overview Of Connector Stations and Connectors

T73b - 73-pin connector Overview Of Control Modules

V17 - Driver mirror adjustment motor

V121 - Driver exterior rearview mirror folding motor

V149 - Driver mirror adjustment motor

Z4 - Heated driver exterior rearview mirror

(44) - Ground connection on A-pillar, lower left Locations

(107) - Ground connection (in exterior mirror wiring harness)

(205) - Ground connection (in driver door wiring harness)

(386) - Ground connection 21 (in main wiring harness)

(A6) - Left turn signal positive connection (in instrument panel wiring harness)

* - Omitted as a running change

Previous Diagram 2/5 (Tracks 43-56)

Next Diagram 2/7 (Tracks 71-84)
