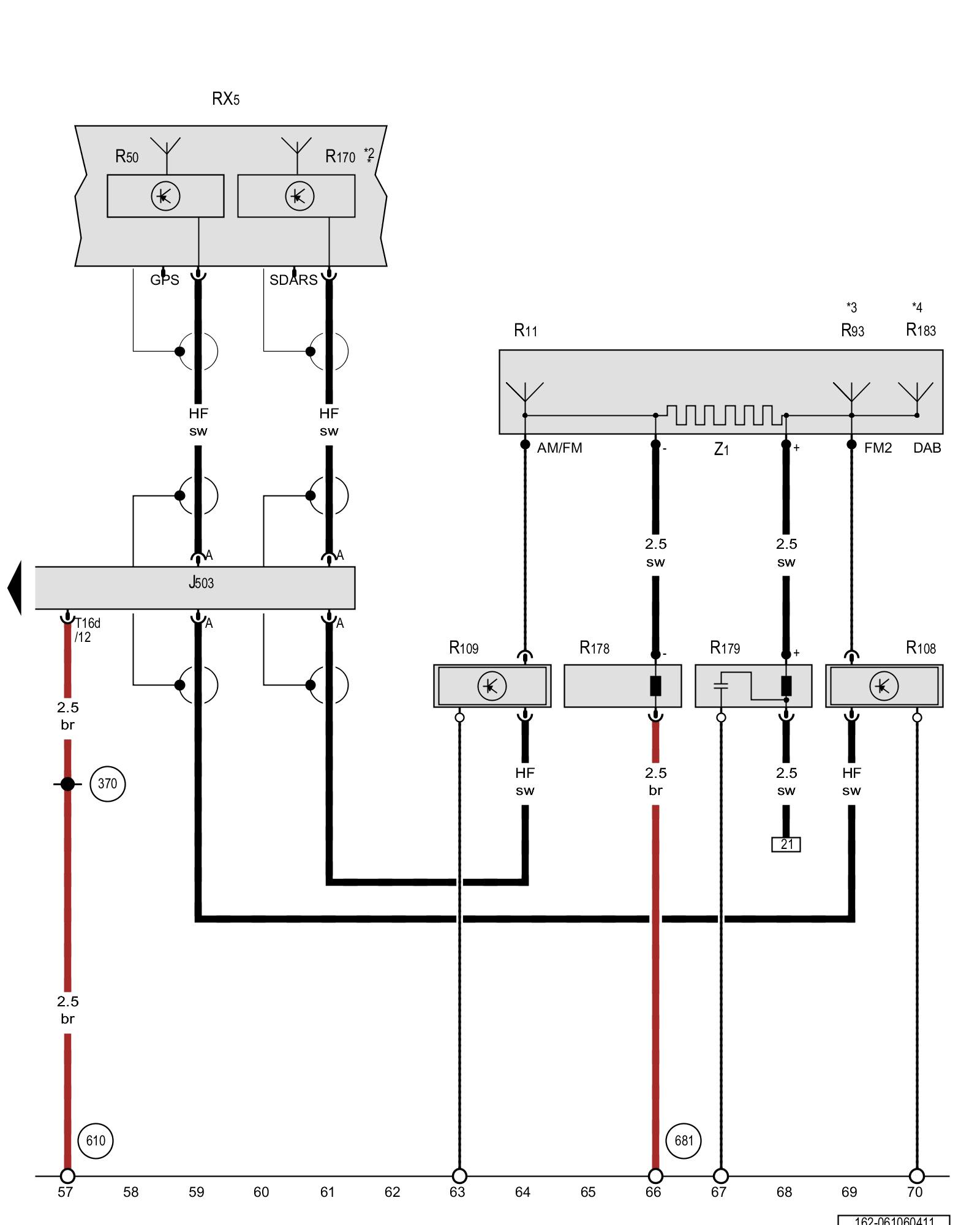

Diagram 61/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/navigation display unit control module, Roof antenna, Antenna, GPS antenna, Radio antenna 2, Left antenna module, Right antenna module, Satellite antenna, Digital radio antenna, Rear window defogger





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Overview Of Control Modules Locations

RX5 - Roof antenna

R11 - Antenna Locations Component Locations

R50 - GPS antenna Antenna System Overview

R93 - Radio antenna 2 Locations Component Locations

R108 - Left antenna module

R109 - Right antenna module

R170 - Satellite antenna

R178 - FM frequency filter in negative wire

R179 - FM frequency filter in positive wire

R183 - Digital radio antenna

T16d - 16-pin connector

Z1 - Rear window defogger

(370) - Ground connection 5 (in main wiring harness)

(610) - Audio ground connection under front center console Locations

(681) - Ground connection 1 in right rear side panel Locations

* - USA only

*2 - Only for vehicles with satellite radio

*3 - Depending on equipment

*4 - Only for vehicles with a digital radio

Previous Diagram 61/5 (Tracks 43-56)
