Rear Door Window Assembly Overview

Rear Door Window Assembly Overview

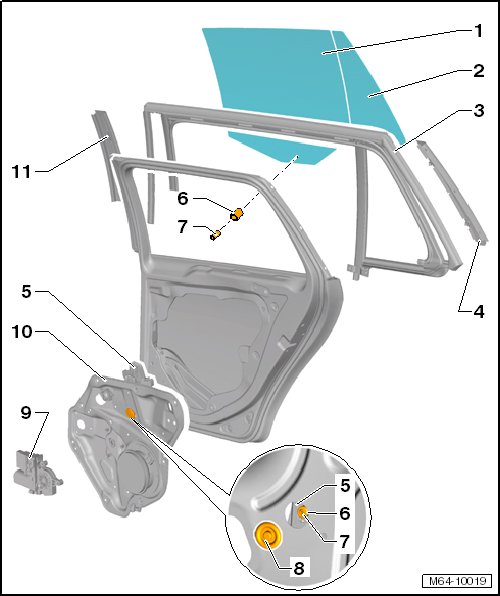

• The description applies to the right side. The left side is derived accordingly from this.






1 Door window

• Removing and Installing, refer to => [ Rear Door Window ] Rear Door Window

2 Fixed door window

• Component of window guide

• Removing and Installing, refer to => [ Fixed Door Window ] Fixed Door Window

3 Window guide

• Component of fixed door window

• Removing and Installing, refer to => [ Window Guide ] Window Guide

4 Rear trim

• Removing => [ rear trim ] Window Guide

5 Window regulator guide

6 Spreader plug

• Always replace when performing assembly work on the door window

7 Spreader pin

• Always replace when performing assembly work on the door window

8 Cover

9 Window regulator motor

• Removing and Installing, refer to => [ Window Regulator Motor ] Window Regulator Motor

10 Subframe

• Removing and Installing, refer to => [ Subframe ] Subframe

11 Front trim

• Removing, refer to => [ front trim ] Rear Door Window
