Bulb, License Plate Lamp Attached by Clips

Bulb, License Plate Lamp Attached by Clips

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the license plate lamp. Refer to => [ License Plate Lamp Attached by Clips ] License Plate Lamp Attached by Clips.

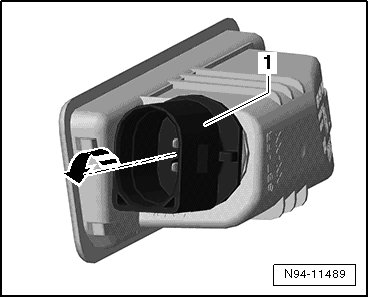

- Turn the bulb socket in - direction of arrow - and pull it out of the license plate lamp.






Glass base bulb 12V, W5W

Installation

Installation is performed in the reverse order of removal.
