Diagram 101/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

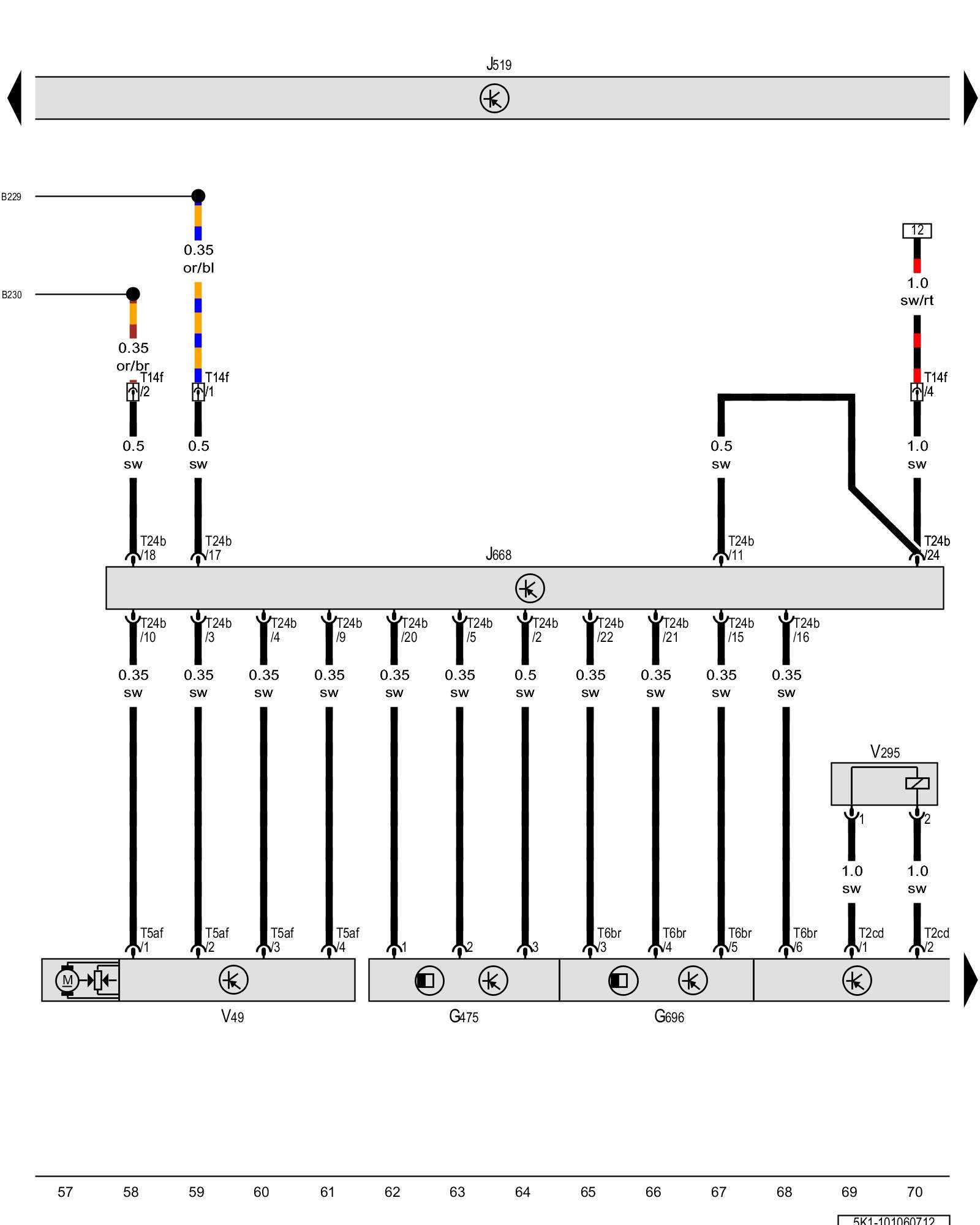

Right swivel module position sensor, Sensor for right variable headlamp positioning motor, Right headlamp power output stage, Right headlamp beam adjustment motor, Right low beam headlamp reflector motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G475 - Right swivel module position sensor

G696 - Sensor for right variable headlamp positioning motor, in the left headlamp, in the right headlamp

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J668 - Right headlamp power output stage, on the right headlamp

T2cd - Double connector

T5af - 5-pin connector

T6br - 6-pin connector

T14f - 14-pin connector, on the right headlamp

T24b - 24-pin connector

V49 - Right headlamp beam adjustment motor

V295 - Right low beam headlamp reflector motor

(B229) - High bus connection (in interior wiring harness)

(B230) - Low bus connection (in interior wiring harness)

Previous Diagram 101/5 (Tracks 43-56)

Next Diagram 101/7 (Tracks 71-84)
