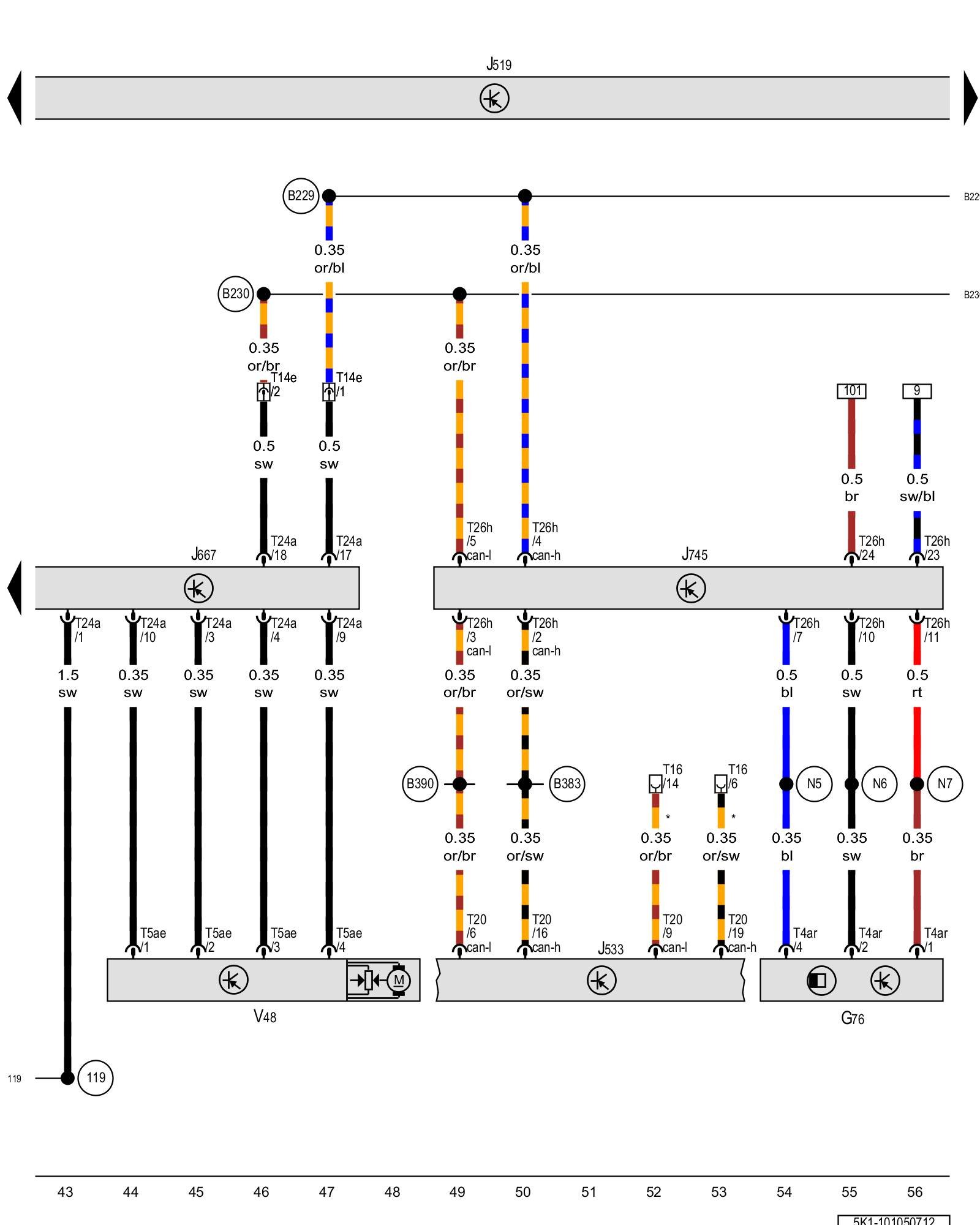

Diagram 101/5 (Tracks 43-56)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Left rear level control system sensor, Data bus on board diagnostic interface, Left headlamp power output stage, Cornering lamp and headlamp range control module, Left headlamp beam adjustment motor
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
G76 - Left rear level control system sensor Electronic Damping Component Views LR Level Control System Sensor -G76-
J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules
J533 - Data bus on board diagnostic interface, in the left footwell, near the center console Control modules in front part of vehicle - Overview of Control Modules
J667 - Left headlamp power output stage, on the left headlamp
J745 - Cornering lamp and headlamp range control module, on the right glove compartment Control modules in front part of vehicle - Overview of Control Modules
T4ar - 4-pin connector
T5ae - 5-pin connector
T14e - 14-pin connector, on the left headlamp
T16 - 16-pin connector, under the instrument panel, left
T20 - 20-pin connector
T24a - 24-pin connector
T26h - 26-pin connector
V48 - Left headlamp beam adjustment motor
(119) - Ground connection 1 (in headlamp wiring harness)
(B229) - High bus connection (in interior wiring harness)
(B230) - Low bus connection (in interior wiring harness)
(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)
(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)
(N5) - Connection 4 (in headlamp range control wiring harness)
(N6) - Connection 5 (in headlamp range control wiring harness)
(N7) - Connection 6 (in headlamp range control wiring harness)
* - Diagnostic connector
