Diagram 101/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

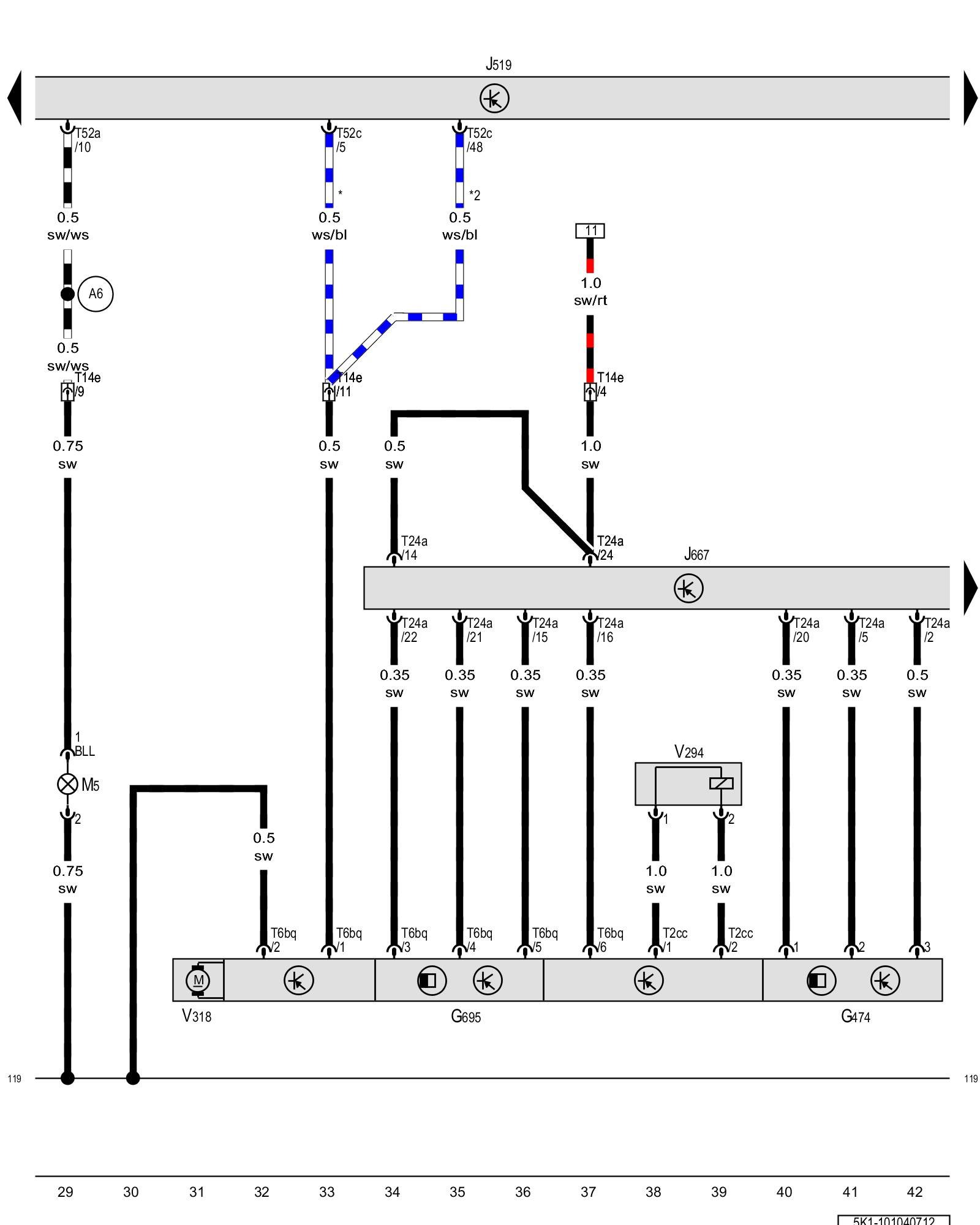

Left swivel module position sensor, Sensor for left variable headlamp positioning motor, Left headlamp power output stage, Left front turn signal bulb, Left low beam headlamp reflector motor, Left adaptive cornering lamp motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G474 - Left swivel module position sensor

G695 - Sensor for left variable headlamp positioning motor, in the left headlamp

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J667 - Left headlamp power output stage, on the left headlamp

M5 - Left front turn signal bulb

T2cc - Double connector

T6bq - 6-pin connector

T14e - 14-pin connector, on the left headlamp

T24a - 24-pin connector

T52a - 52-pin connector

T52c - 52-pin connector

V294 - Left low beam headlamp reflector motor

V318 - Left adaptive cornering lamp motor

(119) - Ground connection 1 (in headlamp wiring harness)

(A6) - Left turn signal positive connection (in instrument panel wiring harness)

* - from May 2011

*2 - through April 2011
