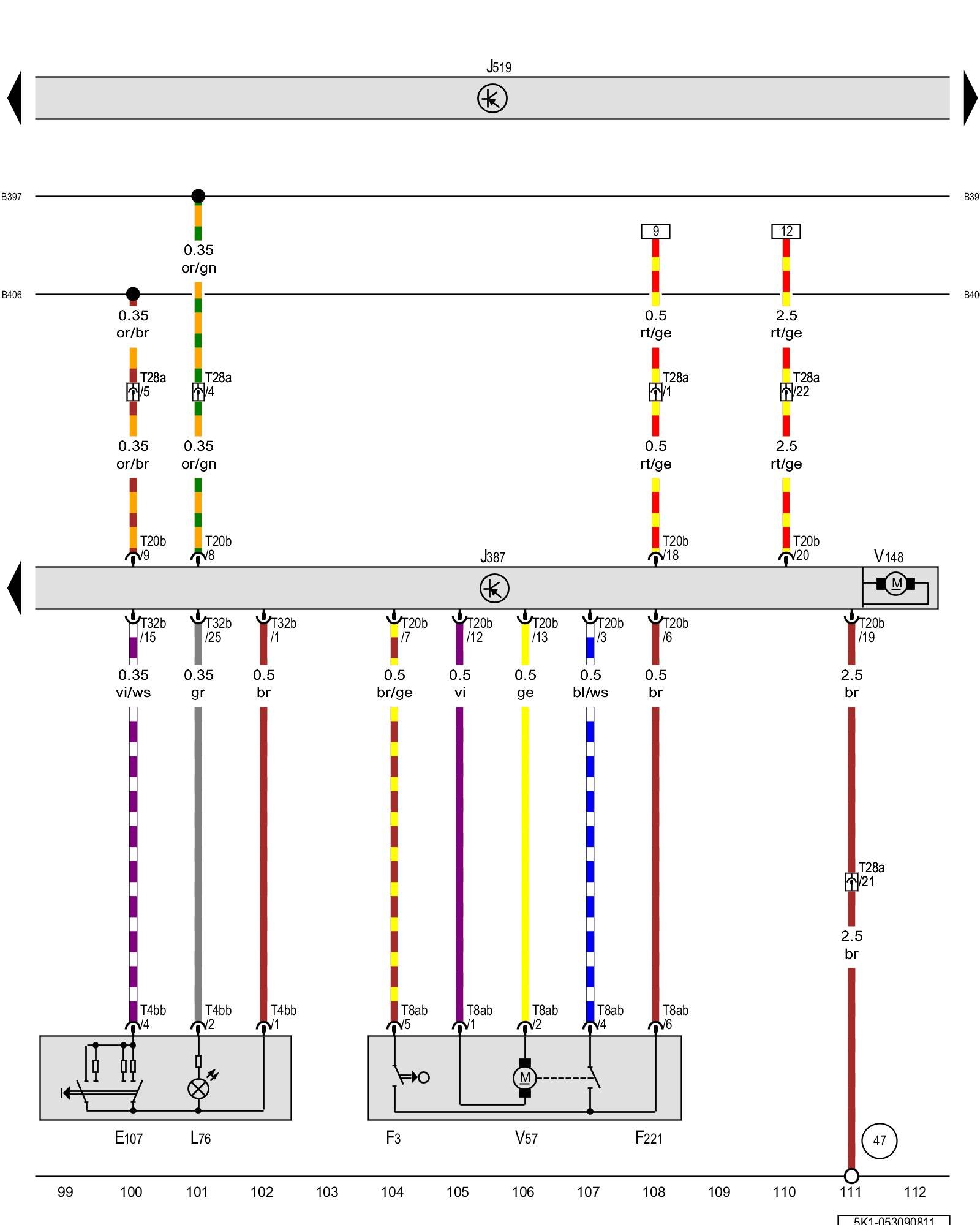

Diagram 53/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger door window regulator switch, Front passenger door contact switch, Front passenger central locking lock unit, Front passenger door central locking system motor, Front passenger window regulator motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front passenger door window regulator switch Front Pass Door window Regulator Switch -E107-

F3 - Front passenger door contact switch Locations Front Pass Door Contact Switch -F3- / Central Locking Lock Unit -F221- / Central Locking System Motor -V57-

F221 - Front passenger central locking lock unit Locations Front Pass Door Contact Switch -F3- / Central Locking Lock Unit -F221- / Central Locking System Motor -V57-

J387 - Front passenger door control module Control modules in front part of vehicle - Overview of Control Modules Front Pass Door Control Module -J387-

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

L76 - Push button illumination bulb

T4bb - 4-pin connector

T8ab - 8-pin connector

T20b - 20-pin connector

T28a - 28-pin connector, in the connector station, right A-pillar Overview of connector stations and connectors

T32b - 32-pin connector

V57 - Front passenger door central locking system motor Locations Front Pass Door Contact Switch -F3- / Central Locking Lock Unit -F221- / Central Locking System Motor -V57-

V148 - Front passenger window regulator motor

(47) - Ground connection in right front footwell

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)
