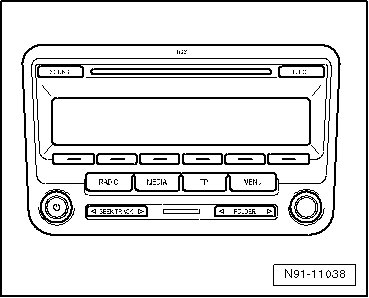

RCD 310 Radio






• Before troubleshooting or servicing, the technicians must be familiar with the function and operation of the radio unit.

• For additional information, refer to the Operating instructions

• Antitheft coding is equipped with a protection code number. Refer to => [ RCD 310 Sound System, Electronic Antitheft System ] RCD 310 Sound System, Electronic Antitheft System

• When performing service work or fault finding, use Vehicle diagnostic tester Guided Fault Finding and.

• When the battery is reconnected, check any affected system or component, radio, clock, comfort electrical connection according to the repair information and/or the operating instructions.

General Information

The RCD 310 radio unit has the following features, among others:

• 4 speaker channels with 20 watts each

• Monochrome display

• Control for an external 6-CD changer

• Telephone control (hands free)

• Externally connectable sound amplifier

• Digital audio broadcasting radio possible

The RCD 310 radio consists of the radio and the front and rear speakers.

The CD drive, which is integrated inside the radio, can play the following CD formats:

• CD-R

• CD-RW

• MP3

• wma

• CDs that contain computer data and also music cannot be played.

The antenna is installed in rear side windows. The antenna system also includes the diversity function integrated inside the radio.
