Fuses (SC) On Fuse Panel C, Instrument Panel
Fuses

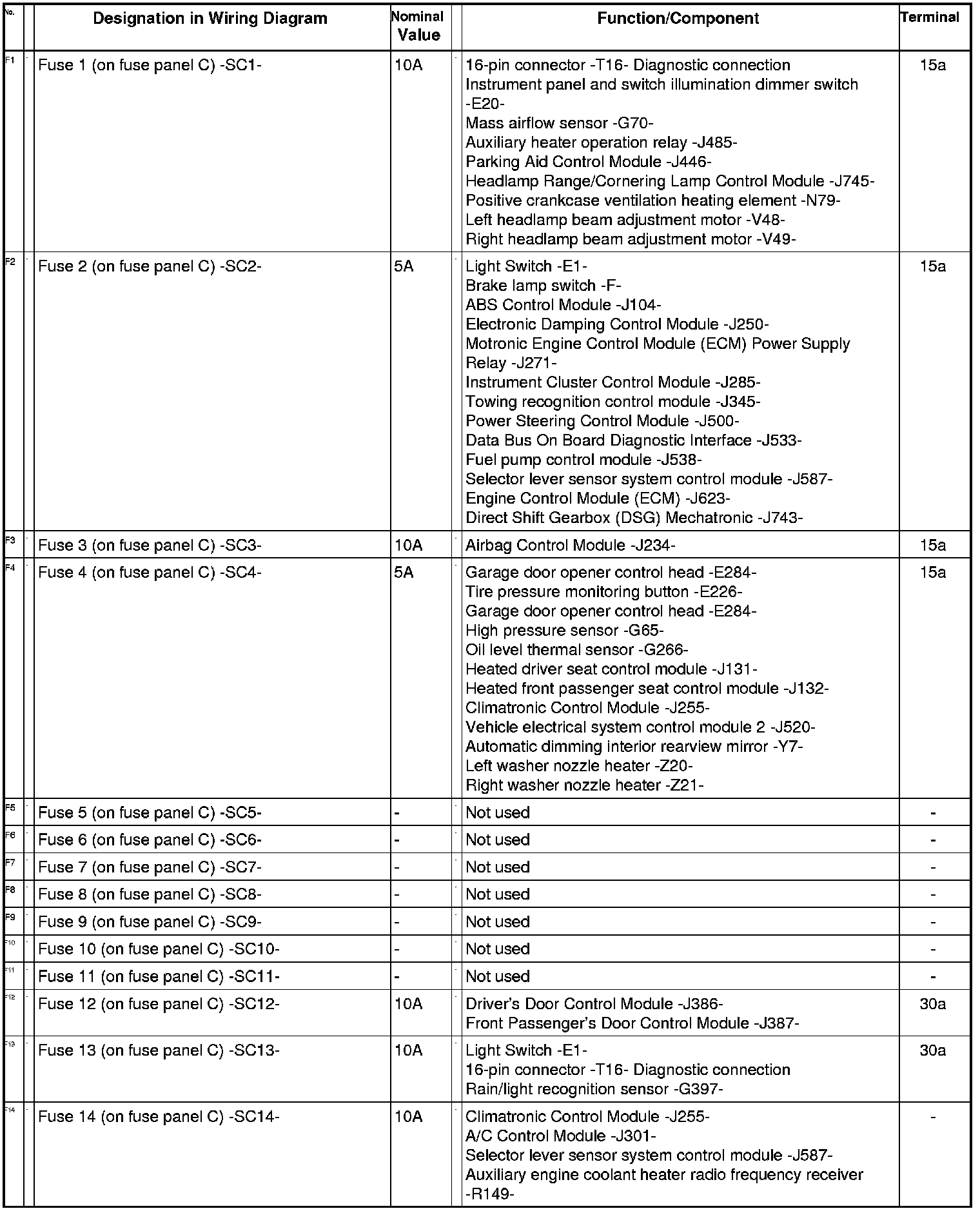

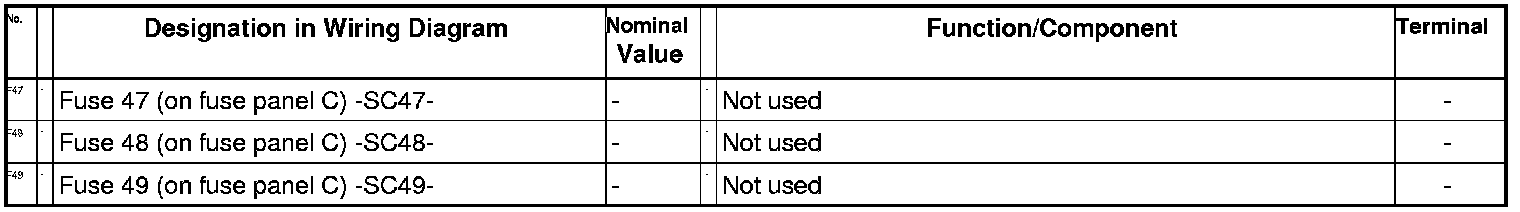

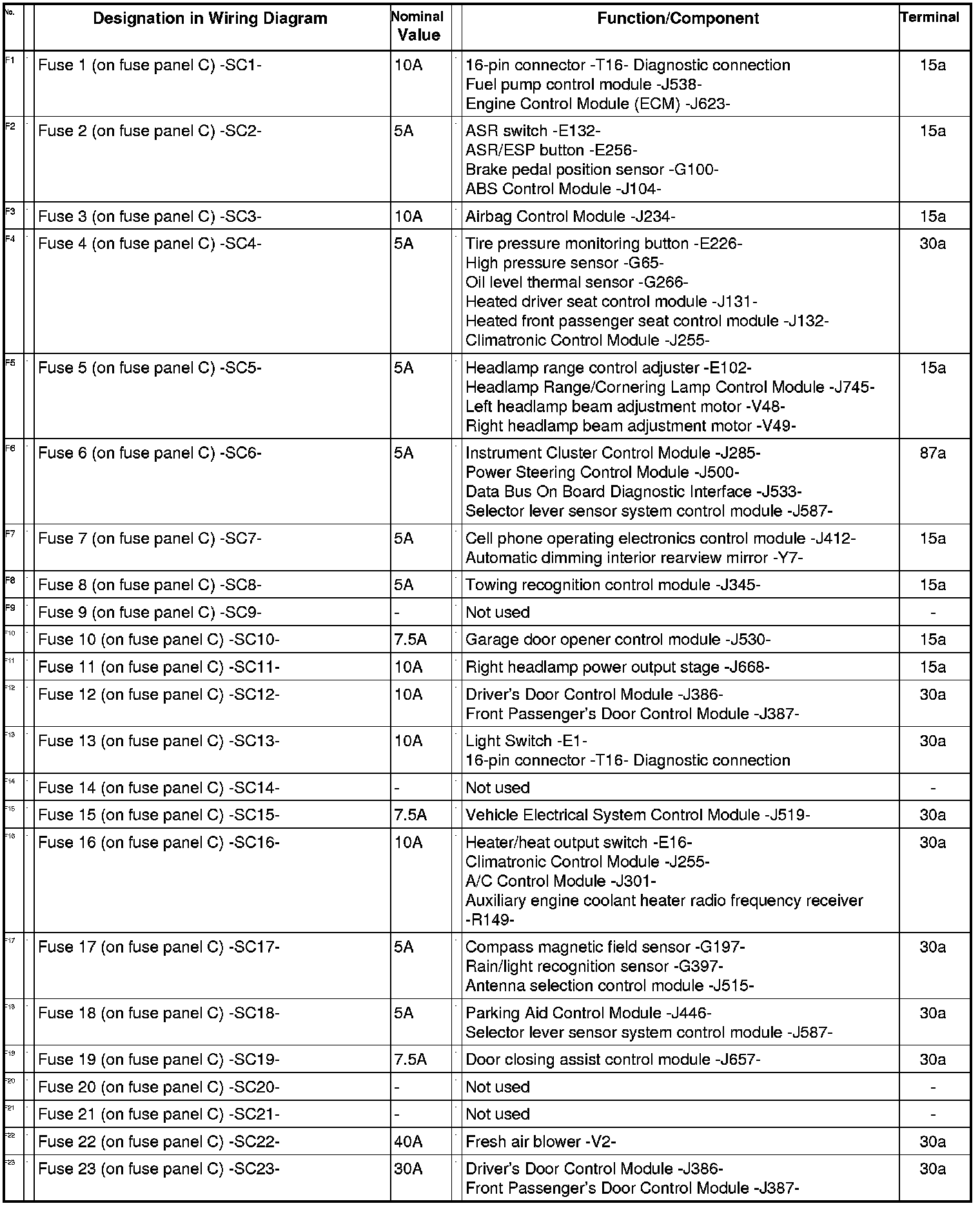

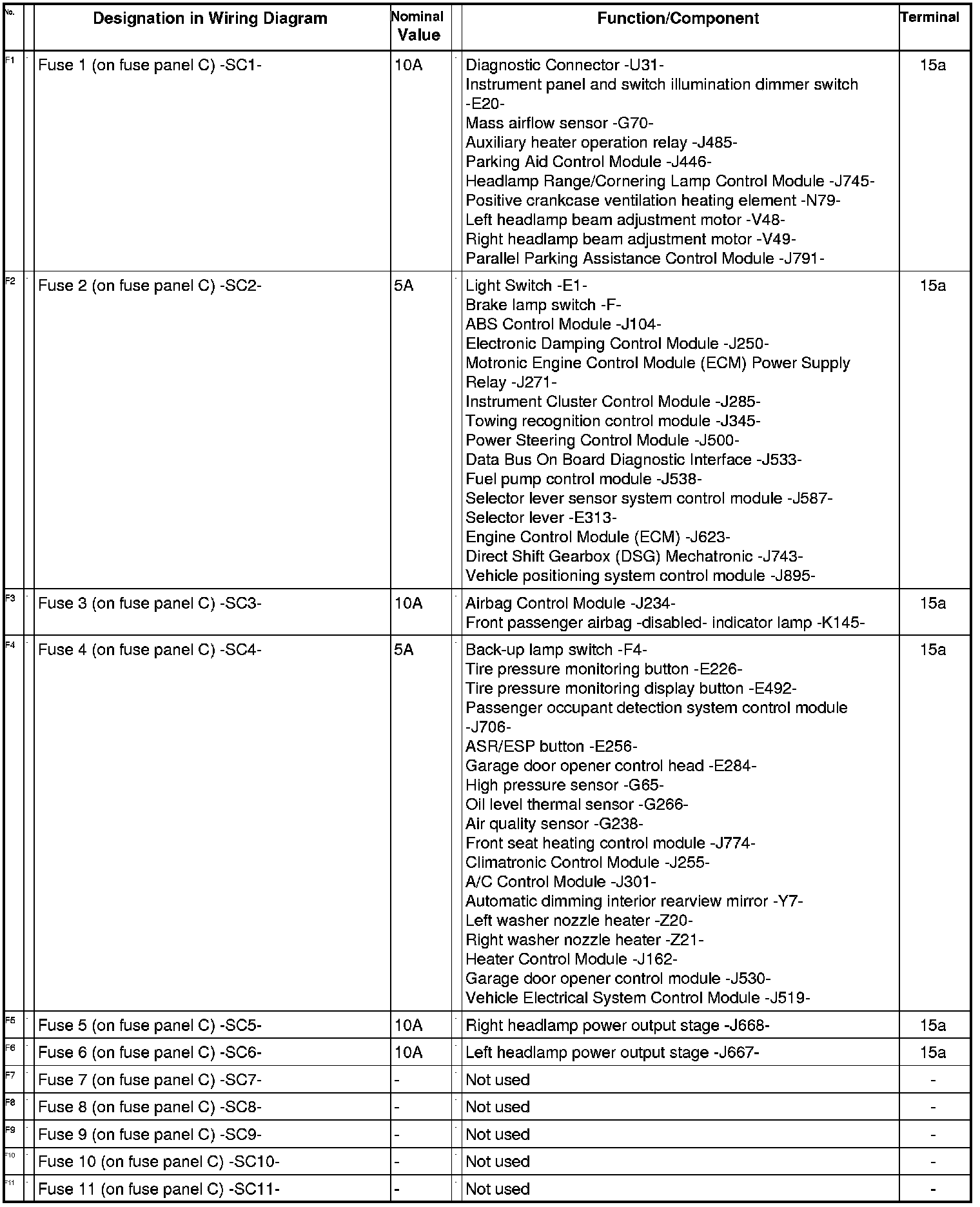

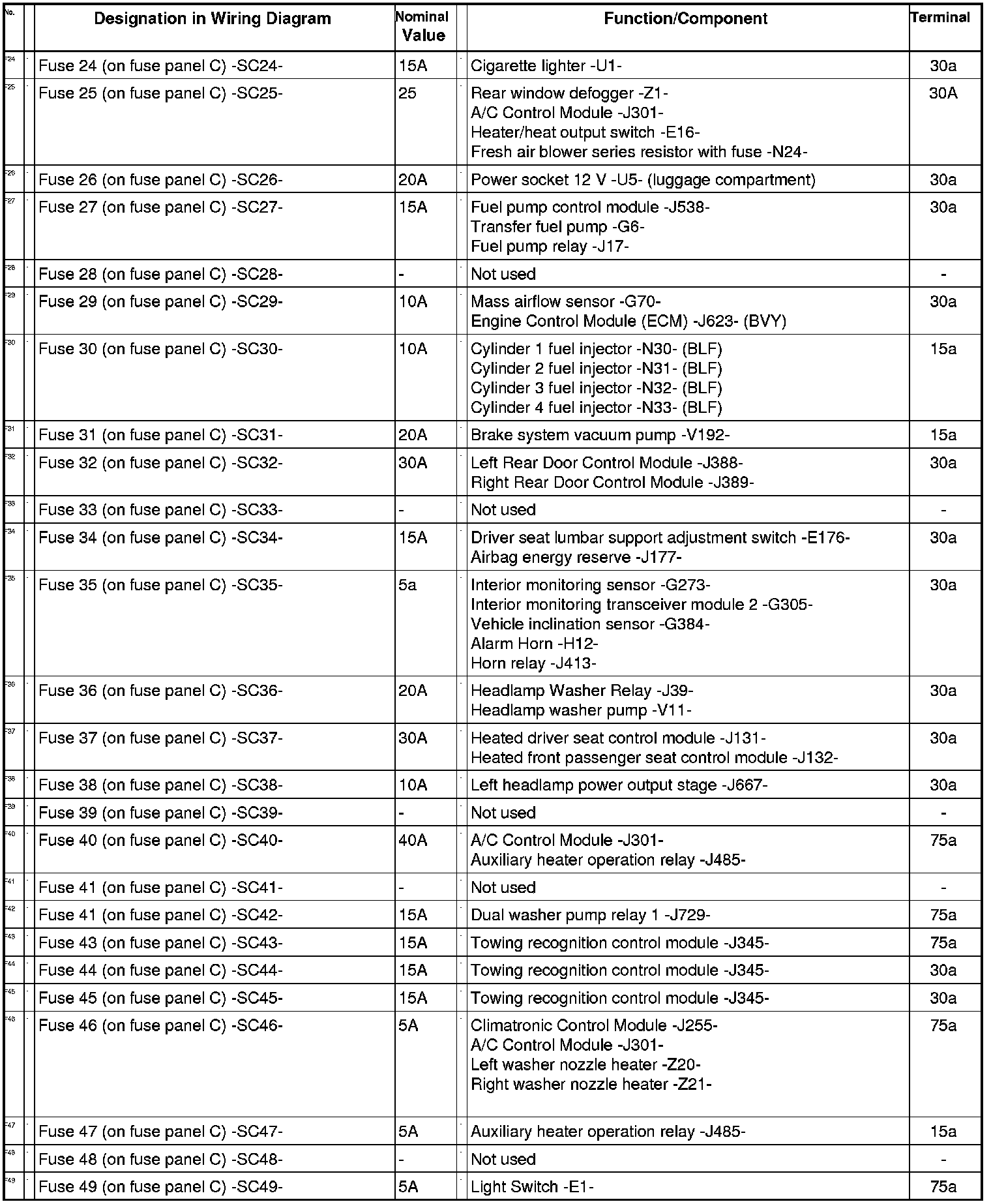

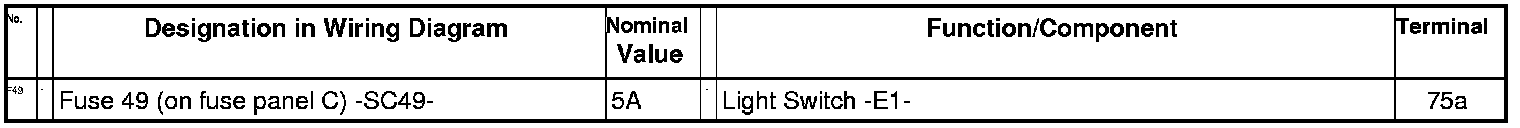

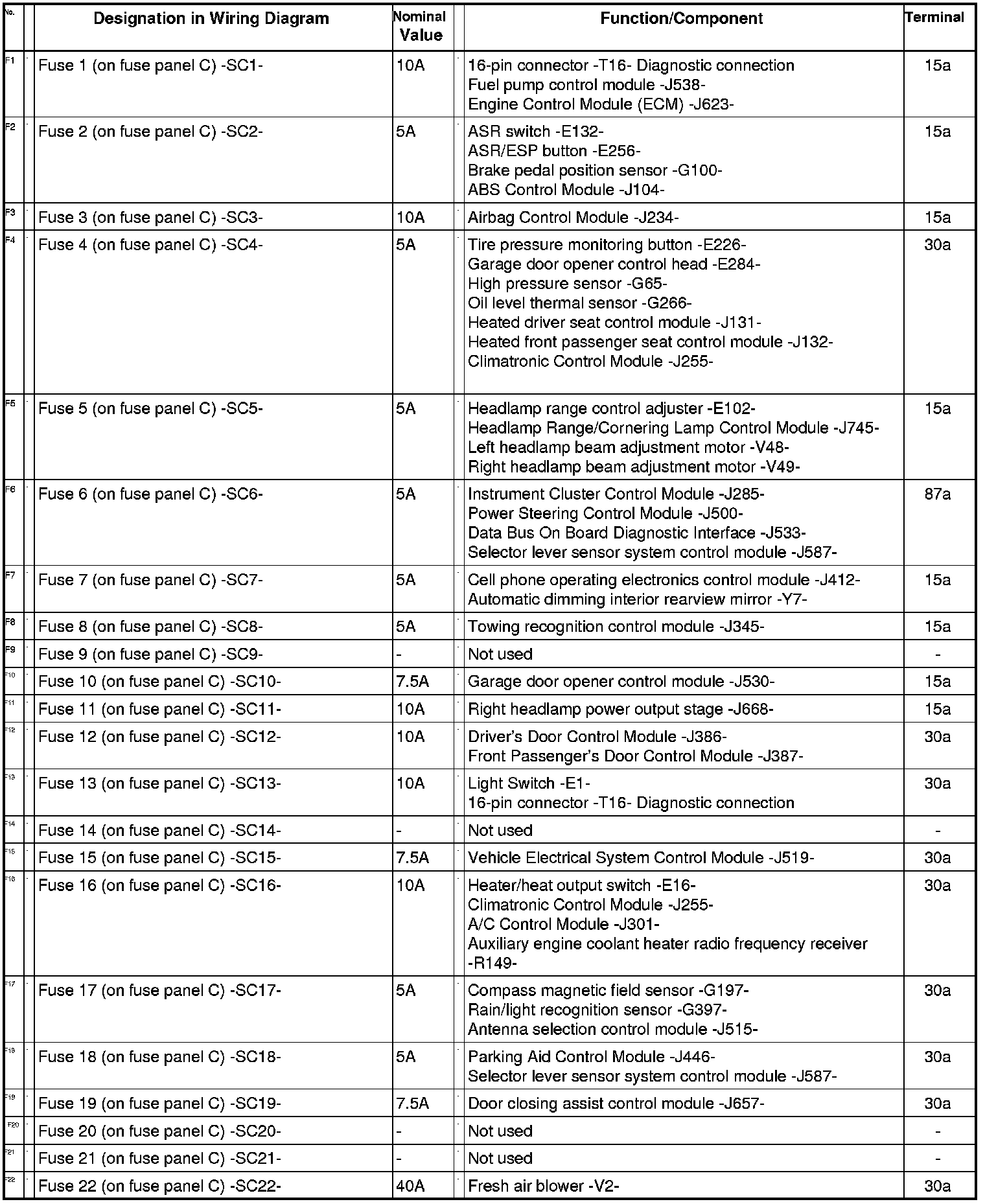

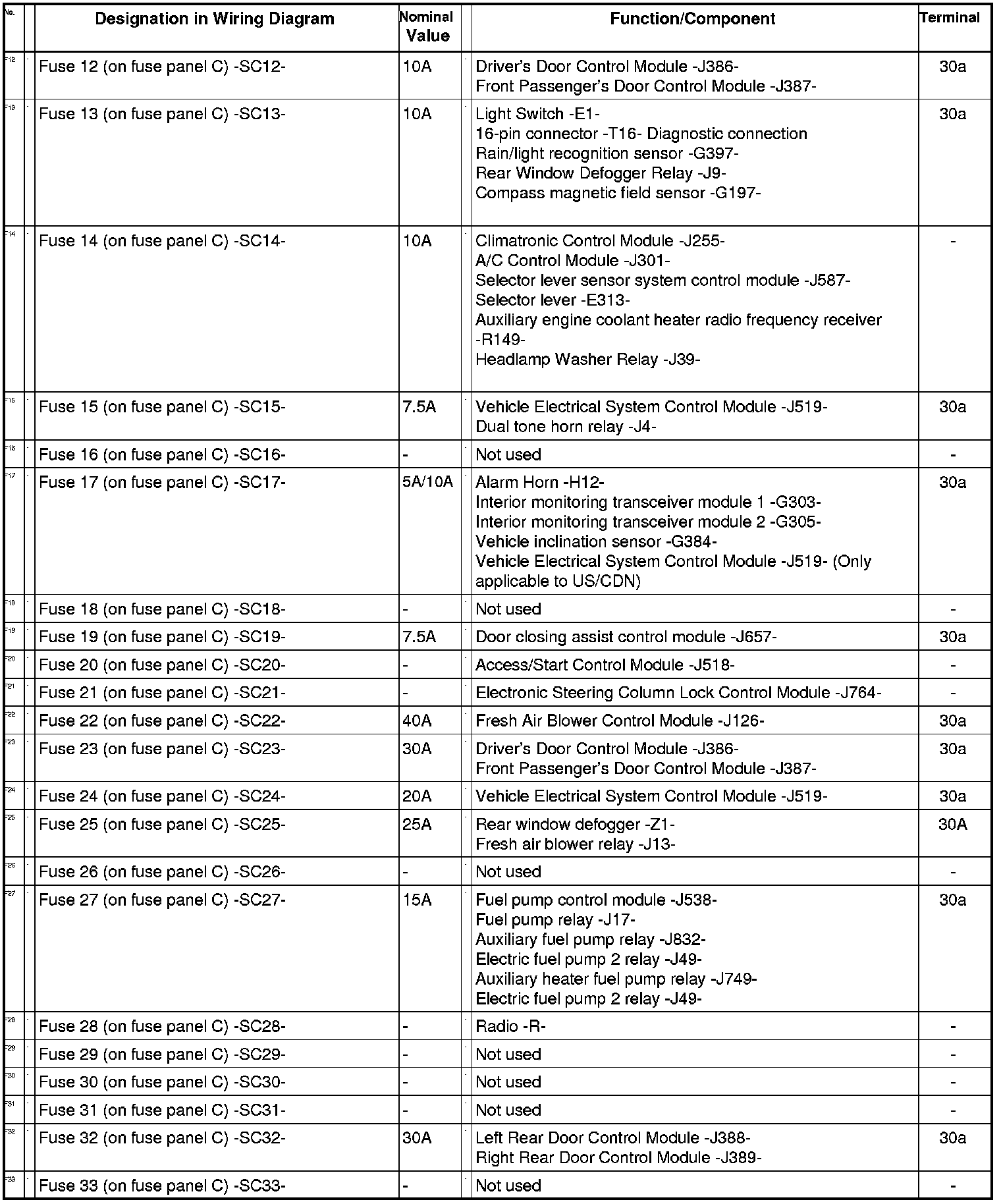

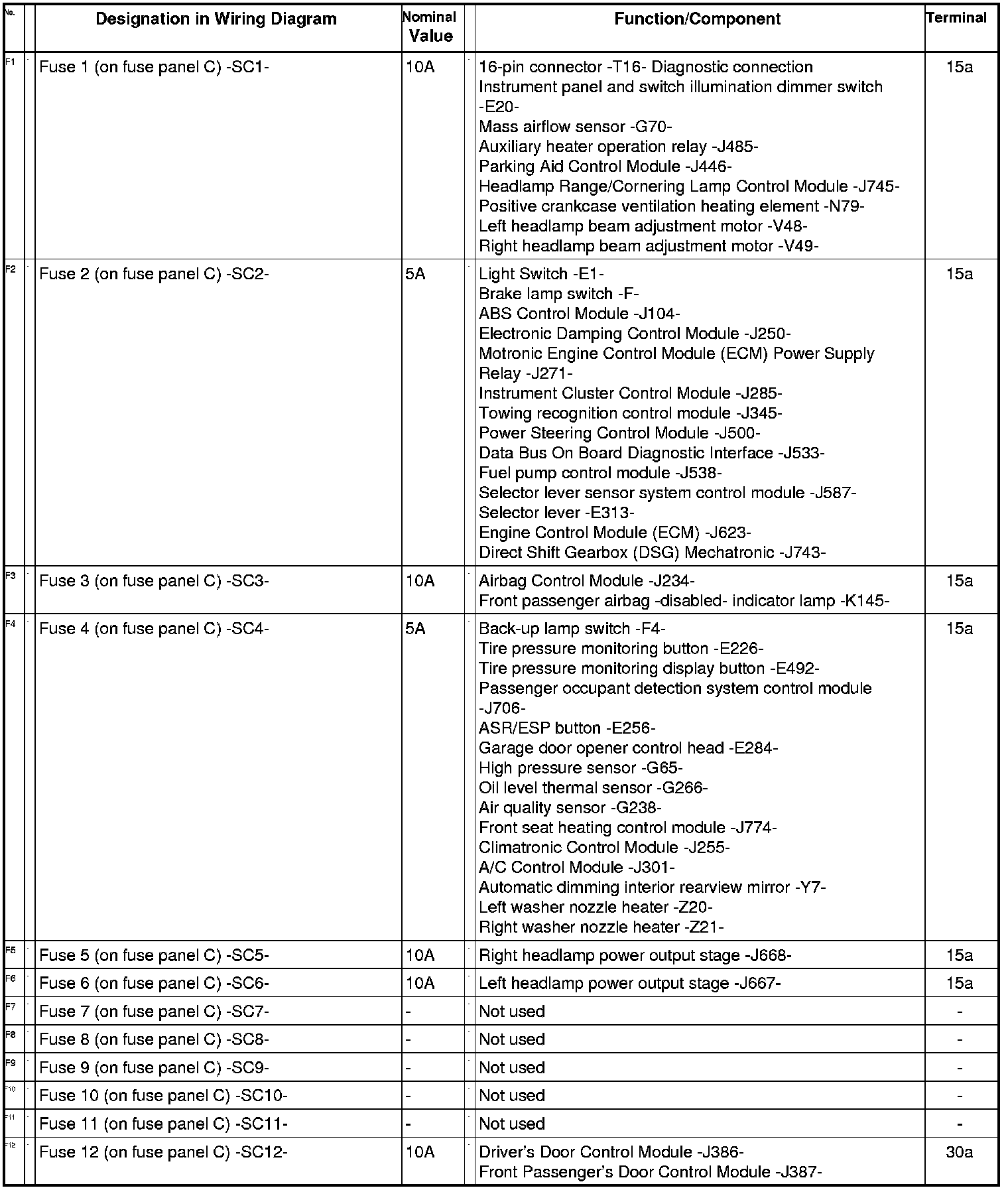

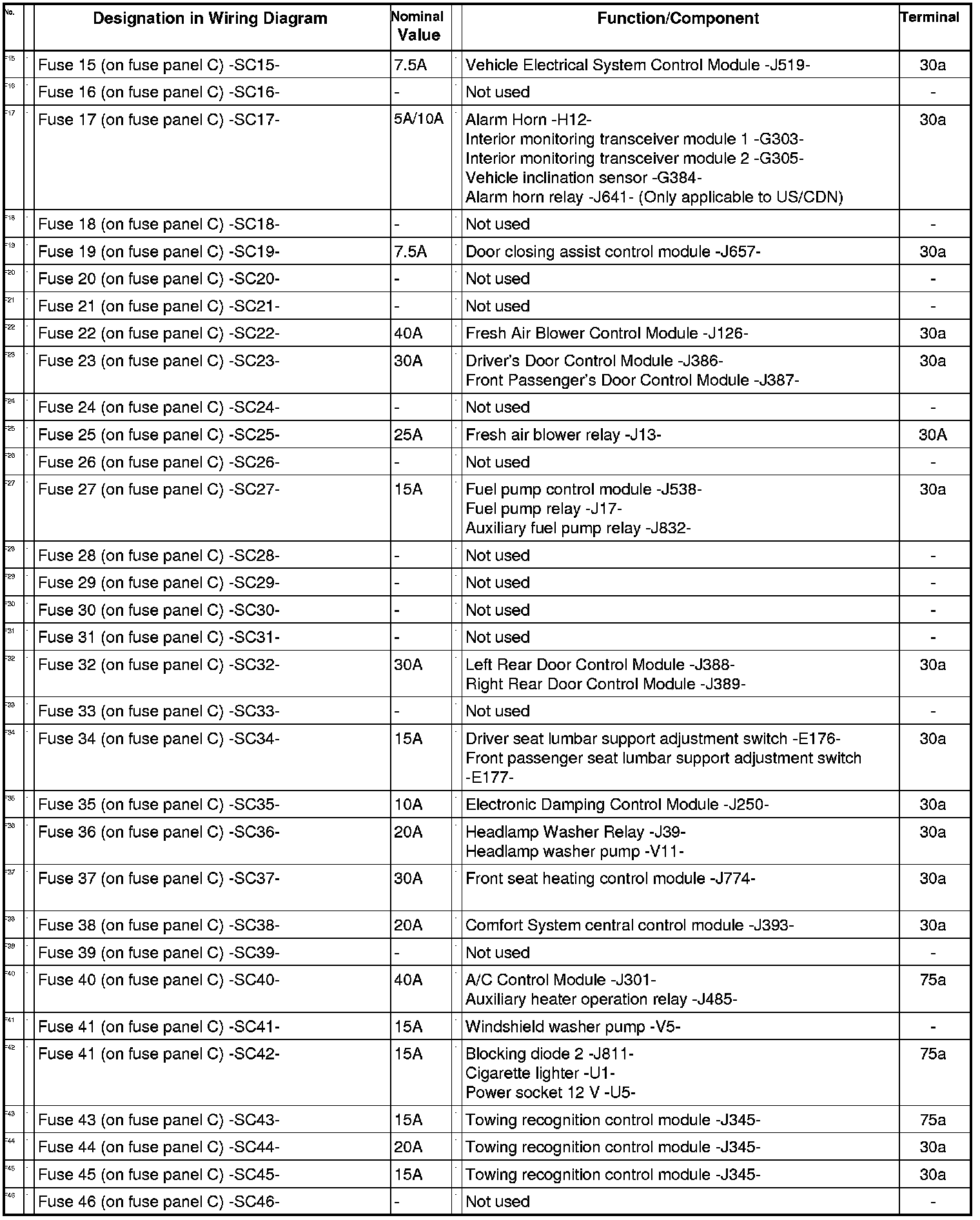

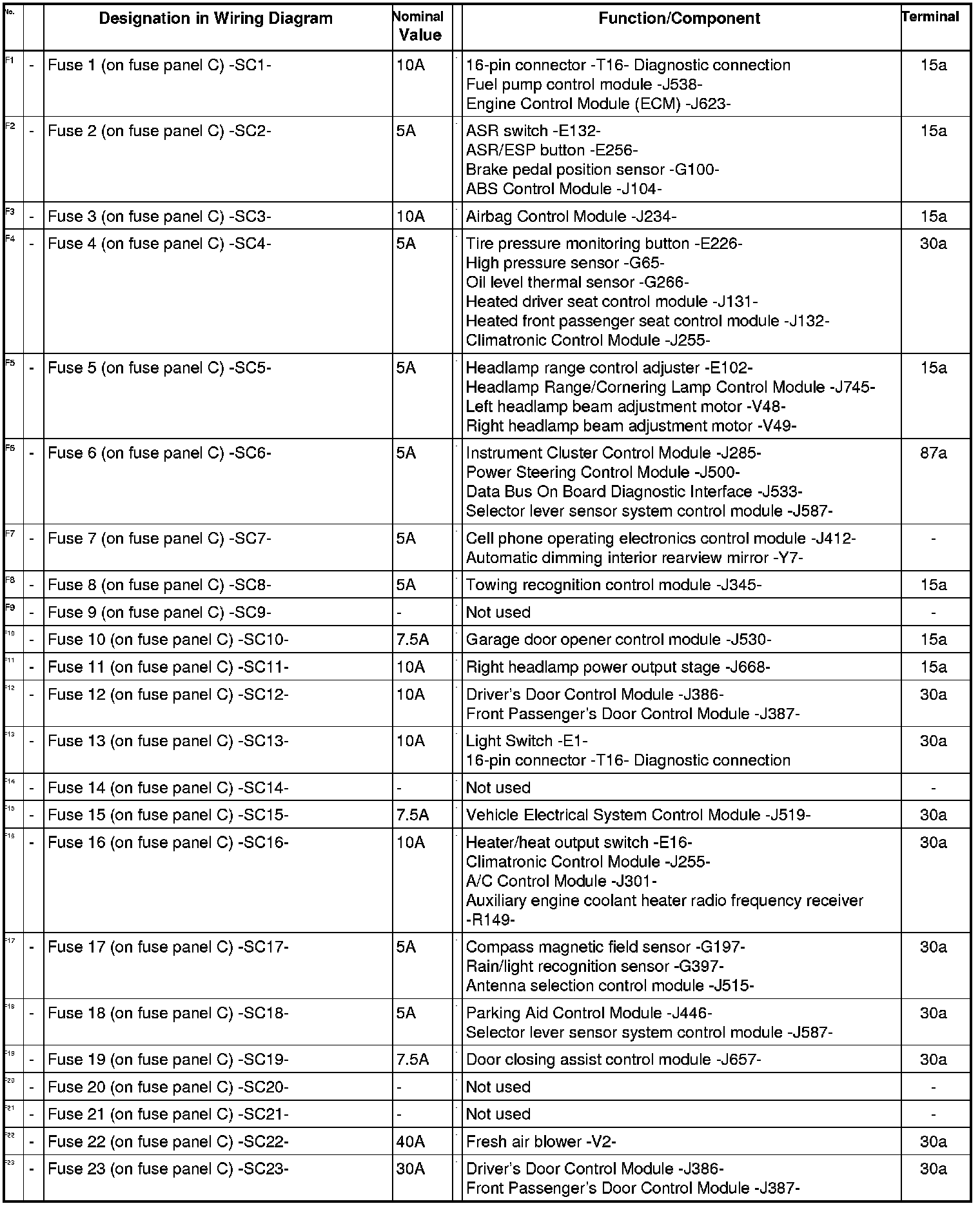

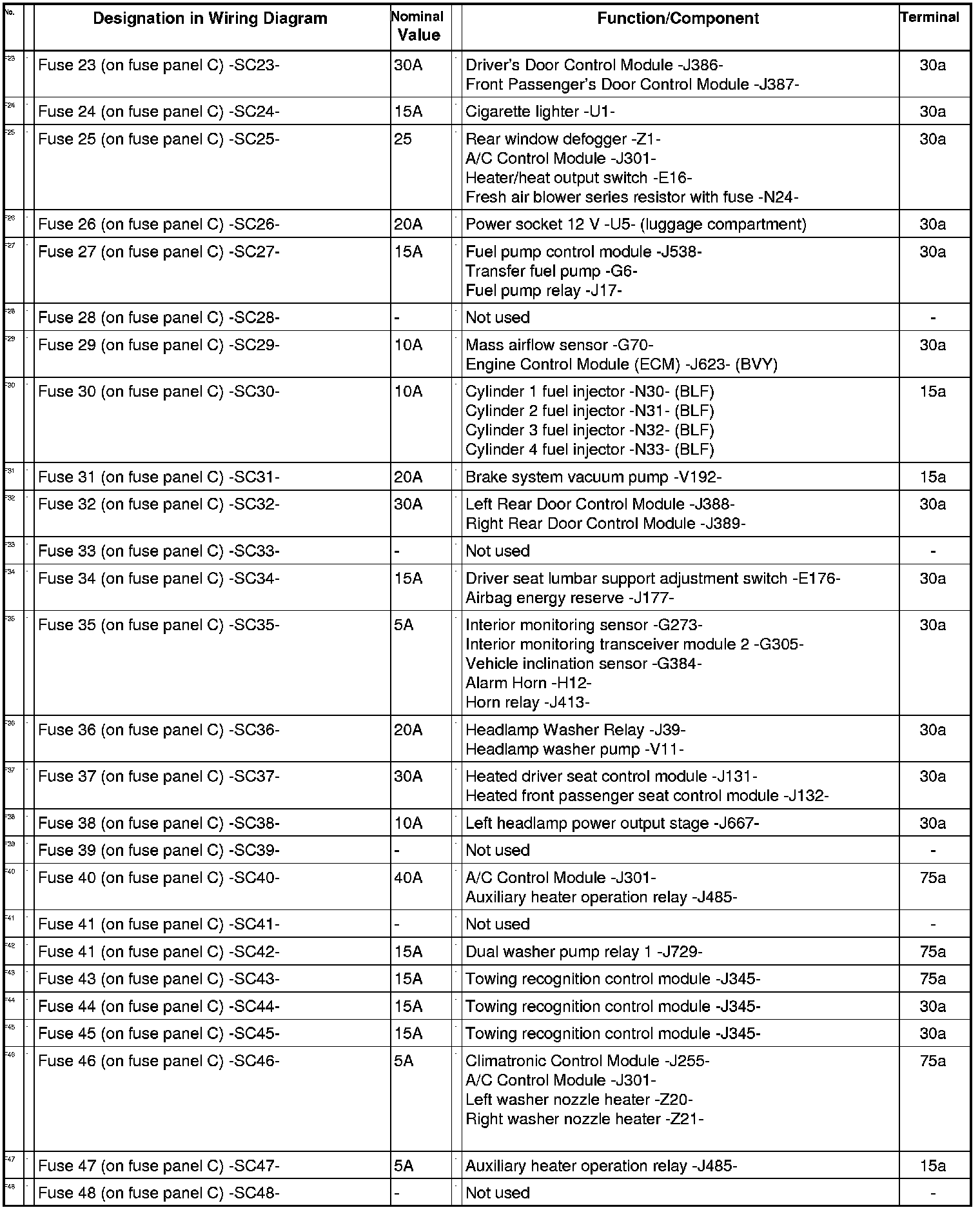

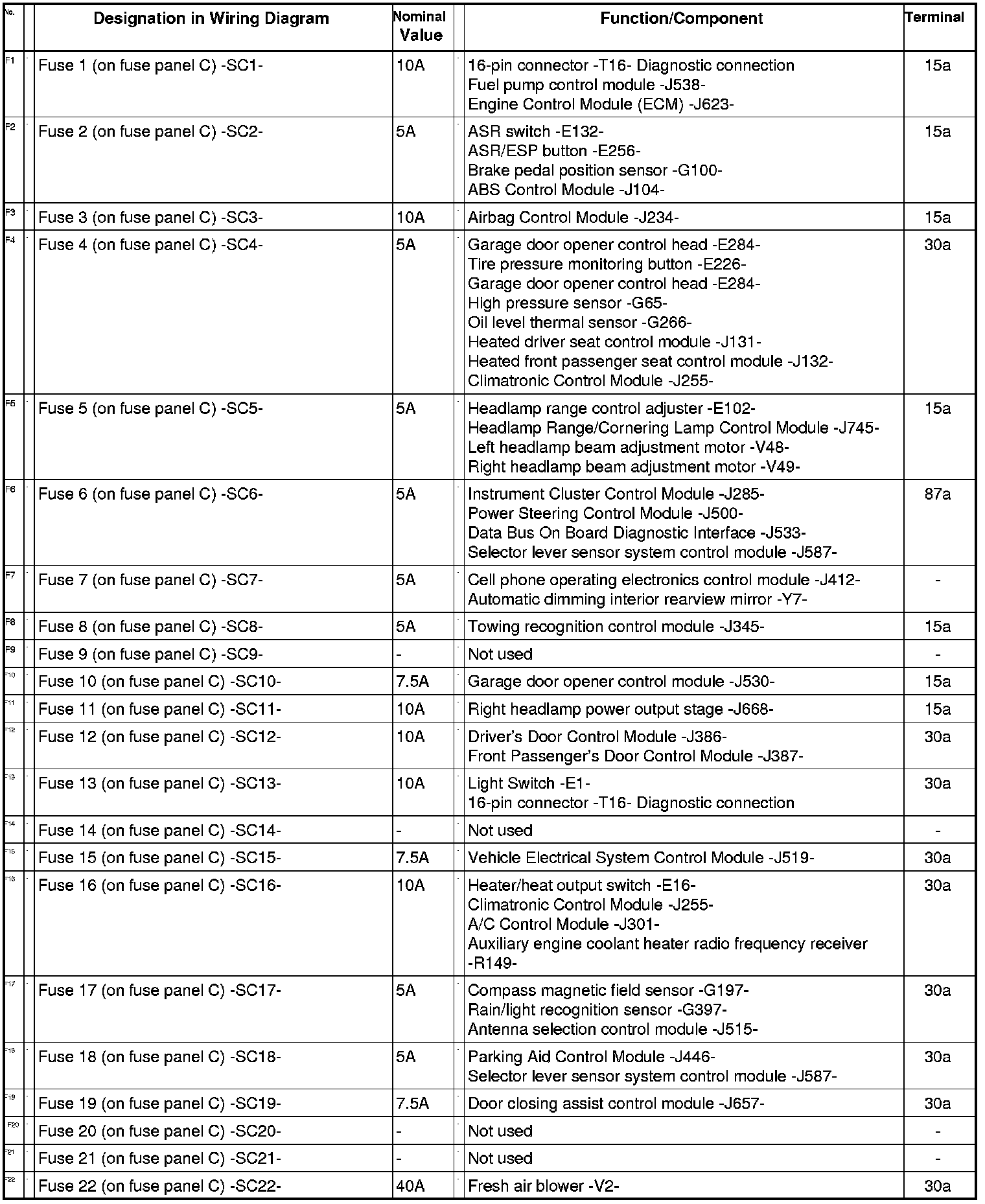

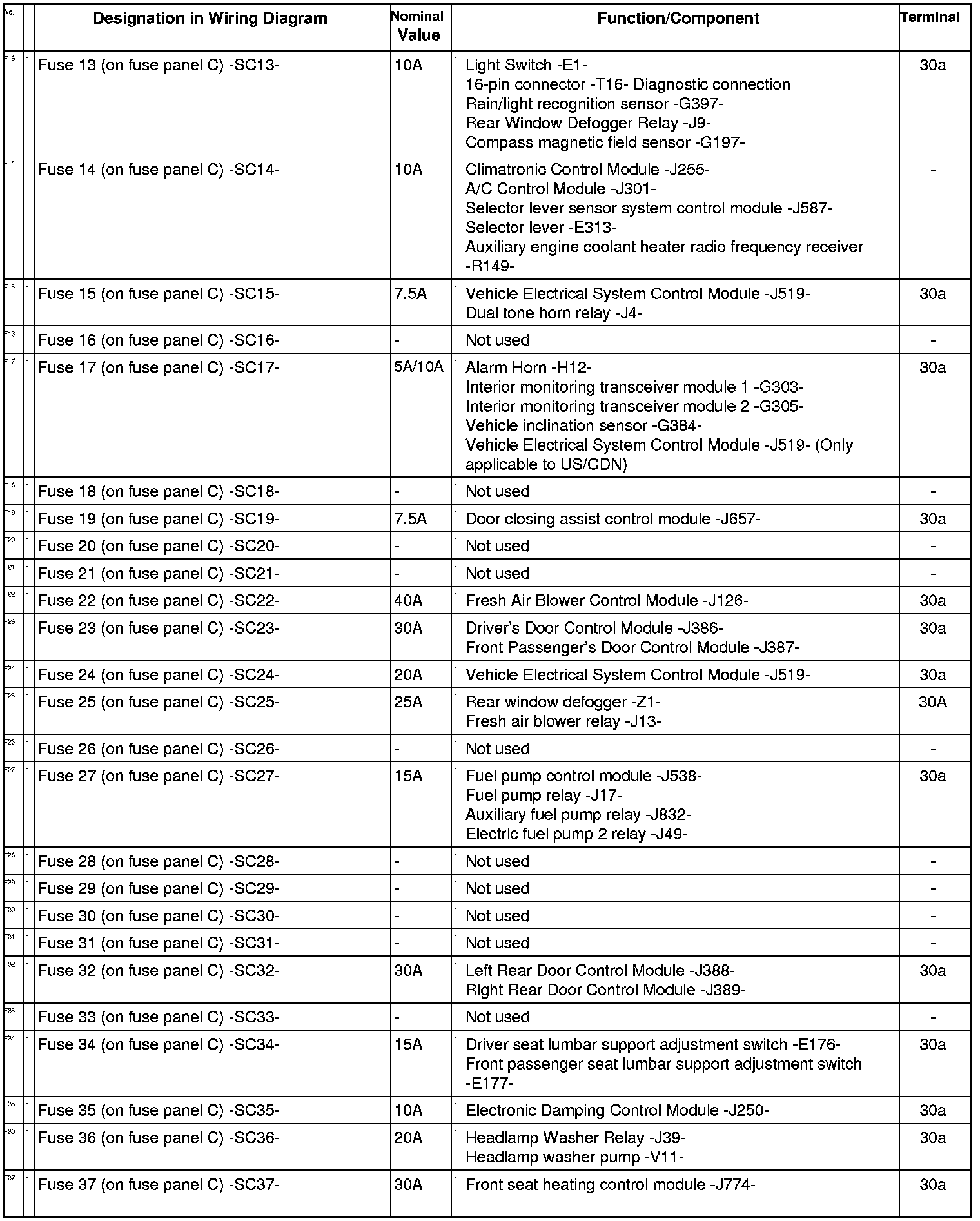

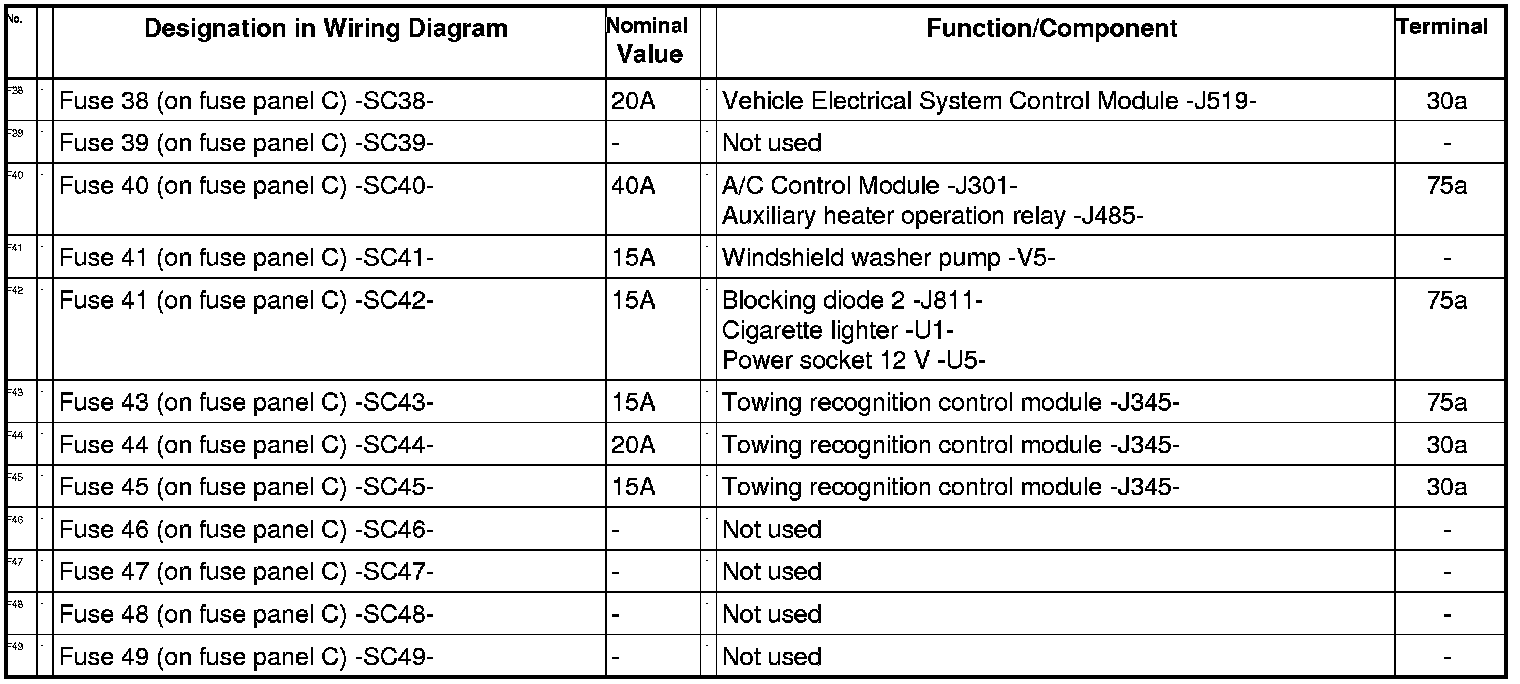

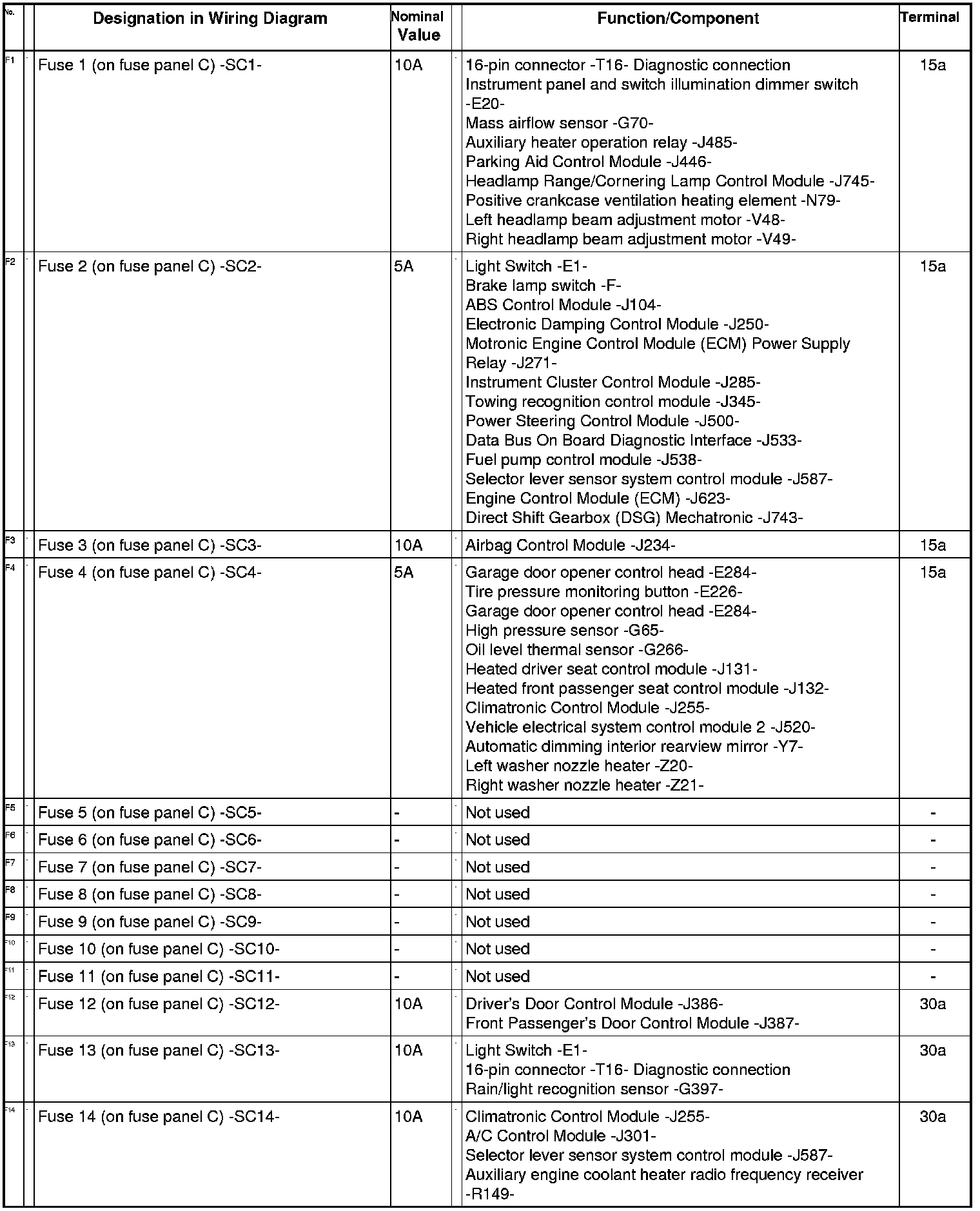

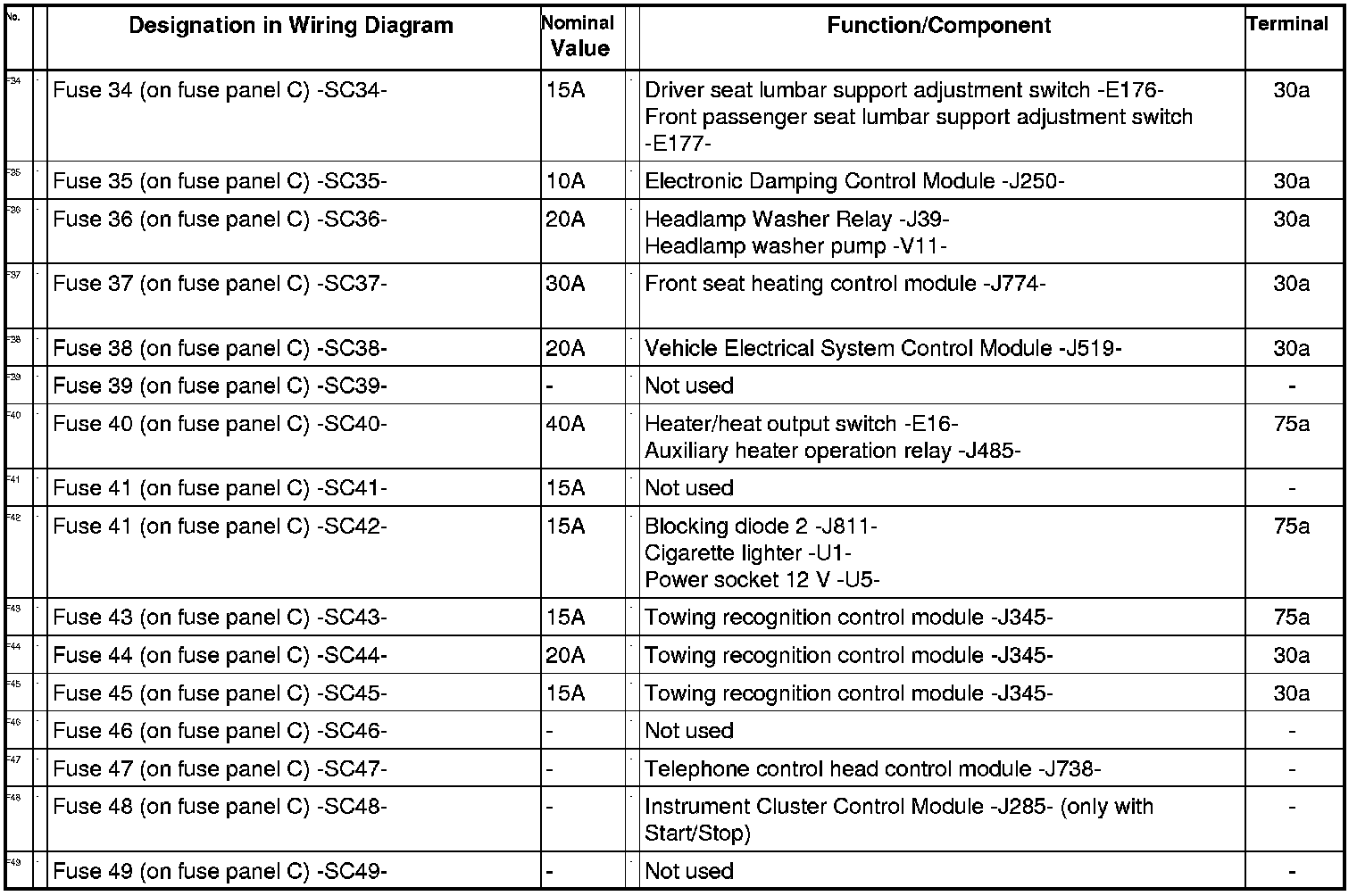

Fuses (SC) on fuse panel C, instrument panel
Fuse Colors
30 A - light green
25 A - natural (white)
20 A - yellow
15 A - light blue
10 A - red
7,5 A - brown
5 A - light brown
3 A - purple
Fuse Arrangements Electronics Box Low, from January 2006
Fuse Arrangements Electronics Box Low, from May 2006
Fuse Arrangements Electronics Box Low, from May 2008
Fuse Arrangements Electronics Box Low, from May 2009
Fuse Arrangement, E-Box Low, from November 2010
Fuse Arrangements Electronics Box High, from January 2006
Fuse Arrangements Electronics Box High, from May 2006
Fuse Arrangements Electronics Box High, from May 2008
