Brake System - Mechanical Components - Fastener Tightening Specifications

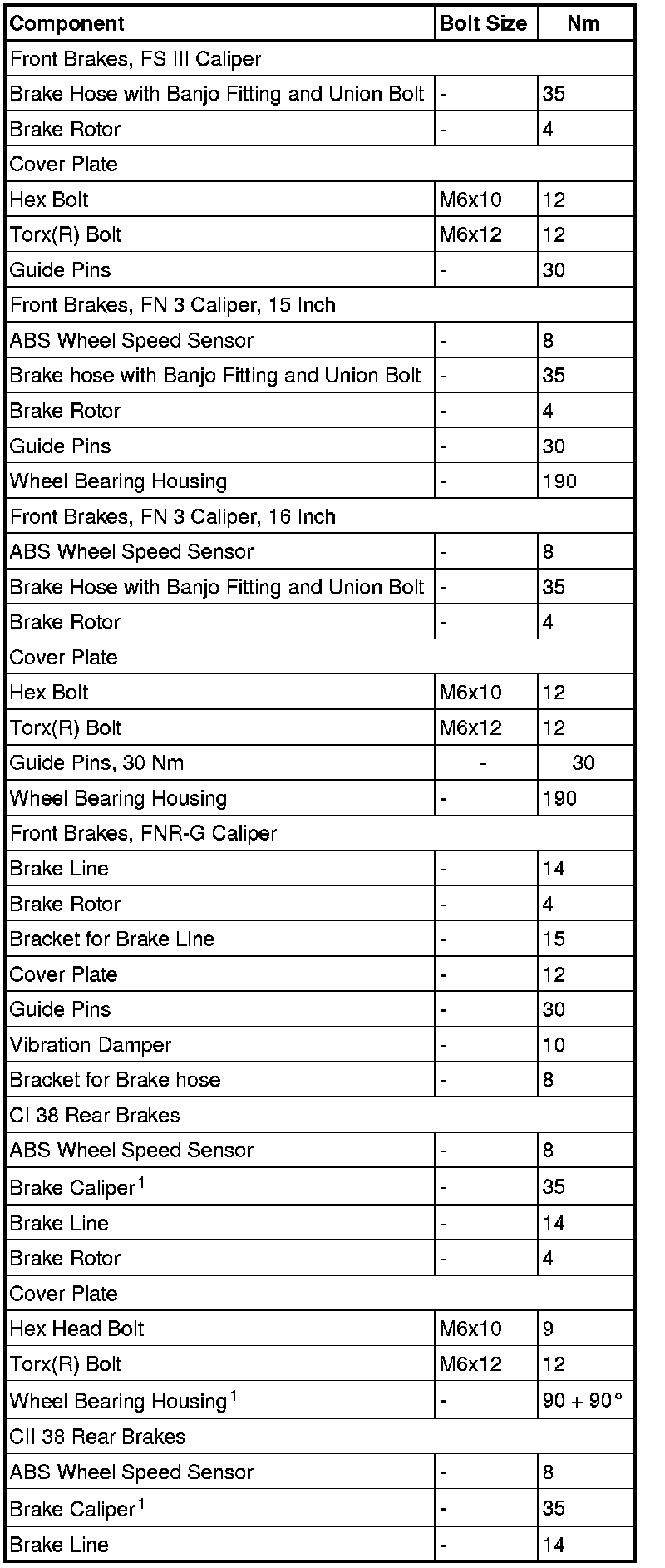

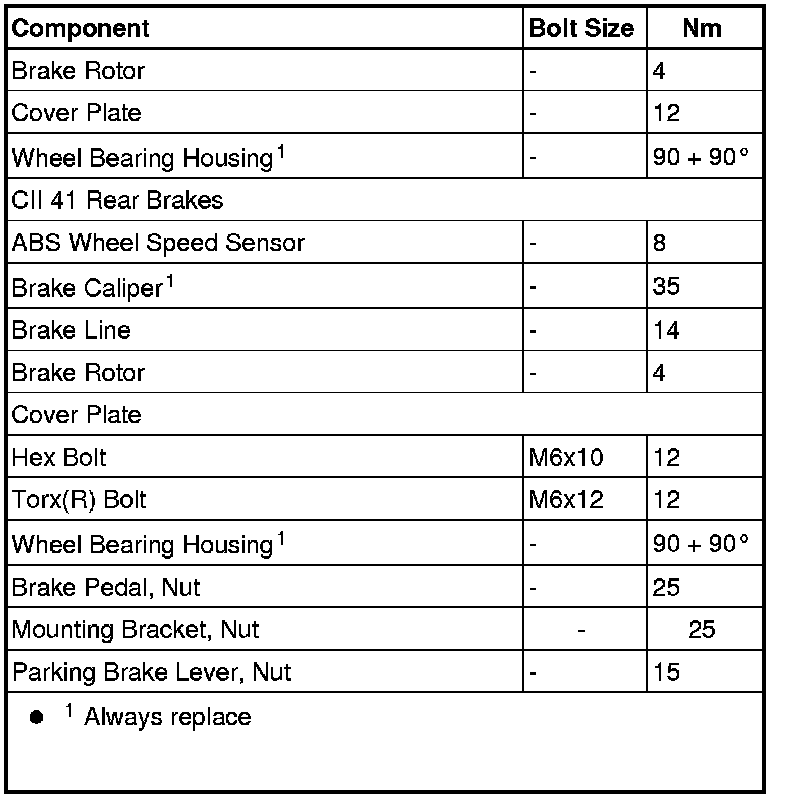

Fastener Tightening Specifications










Front Brakes, FNR-G Caliper Tightening specification for the ribbed bolts

• Tighten the ribbed bolts in 2 steps.
