Hazard Warning Switch: Service and Repair

Emergency Flasher Switch (E229)

Removal

- Turn off the ignition and all electrical consumers.

- Remove center vent.

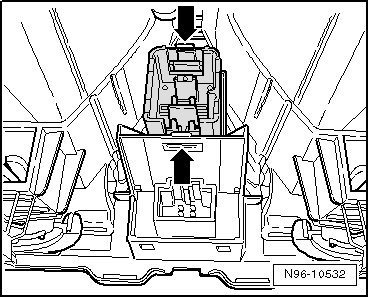

- Disconnect connectors - arrows -.






- Disengage retaining tabs - arrows - and remove Emergency Flasher Switch.






Installation

Installation is performed in the reverse order of removal.
