NOX Sensor Control Module -J583-







Control modules in rear part of vehicle

NOX Sensor Control Module -J583-

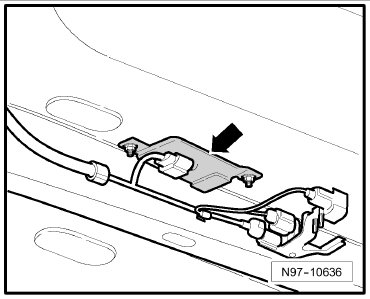

Component Location:


On right front of vehicle floor -Arrow-
